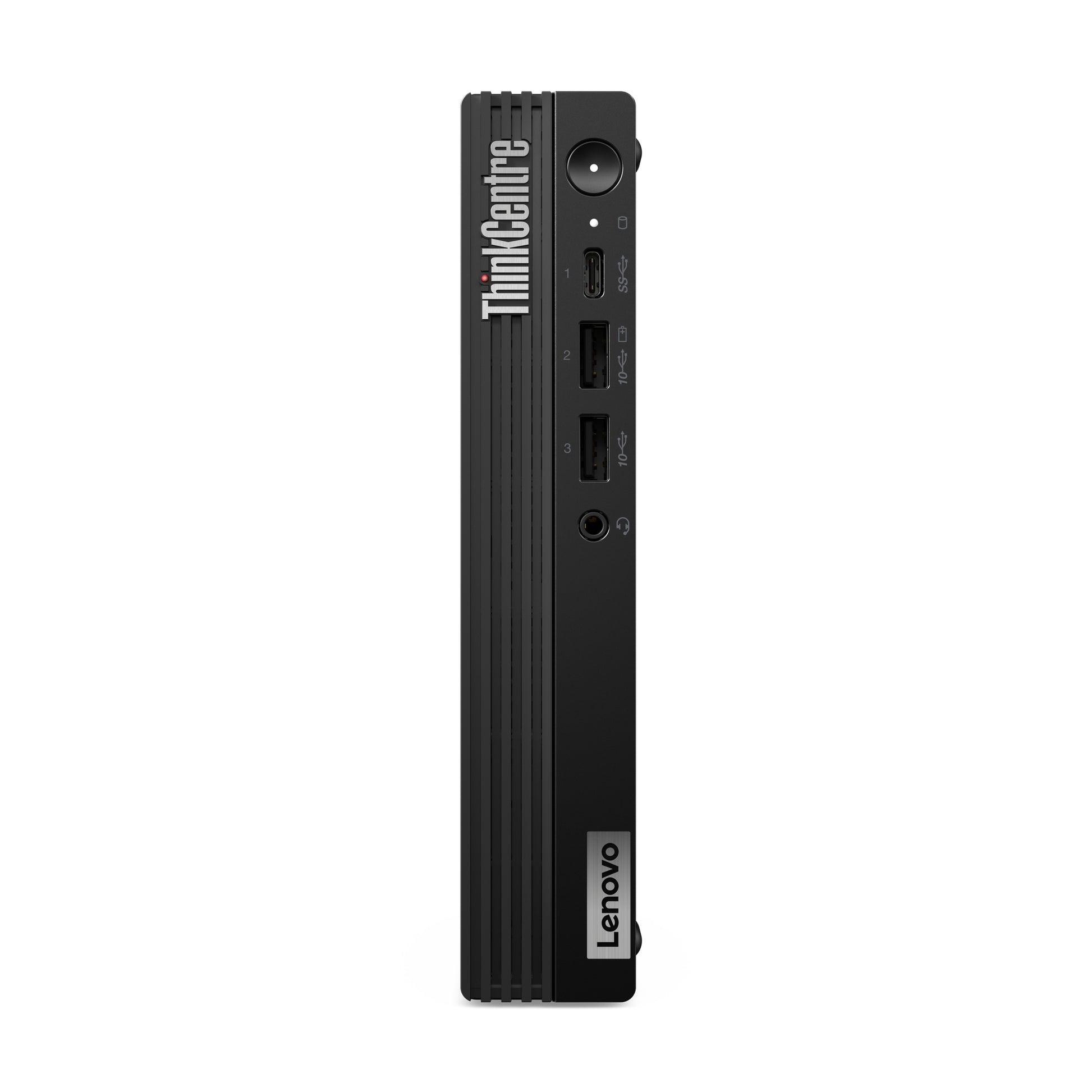

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i5 i5-14400T 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black

Processor

• Processor family: Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-14400T
• Processor generation: Intel® Core™ i5 (14th gen)
• Processor cores: 10
• Processor threads: 16
• Processor boost frequency: 4.5 GHz
• Performance cores: 6
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.5 GHz
• Efficient-core Max Turbo Frequency: 3.2 GHz
• Performance-core base frequency: 1.5 GHz
• Efficient-core base frequency: 1.1 GHz
• Processor cache: 20 MB
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Processor base power: 35 W
• Maximum turbo power: 82 W

Memory

• Internal memory: 8 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 8 GB
• Memory slots: 2x DIMM
• Memory clock speed: 4800 MHz
• ECC: No
• Non-ECC: Yes
• Memory channels: Dual-channel

Storage

• Total storage capacity: 256 GB
• Optical drive type: No
• Storage media: SSD
• Number of storage drives installed: 1
• Total SSDs capacity: 256 GB
• Number of SSDs installed: 1
• SSD capacity: 256 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Card reader integrated: No

Graphics

• Discrete graphics card: No
• On-board graphics card: Yes
• Discrete graphics card model: Not available
• On-board graphics card model: Intel UHD Graphics 730
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Network

• Ethernet LAN: Yes
• Wi-Fi: Yes
• Ethernet LAN data rates: 100,1000 Mbit/s
• Cabling technology: 10/100/1000Base-T(X)
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4a
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• M.2 card slot (wireless): 1
• M.2 card slot (storage): 2
• Number of rear USB ports: 4
• Number of front USB ports: 3
• Number of front audio ports: 1

Design

• Chassis type: Mini PC
• Product colour: Black
• Colour name: Black
• Volume: 1 L
• VESA mounting: Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington

Performance

• Product type: Mini PC
• Motherboard chipset: Intel Q670
• Audio chip: Realtek ALC233VB
• Audio system: High Definition Audio
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: BIOS, HDD, Power on, Supervisor
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Operating system language: English

Power

• Power supply: 90 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Operating altitude: 0 - 3048 m
• Non-operating altitude: 0 - 12192 m

Certificates

• Compliance certificates: RoHS
• Certification: ENERGY STAR,TCO,EPEAT Silver,RoHS

Sustainability

• Sustainability certificates: ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO

Weight & dimensions

• Width: 179 mm
• Depth: 182.9 mm
• Height: 36.5 mm
• Weight: 1.25 kg
• Package width: 490 mm
• Package depth: 128 mm
• Package height: 250 mm
• Package weight: 3.2 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes
• Keyboard connectivity: Wired

Display

• Display included: No
