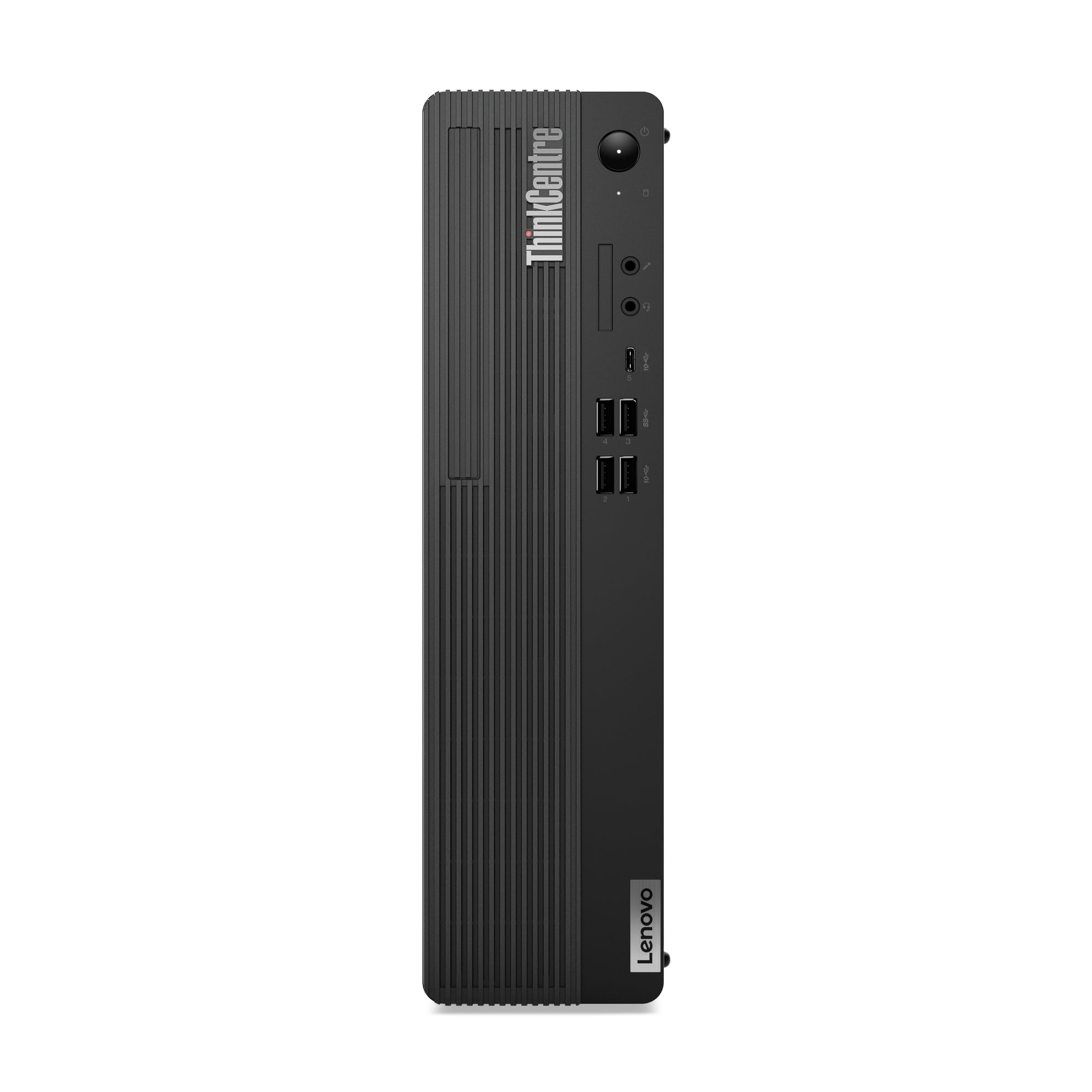

Lenovo ThinkCentre M90s Gen 5 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Processor

• Processor family: Intel® Core™ i7
• Processor manufacturer: Intel
• Processor model: i7-14700
• Processor frequency: 2.1 GHz
• Processor generation: Intel® Core™ i7 (14th gen)
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.3 GHz

Memory

• Internal memory: 16 GB
• Maximum internal memory: 128 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16 GB
• Memory slots: 4x DIMM
• Memory clock speed: 4400 MHz

Storage

• Total storage capacity: 512 GB
• Optical drive type: DVD±RW
• Storage media: SSD
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: Yes

Graphics

• Discrete graphics card: No
• On-board graphics card: Yes
• Discrete graphics card model: Not available
• On-board graphics card model: Intel UHD Graphics 770
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Network

• Ethernet LAN: Yes
• Wi-Fi: Yes
• Ethernet LAN data rates: 100,1000 Mbit/s
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes

Design

• Chassis type: SFF
• Product colour: Black
• Colour name: Black
• Volume: 8.2 L
• Cable lock slot: Yes
• Cable lock slot type: Kensington

Performance

• Product type: PC
• Motherboard chipset: Intel Q670
• Audio chip: Realtek ALC897Q-CG
• Audio system: High Definition Audio
• Number of speakers: 1
• Trusted Platform Module (TPM): Yes

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit

Power

• Power supply: 310 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Weight & dimensions

• Width: 92.5 mm
• Depth: 297.7 mm
• Height: 339.5 mm
• Weight: 5.3 kg

Packaging content

• Mouse included: Yes
• Keyboard included: Yes
