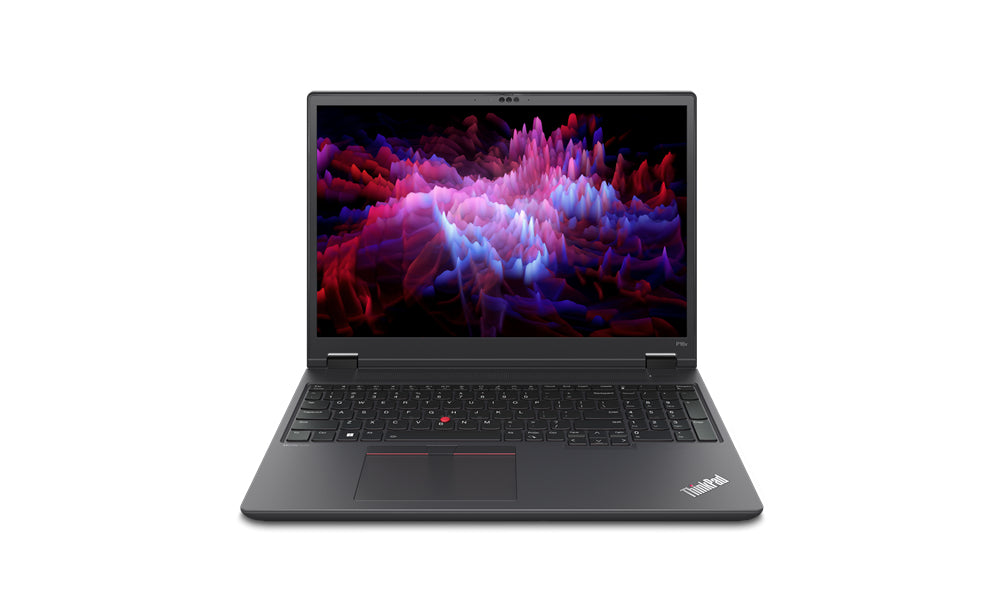

Lenovo ThinkPad P16v Gen 1 (AMD) AMD Ryzen™ 9 PRO 7940HS Mobile workstation 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black

Design

• Product type: Mobile workstation
• Product colour: Black
• Form factor: Clamshell
• Colour name: Thunder Black
• Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: WUXGA
• Panel type: IPS
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300 cd/m²
• RGB colour space: NTSC
• Colour gamut: 45%

Processor

• Processor family: AMD Ryzen™ 9 PRO
• Processor manufacturer: AMD
• Processor model: 7940HS
• Processor frequency: 4 GHz
• Processor generation: AMD Ryzen PRO 7000 Series
• Processor cores: 8
• Processor boost frequency: 5.2 GHz

Memory

• Internal memory: 32 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 32 GB
• Memory slots: 2x SO-DIMM

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA RTX 2000 Ada
• On-board graphics card model: AMD Radeon 780M
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 8 GB
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: AMD
• On-board graphics card family: AMD Radeon

Audio

• Audio chip: Realtek ALC3287
• Audio system: Dolby Audio
• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera resolution (numeric): 5 MP
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• Near Field Communication (NFC): No
• WWAN: Upgradable

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• USB4 Gen 3x2 ports quantity: 2
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes

Performance

• Motherboard chipset: AMD SoC

Keyboard

• Numeric keypad: Yes
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Keyboard language: UK English

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit

Battery

• Battery capacity: 90 Wh
• Battery technology: Lithium Polymer (LiPo)

Power

• AC adapter power: 170 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: No
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): 5 - 43 °C
• Operating relative humidity (H-H): 8 - 95%
• Storage relative humidity (H-H): 5 - 95%
• Maximum shipping altitude: 3048 m

Certificates

• Compliance certificates: RoHS

Sustainability

• Sustainability certificates: ENERGY STAR, TCO, EPEAT Gold

Weight & dimensions

• Weight: 2.2 kg
• Width: 365 mm
• Depth: 262 mm
• Height: 24.7 mm
