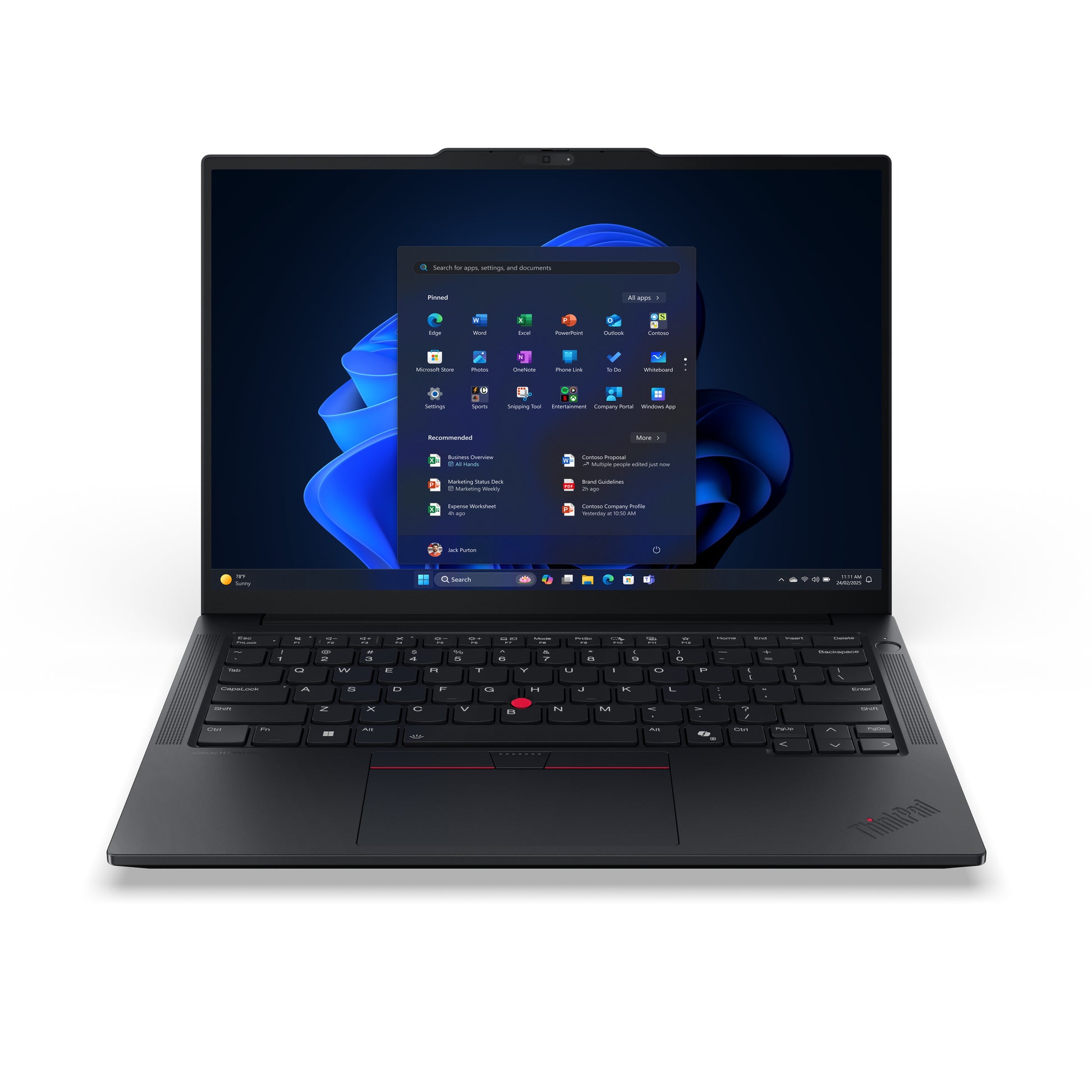

Lenovo ThinkPad E14 Gen 7 (AMD) AMD Ryzen™ 5 230 Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Black

Design

• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium

Display

• Display diagonal: 35.6 cm (14")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: WUXGA
• Panel type: IPS
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300 cd/m²
• RGB colour space: NTSC
• Colour gamut: 45%
• Maximum refresh rate: 60 Hz

Processor

• Processor family: AMD Ryzen™ 5
• Processor manufacturer: AMD
• Processor model: 230
• Processor frequency: 3.5 GHz
• Processor cores: 6
• Processor threads: 12
• Processor boost frequency: 4.9 GHz
• Processor cache: 16 MB
• Processor cache type: L3

Neural processor unit (NPU)

• Neural processor unit (NPU): AMD Ryzen AI
• NPU performance up to: 16 TOPs

Memory

• Internal memory: 16 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16 GB
• Memory slots: 2x SO-DIMM

Storage

• Total storage capacity: 512 GB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: No

Graphics

• On-board graphics card: Yes
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board graphics card model: AMD Radeon 760M
• On-board GPU manufacturer: AMD
• On-board graphics card family: AMD Radeon

Audio

• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100,1000 Mbit/s
• Bluetooth: Yes
• Bluetooth version: 5.3
• Near Field Communication (NFC): No
• WWAN: Not installed

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB4 Gen 3x2 ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes

Performance

• Motherboard chipset: AMD SoC

Keyboard

• Numeric keypad: No
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Keyboard language: English

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit

Battery

• Battery capacity: 64 Wh
• Battery technology: Lithium-Ion (Li-Ion)

Power

• USB Type-C charging port: Yes
• AC adapter power: 65 W
• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: No
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): 5 - 43 °C
• Operating relative humidity (H-H): 8 - 95%
• Storage relative humidity (H-H): 5 - 95%

Certificates

• Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

• Weight: 1.41 kg
• Width: 313 mm
• Depth: 220.3 mm
• Height (front): 1.01 cm
• Height (rear): 1.52 cm

Packaging content

• AC adapter included: Yes
