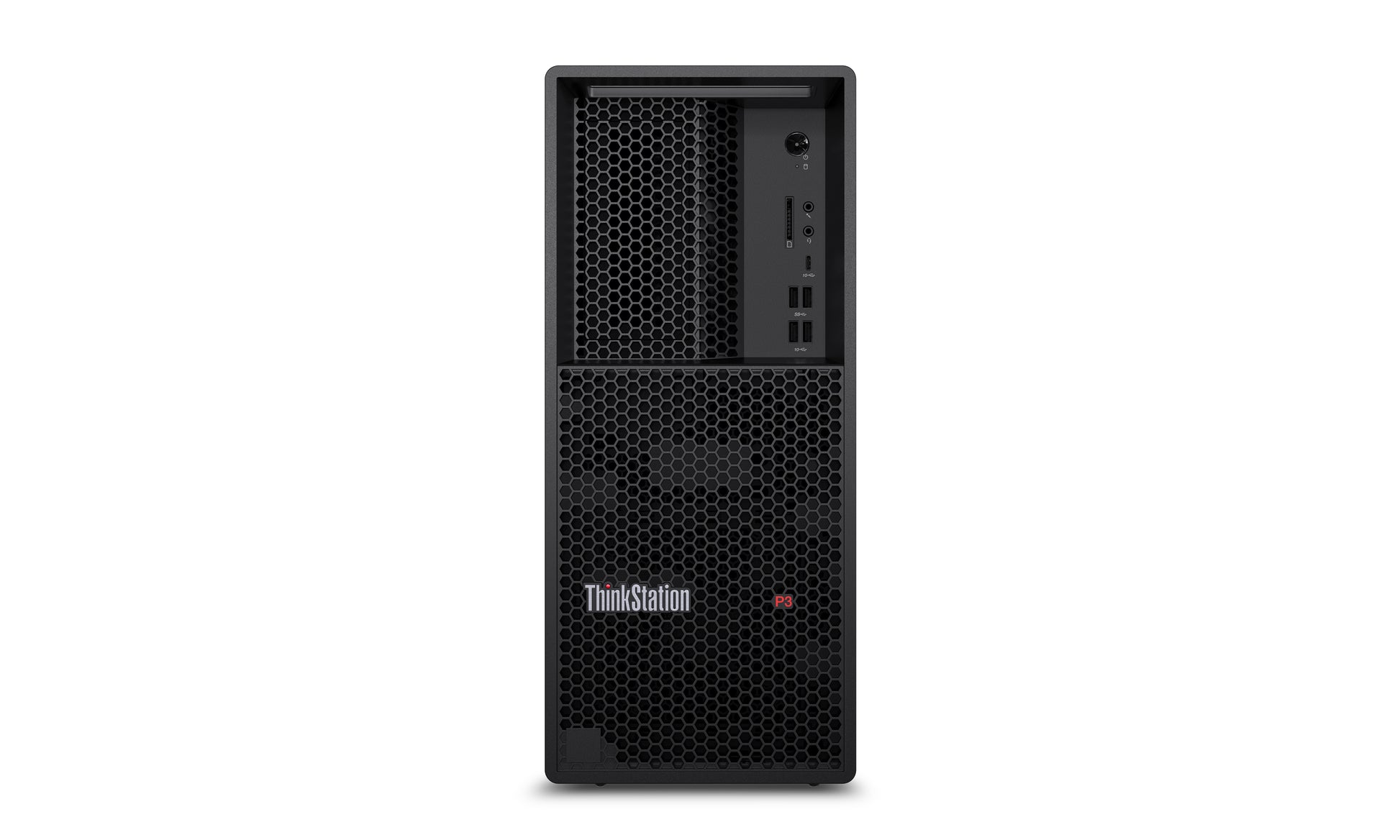

Lenovo ThinkStation P3 Tower Intel® Core™ i7 i7-14700K 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Workstation Black

Processor

• Processor family: Intel® Core™ i7
• Processor manufacturer: Intel
• Processor model: i7-14700K
• Processor generation: Intel® Core™ i7 (14th gen)
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.6 GHz
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.3 GHz
• Performance-core base frequency: 3.4 GHz
• Efficient-core base frequency: 2.5 GHz
• Processor cache: 33 MB
• Processor cache type: Smart Cache
• Processor base power: 125 W
• Maximum turbo power: 253 W

Memory

• Internal memory: 32 GB
• Maximum internal memory: 128 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16 GB
• Memory slots: 4x DIMM
• Memory clock speed: 4400 MHz

Storage

• Total storage capacity: 1 TB
• Optical drive type: No
• Storage media: SSD
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD

Graphics

• Discrete graphics card: No
• On-board graphics card: Yes
• Discrete graphics card model: Not available
• On-board graphics card model: Intel UHD Graphics 770
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Network

• Ethernet LAN: Yes
• Wi-Fi: No
• Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes

Design

• Chassis type: Tower
• Product colour: Black
• Volume: 27 L
• Placement supported: Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington

Performance

• Product type: Workstation
• Motherboard chipset: Intel W680
• Audio chip: Realtek ALC897Q-CG
• Audio system: High Definition Audio
• Trusted Platform Module (TPM): Yes

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Operating system language: English

Power

• Power supply: 750 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Operational conditions

• Operating temperature (T-T): 10 - 35 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Operating altitude: 0 - 3048 m
• Non-operating altitude: 0 - 12192 m

Weight & dimensions

• Width: 180 mm
• Depth: 370 mm
• Height: 415 mm
• Weight: 13.6 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes
• Keyboard connectivity: Wired

Display

• Display included: No
