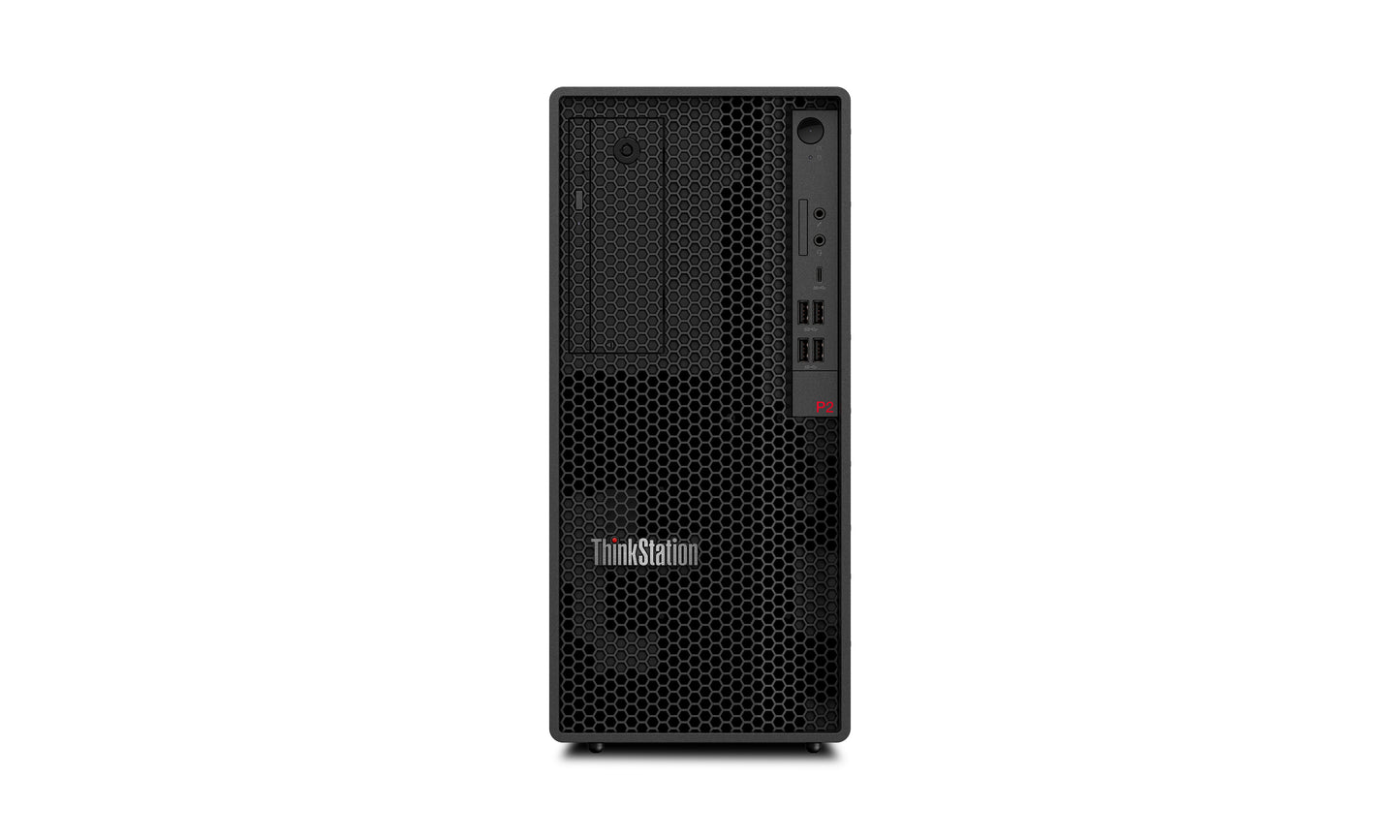

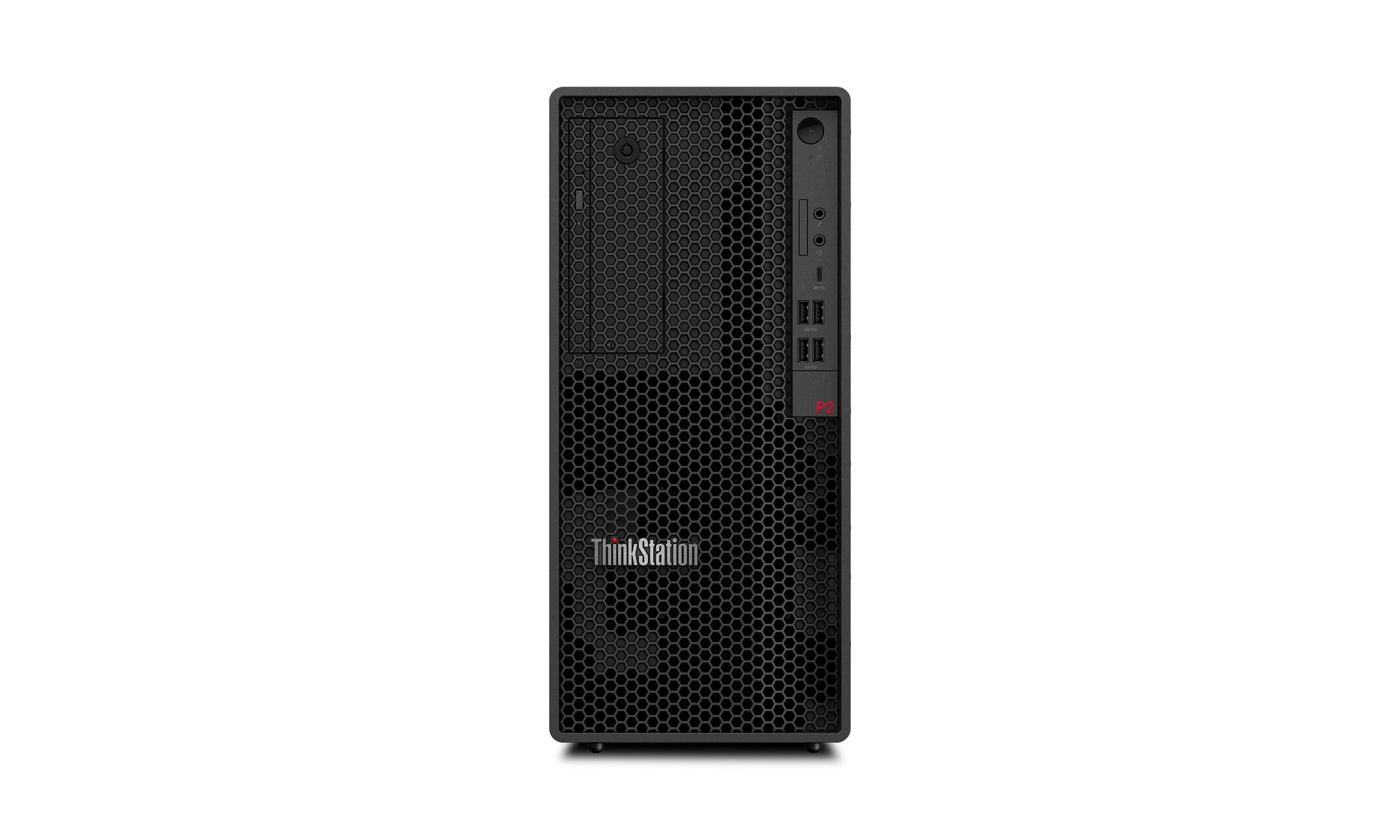

Lenovo ThinkStation P2 Tower Gen 2 Intel Core Ultra 9 285K 64 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Windows 11 Pro Workstation Black

Processor

• Processor family: Intel Core Ultra 9
• Processor manufacturer: Intel
• Processor model: 285K
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.7 GHz
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core base frequency: 3.7 GHz
• Efficient-core base frequency: 3.2 GHz
• Processor cache: 36 MB
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Processor base power: 125 W
• Maximum turbo power: 250 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 36 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 8 TOPs

Memory

• Internal memory: 64 GB
• Maximum internal memory: 128 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 32 GB
• Memory slots: 4x DIMM
• Memory clock speed: 5600 MHz
• Non-ECC: Yes
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Optical drive type: No
• Storage media: SSD
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Card reader integrated: Yes
• Compatible memory cards: SD

Graphics

• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA RTX 2000 Ada
• On-board graphics card model: Intel Graphics
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 16 GB
• Discrete graphics memory type: GDDR6
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• Graphics card Mini DisplayPort ports quantity: 4

Network

• Ethernet LAN: Yes
• Wi-Fi: No
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Bluetooth: No

Ports & interfaces

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Line-out: Yes
• Combo headphone/mic port: Yes

Design

• Chassis type: Tower
• Product colour: Black
• Volume: 17 L
• Placement supported: Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington

Performance

• Product type: Workstation
• Motherboard chipset: Intel W880
• Audio chip: Realtek ALC623-CG
• Audio system: High Definition Audio
• Built-in speaker(s): Yes
• Number of speakers: 1
• Password protection: Yes
• Password protection type: BIOS, Power on
• Trusted Platform Module (TPM): Yes

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Operating system language: English, US English
• Bundled software: Lenovo AI Now

Power

• Power supply: 750 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz
• 80 PLUS certification: 80 PLUS Platinum

Operational conditions

• Operating temperature (T-T): 10 - 35 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Operating altitude: 0 - 3048 m
• Non-operating altitude: 0 - 12192 m

Certificates

• Compliance certificates: RoHS

Sustainability

• Sustainability certificates: TCO

Weight & dimensions

• Width: 170 mm
• Depth: 315.4 mm
• Height: 376 mm
• Weight: 9.67 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes
• Keyboard connectivity: Wired

Display

• Display included: No
