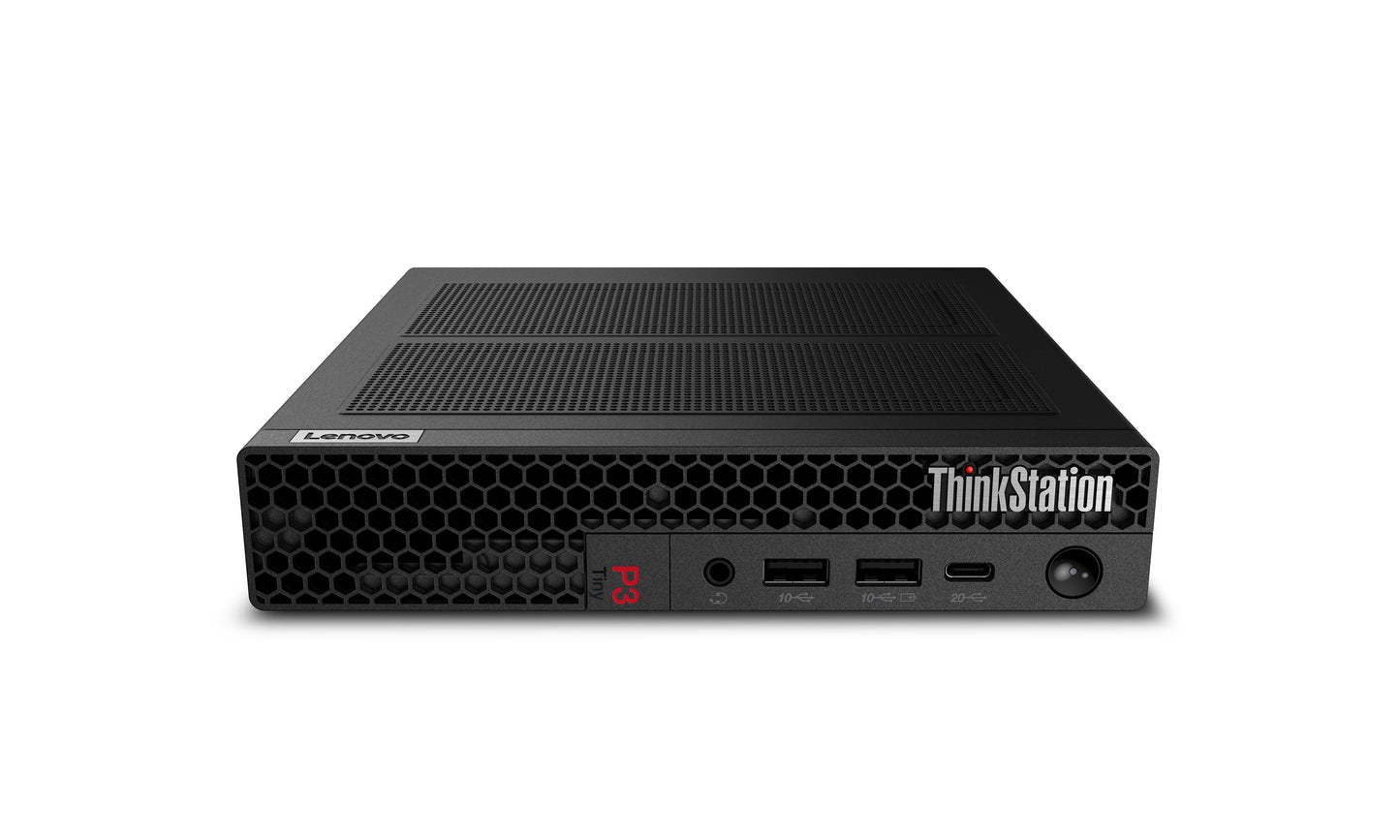

Lenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 7 265 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A400 Windows 11 Pro Mini PC Workstation Black

Processor

• Processor family: Intel Core Ultra 7
• Processor manufacturer: Intel
• Processor model: 265
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 20
• Processor threads: 20
• Processor boost frequency: 5.3 GHz
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.2 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core base frequency: 2.4 GHz
• Efficient-core base frequency: 1.8 GHz
• Processor cache: 30 MB
• Processor cache type: Smart Cache
• Processor base power: 65 W
• Maximum turbo power: 182 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 33 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 8 TOPs

Memory

• Internal memory: 32 GB
• Maximum internal memory: 128 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16 GB
• Memory slots: 2x SO-DIMM
• Memory clock speed: 5600 MHz
• Non-ECC: Yes
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Optical drive type: No
• Storage media: SSD
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)

Graphics

• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card model: NVIDIA RTX A400
• On-board graphics card model: Intel Graphics
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 4 GB
• Discrete graphics memory type: GDDR6
• Number of discrete graphics cards: 1
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• Graphics card Mini DisplayPort ports quantity: 4

Network

• Ethernet LAN: Yes
• Wi-Fi: No
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• LAN controller: Intel® I219-LM

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes

Design

• Chassis type: Mini PC
• Product colour: Black
• Colour name: Black
• Cable lock slot: Yes
• Cable lock slot type: Kensington

Performance

• Product type: Workstation
• Motherboard chipset: Intel Q870
• Audio chip: Realtek ALC233VB
• Audio system: High Definition Audio
• Trusted Platform Module (TPM): Yes

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Operating system language: English

Power

• Power supply: 330 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Operating altitude: 0 - 3048 m
• Non-operating altitude: 0 - 12192 m

Certificates

• Certification: MIL-STD-810H

Weight & dimensions

• Width: 179 mm
• Depth: 182.9 mm
• Height: 37 mm
• Weight: 1.4 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes
• Keyboard connectivity: Wired

Display

• Display included: No
