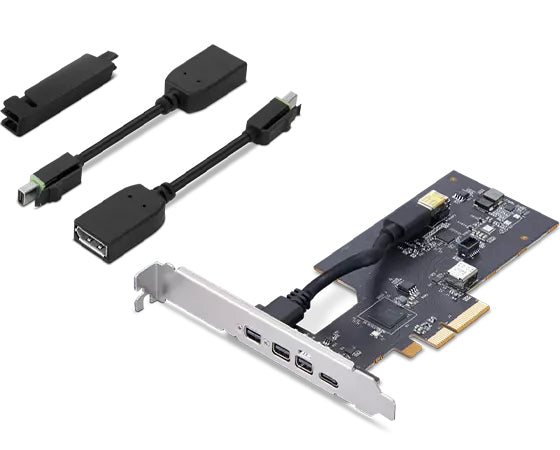

Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4

Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4

£211.99
£211.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card's internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.

    Ports & interfaces

    • Host interface: PCIe
    • Output interface: Mini DisplayPort, Thunderbolt 4
    • Host interface gender: Male

    Design

    • Internal: Yes
    • Purpose: Server
    • Cooling type: Passive
    • Hot-Plug support: Yes
    • Certification: BSMI，CE,Morocco，FCC,IC,VCCI

    Power

    • Power consumption (typical): 45 W

    Operational conditions

    • Operating temperature (T-T): 0 - 50 °C
    • Operating relative humidity (H-H): 20 - 80%

    Weight & dimensions

    • Width: 144.8 mm
    • Depth: 68.9 mm
    • Height: 22 mm
    • Weight: 100 g

    Packaging data

    • Package width: 177 mm
    • Package depth: 144 mm
    • Package height: 53 mm
    • Package weight: 400 g
    • Package type: Box
