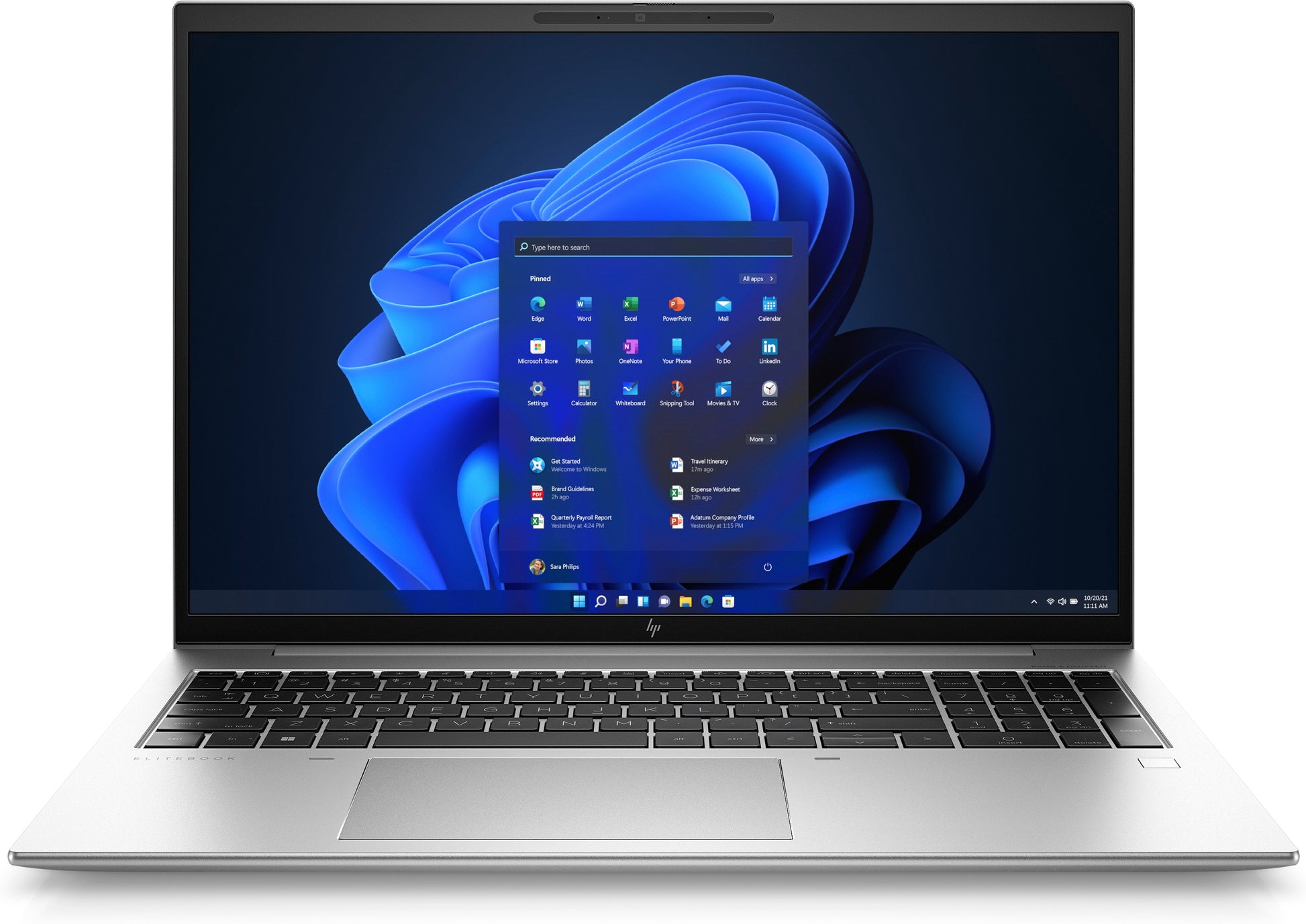

HP EliteBook 860 G9 Intel® Core™ i5 i5-1235U Laptop 40.6 cm (16") WUXGA 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Silver

Design

• Product type: Laptop
• Product colour: Silver
• Form factor: Clamshell
• Market positioning: Premium
• Introduction year: 2022
• Country of origin: China
• Original brand name: HP

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: WUXGA
• Panel type: IPS
• Anti-glare screen: Yes
• Display brightness: 250 cd/m²
• Display diagonal (metric): 40.6 cm
• RGB colour space: NTSC
• Colour gamut: 45%

Processor

• Processor family: Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-1235U
• Processor generation: 12th gen Intel® Core™ i5
• Processor cores: 10
• Processor threads: 12
• Processor boost frequency: 4.4 GHz
• Processor cache: 12 MB
• Processor cache type: L3
• Configurable TDP-down: 12 W

Memory

• Internal memory: 8 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800 MHz
• Memory layout (slots x size): 1 x 8 GB
• Memory slots: 2x SO-DIMM
• ECC: No
• Non-ECC: Yes

Storage

• Total storage capacity: 256 GB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 256 GB
• Number of SSDs installed: 1
• SSD capacity: 256 GB
• SSD interface: PCI Express
• NVMe: Yes

Graphics

• On-board graphics card: Yes
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board graphics card model: Intel Iris Xe Graphics
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Iris Xe Graphics

Audio

• Audio system: B&O PLAY
• Built-in speaker(s): Yes
• Number of built-in speakers: 2
• Speakers manufacturer: Bang & Olufsen
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution (numeric): 5 MP

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller model: Intel Wi-Fi 6E AX211
• WLAN controller manufacturer: Intel
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.0
• Thunderbolt 4 ports quantity: 2
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes

Keyboard

• Numeric keypad: Yes
• Pointing device: Clickpad
• Keyboard backlit: Yes
• Spill-resistant keyboard: Yes
• Input device model: HP Premium Keyboard

Software

• Operating system installed: Windows 11 Pro
• Pre-installed software: HP Connection Optimizer; HP Image Assistant; HP Hotkey Support; HP MAC Address Manager; HP Support Assistant; HP Easy Clean; HP Power Manager; myHP; HP Privacy Settings; Touchpoint Customizer for Commercial; HP Notifications; HP QuickDrop; HP Quick Touch; HP PC Hardware Diagnostics Windows
• Bundled software: HP Wolf Pro Security Edition (1 year)

Processor special features

• Intel Flex Memory Access: Yes
• Intel Trusted Execution Technology: Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Execute Disable Bit: Yes
• CPU configuration (max): 1
• Embedded options available: No
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel Virtualization Technology (VT-x): Yes

Brand-specific features

• HP speaker type: HP Dual Speakers
• HP Connection Optimizer: Yes
• HP Support Assistant: Yes
• HP Smart AC Adapter: Yes
• HP front camera: HP Webcam 5MP
• HP Security tools: Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Secure Erase; HP Sure Click; HP Sure Sense; BIOS Update via Network; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; Secured-core PC capable; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 Certified); HP Sure Start Gen7; HP Wake on WLAN; HP Tamper Lock; HP Sure Run Gen5; HP Sure Recover Gen5
• HP Management tools: HP Client Management Script Library (download); HP Driver Packs (download); HP Manageability Integration Kit Gen4 (download); HP Image Assistant Gen5 (download); HP Patch Assistant (download); HP Cloud Recovery; HP Connect for Microsoft Endpoint Manager
• HP Software provided: HP Image Assistant; HP Hotkey Support; HP MAC Address Manager; HP Easy Clean; myHP; HP Privacy Settings; Touchpoint Customizer for Commercial; HP Notifications; HP QuickDrop; Tile App; HP Quick Touch; HP PC Hardware Diagnostics Windows
• HP segment: Business

Battery

• Battery capacity: 51 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3

Power

• USB Type-C charging port: Yes
• AC adapter power: 65 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS, Power on, User

Certificates

• Compliance certificates: GS mark

Sustainability

• Sustainability certificates: ENERGY STAR, TCO
• Sustainable technologies and materials: Low Halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 55% post-consumer recycled plastic; Ocean-bound plastic in speaker enclosure(s)

Weight & dimensions

• Weight: 1.76 kg
• Width: 358.7 mm
• Depth: 251 mm
• Height: 19.2 mm

Packaging data

• Package width: 69 mm
• Package depth: 552 mm
• Package height: 345 mm

Packaging content

• Keyboard included: Yes
• Stylus pen: No

Logistics data

• Harmonized System (HS) code: 8471300000

Other features

• Power management: Yes
• Number of speakers: 2

Memory

• Number of free internal memory expansion slots: 1

Keyboard

• Keyboard special features: Spill-resistant

Brand-specific features

• HP GTIN (EAN/UPC): 196786575167

Sustainability

• Sustainability compliance: Yes
