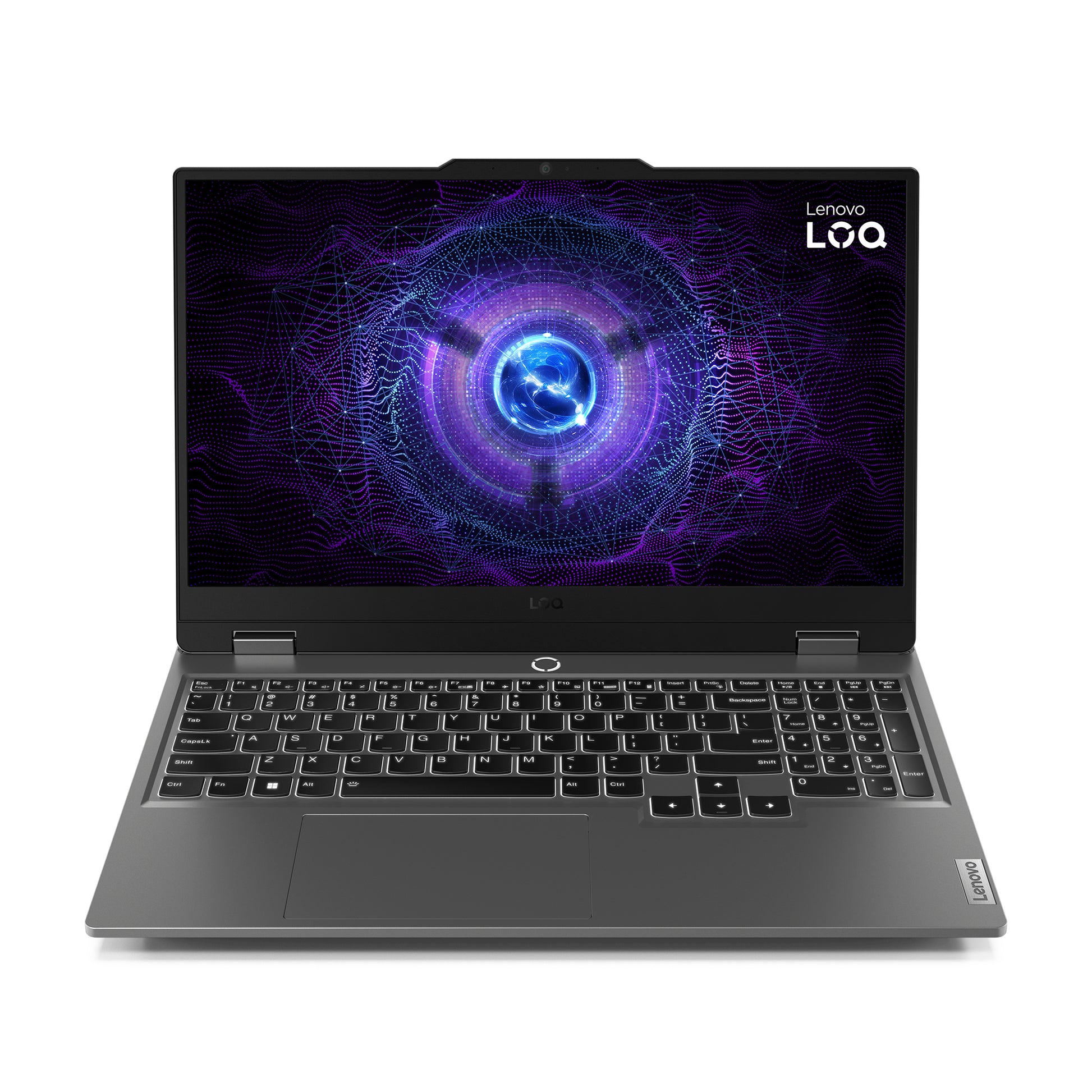

Lenovo LOQ 15IAX9I Intel® Core™ i5 i5-12450HX Laptop 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD Intel Arc A530M Wi-Fi 6 (802.11ax) Windows 11 Home UK English Grey

Design

• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Colour name: Luna Grey
• Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

• Display diagonal: 39.6 cm (15.6")
• Display resolution: 1920 x 1080 pixels
• Touchscreen: No
• HD type: Full HD
• Panel type: IPS
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300 cd/m²
• RGB colour space: sRGB
• Colour gamut: 100%
• Maximum refresh rate: 144 Hz
• Contrast ratio (typical): 1000:1

Processor

• Processor family: Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-12450HX
• Processor generation: 12th gen Intel® Core™ i5
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.4 GHz
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.4 GHz
• Efficient-core Max Turbo Frequency: 3.1 GHz
• Processor cache: 12 MB
• Processor cache type: Smart Cache
• Processor base power: 55 W
• Maximum turbo power: 157 W

Memory

• Internal memory: 16 GB
• Maximum internal memory: 32 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 8 GB
• Memory slots: 2x SO-DIMM
• Memory channels: Dual-channel

Storage

• Total storage capacity: 512 GB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: No

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: Intel Arc A530M
• On-board graphics card model: Intel® UHD Graphics
• Discrete GPU manufacturer: Intel
• Discrete graphics card memory: 4 GB
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Audio

• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution: 1280 x 720 pixels
• Front camera HD type: HD
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 1000,100 Mbit/s
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes

Performance

• Motherboard chipset: Intel HM670

Keyboard

• Numeric keypad: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: White
• Keyboard language: UK English

Software

• Operating system installed: Windows 11 Home
• Operating system architecture: 64-bit
• Operating system language: English
• Trial software: Office
• Bundled software: Office Trial

Battery

• Battery capacity: 60 Wh
• Battery technology: Lithium Polymer (LiPo)
• Battery life (max): 3.9 h
• Continuous video playback time: 6 h
• Fast charging: Yes

Power

• USB Type-C charging port: Yes
• AC adapter power: 170 W
• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Fingerprint reader: No
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS, HDD, Power on, Supervisor

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): 5 - 43 °C
• Operating relative humidity (H-H): 8 - 95%
• Storage relative humidity (H-H): 5 - 95%
• Maximum shipping altitude: 3048 m

Certificates

• Certification: ErP Lot 3\n RoHS compliant\nTÜV Rheinland Low Blue Light

Weight & dimensions

• Weight: 2.38 kg
• Width: 359.9 mm
• Depth: 258.7 mm
• Height (front): 2.19 cm
• Height (rear): 2.39 cm

Packaging content

• AC adapter included: Yes
