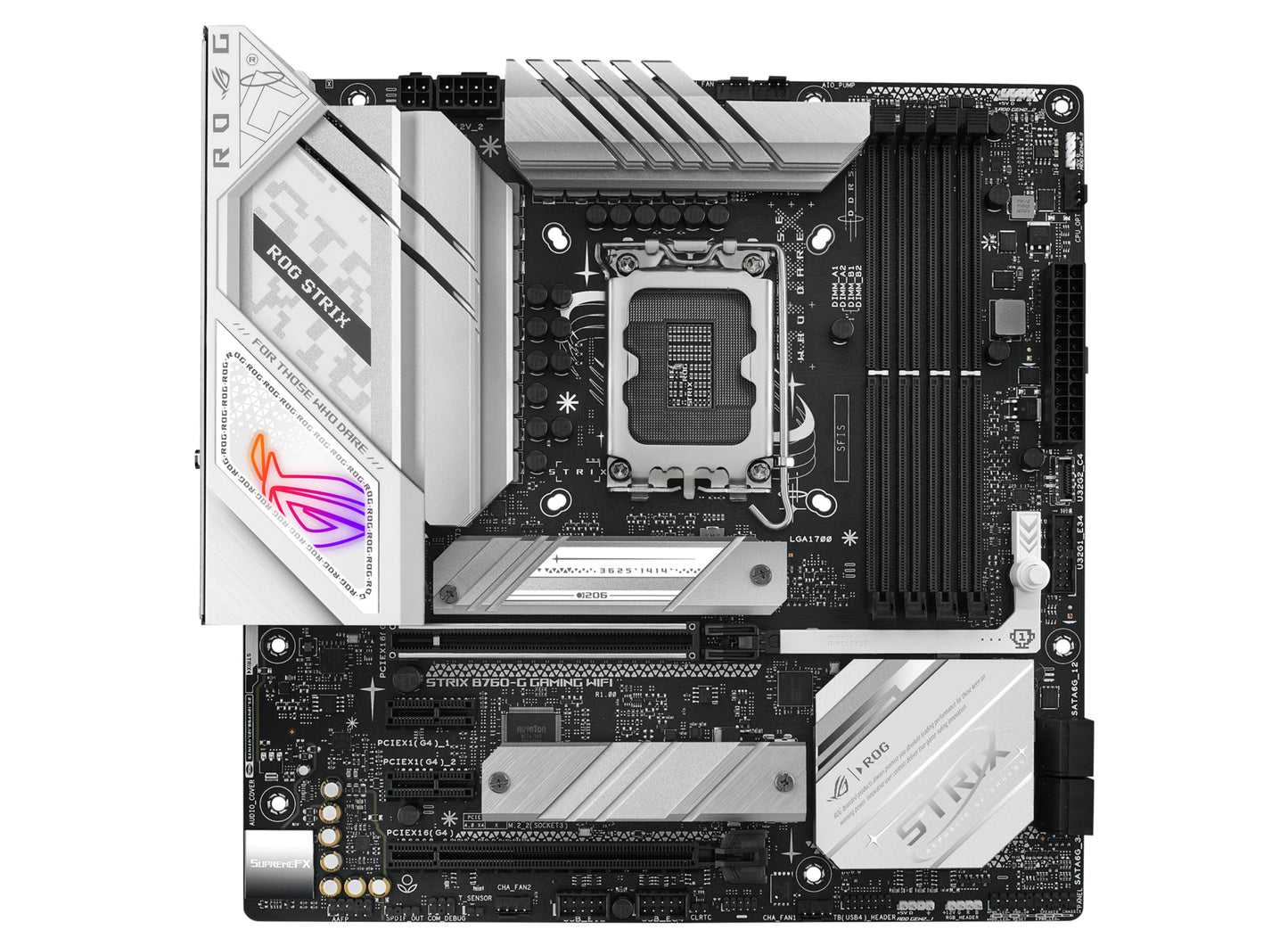

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX

£252.99
£252.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
ROG STRIX B760-G GAMING WIFI
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE
A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.

TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+4 PIN PROCOOL POWER CONNECTORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY
The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.

PLAY IN STYLE
The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.

    Processor

    • Processor manufacturer: Intel
    • Processor socket: LGA 1700
    • Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
    • Supported processor sockets: LGA 1700

    Memory

    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Maximum internal memory: 192 GB
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
    • Supported memory clock speed (max): 7800 MHz
    • Unbuffered memory: Yes

    Storage controllers

    • Supported storage drive interfaces: M.2, SATA III
    • Supported storage drive types: HDD & SSD
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0, 1, 5, 10

    Graphics

    • Parallel processing technology support: Not supported

    Internal I/O

    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 2
    • Peripheral (Molex) power connectors (4-pin): 1
    • EPS power connector (8-pin): Yes
    • Thunderbolt headers: 1
    • 12V power connector: Yes
    • RGB LED pin header: Yes

    Rear panel I/O ports

    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
    • Ethernet LAN (RJ-45) ports: 1
    • VGA (D-Sub) ports quantity: 0
    • HDMI ports quantity: 1
    • DVI-D ports quantity: 0
    • USB 3.2 Gen 2x2 Type-C ports quantity: 1
    • DisplayPorts quantity: 1
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • WiFi-AP antenna jack: 1

    Network

    • Wi-Fi: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    • Wi-Fi standards: Wi-Fi 6E (802.11ax)
    • Bluetooth: Yes
    • Bluetooth version: 5.3

    Features

    • Component for: PC
    • Motherboard form factor: micro ATX
    • Motherboard chipset family: Intel
    • Motherboard chipset: Intel B760
    • Audio output channels: 7.1 channels
    • Audio chip: SupremeFX S1220A
    • Windows operating systems supported: Windows 10 x64, Windows 11

    Expansion slots

    • PCI Express x1 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 4.x) slots: 1
    • PCI Express x16 (Gen 5.x) slots: 1
    • Number of M.2 (M) slots: 2

    BIOS

    • BIOS type: UEFI AMI
    • BIOS memory size: 256 Mbit

    Weight & dimensions

    • Width: 244 mm
    • Depth: 244 mm

    Packaging content

    • Cables included: SATA
