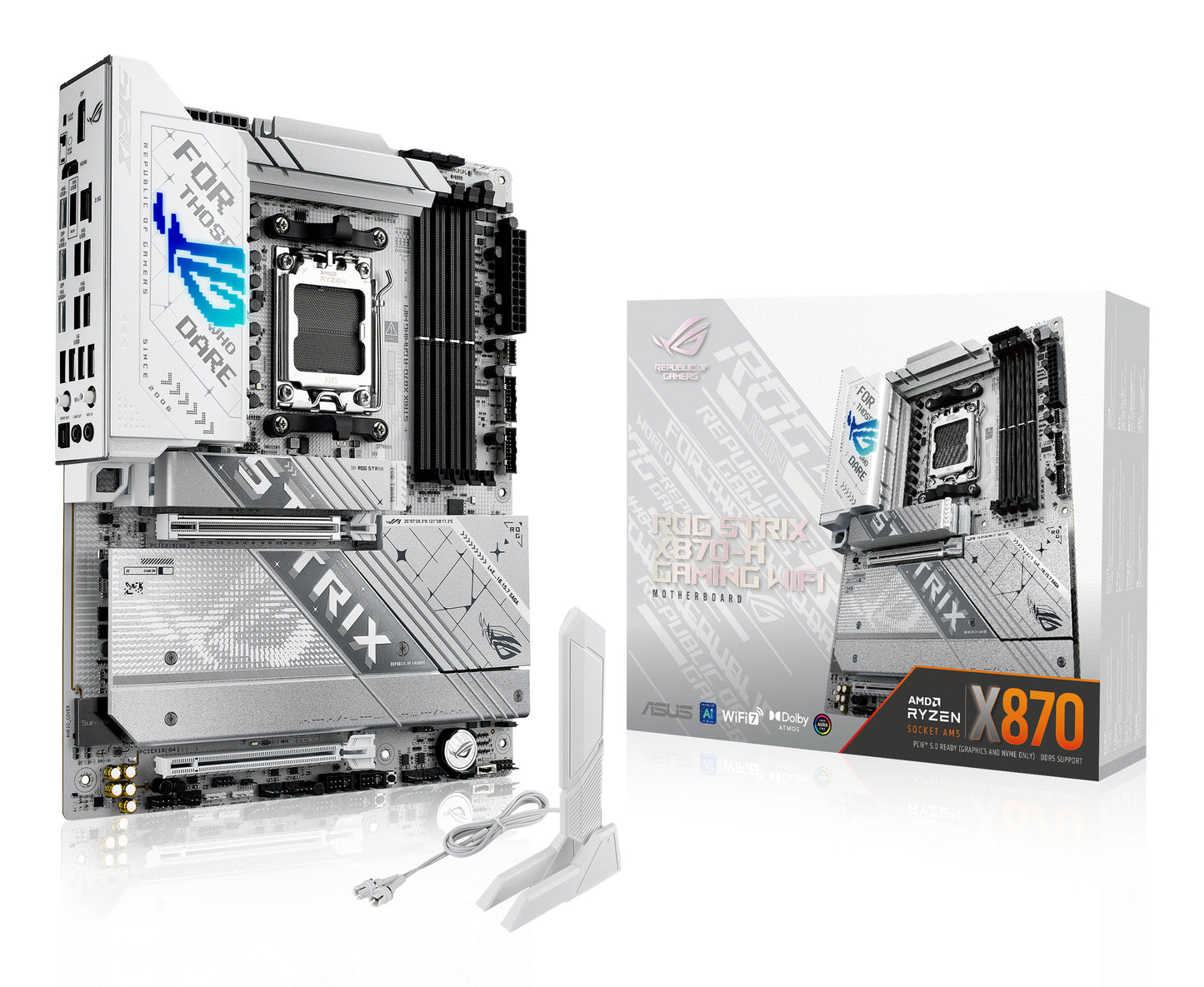

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX

£420.99
£420.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

    Processor

    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Supported processor sockets: Socket AM5

    Memory

    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Maximum internal memory: 192 GB
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Unbuffered memory: Yes

    Storage controllers

    • Supported storage drive interfaces: M.2, SATA III
    • Supported storage drive types: HDD & SSD
    • Number of HDDs supported: 2
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0, 1, 10, 5

    Graphics

    • Parallel processing technology support: Not supported
    • On-board graphics card: No

    Internal I/O

    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
    • Number of SATA III connectors: 2
    • USB 3.2 Gen 2x2 connectors: 1
    • Number of SATA II connectors: 0
    • Number of SATA connectors: 0
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 5
    • Chassis intrusion connector: Yes
    • 12V power connector: Yes

    Rear panel I/O ports

    • USB 2.0 ports quantity: 0
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • VGA (D-Sub) ports quantity: 0
    • HDMI ports quantity: 1
    • DVI-D ports quantity: 0
    • USB4 Gen 2x2 ports quantity: 2
    • DisplayPorts quantity: 1
    • Headphone outputs: 1
    • Microphone in: Yes
    • S/PDIF out port: Yes
    • WiFi-AP antenna jack: 1

    Network

    • Wi-Fi: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4

    Features

    • Component for: PC
    • Motherboard form factor: ATX
    • Motherboard chipset family: AMD
    • Motherboard chipset: AMD X870
    • Audio output channels: 7.1 channels
    • Audio chip: Realtek ALC4080
    • Product colour: Aluminium
    • Windows operating systems supported: Windows 11

    Expansion slots

    • PCI Express x16 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 5.x) slots: 1
    • Number of M.2 (M) slots: 4

    BIOS

    • BIOS type: UEFI AMI
    • BIOS memory size: 256 Mbit
    • Clear CMOS button: Yes

    Packaging data

    • Package width: 353 mm
    • Package depth: 273 mm
    • Package height: 68 mm
    • Package weight: 2.32 kg

    Weight & dimensions

    • Width: 305 mm
    • Depth: 244 mm
    • Height: 50 mm

    Packaging content

    • Cables included: SATA

    Other features

    • mSATA ports quantity: 0
    • Weight: 1.84 kg
