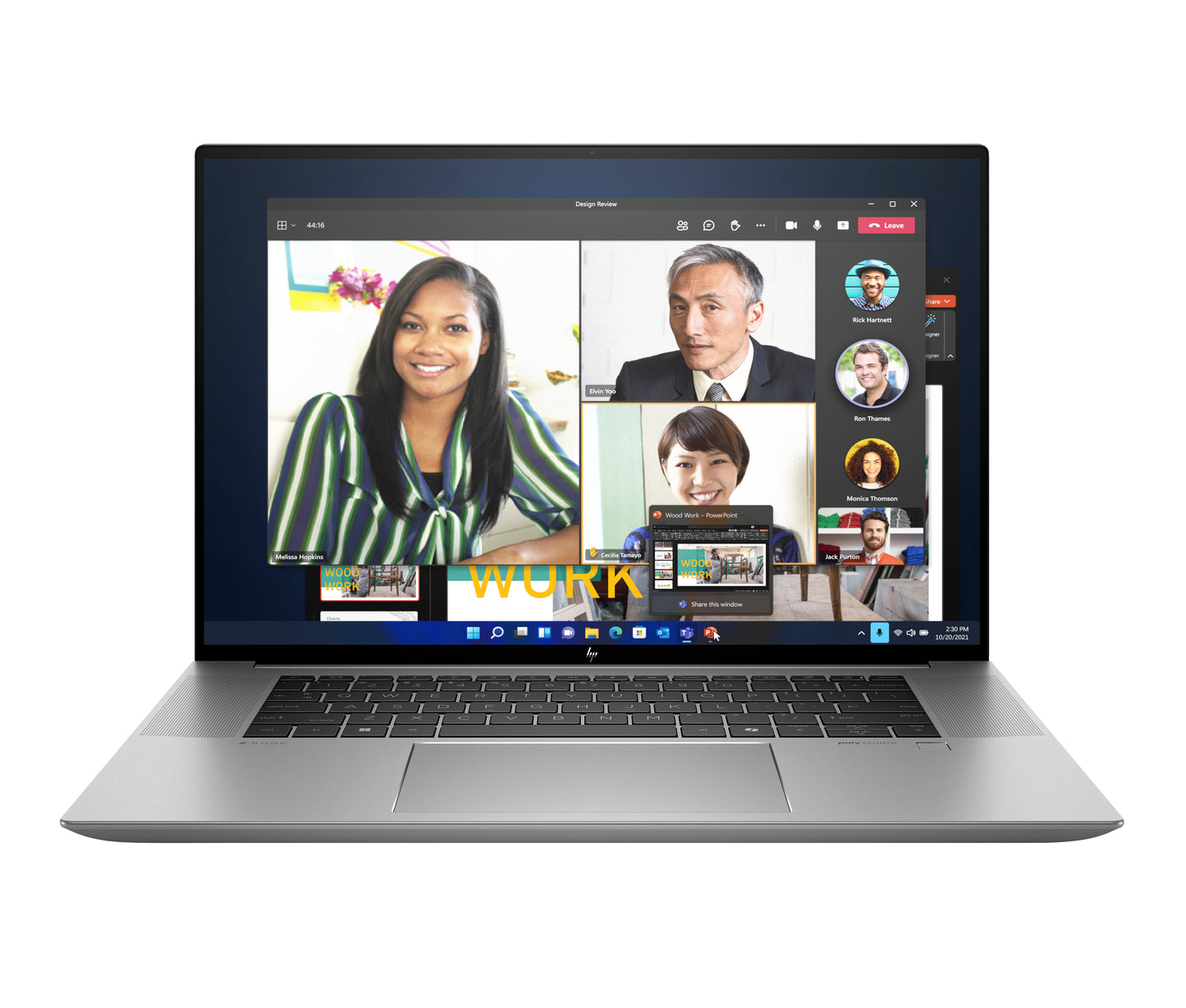

HP ZBook Studio G11 Intel Core Ultra 7 155H Mobile workstation 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro AI Workstation, AI PC

Design

• Product type: Mobile workstation
• Form factor: Clamshell
• Market positioning: Performance
• Introduction year: 2024
• Intel® vPro™ Platform Eligibility: No
• Country of origin: China
• Original brand name: HP

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: WUXGA
• Panel type: IPS
• Anti-glare screen: Yes
• Display bezel technology: Micro-Edge
• Display brightness: 400 cd/m²
• Display diagonal (metric): 40.6 cm
• RGB colour space: sRGB
• Colour gamut: 100%
• sRGB coverage (typical): 100%

Processor

• Processor family: Intel Core Ultra 7
• Processor manufacturer: Intel
• Processor model: 155H
• Processor generation: Intel® Core™ Ultra (Series 1)
• Processor cores: 16
• Processor threads: 22
• Processor boost frequency: 4.8 GHz
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 4.8 GHz
• Efficient-core Max Turbo Frequency: 3.8 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Performance-core base frequency: 1.4 GHz
• Efficient-core base frequency: 0.9 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Processor cache: 24 MB
• Processor cache type: L3
• Processor base power: 28 W
• Maximum turbo power: 115 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Maximum frequency NPU: 1.4 GHz
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

• Internal memory: 32 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16 GB
• Memory slots: 2x SO-DIMM
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD memory type: TLC
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA RTX 1000 Ada
• On-board graphics card model: Intel Arc Graphics
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 6 GB
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics

Audio

• Built-in speaker(s): Yes
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution: 1280 x 720 pixels
• Front camera HD type: HD
• Infrared (IR) camera: Yes

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller model: Intel Wi-Fi 7 BE200
• WLAN controller manufacturer: Intel
• Bluetooth: Yes
• Bluetooth version: 5.4

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB4 Gen 3x2 ports quantity: 2
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Microphone in: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 2

Keyboard

• Numeric keypad: No
• Pointing device: Clickpad
• Keyboard backlit: Yes
• Spill-resistant keyboard: Yes
• Input device model: HP Premium Quiet Keyboard

Software

• Operating system installed: Windows 11 Pro

Processor special features

• Intel® Turbo Boost Technology: Yes

Brand-specific features

• HP speaker type: HP Dual Speakers
• HP Artificial Intelligence: AI Workstation, AI PC
• HP segment: Business

Battery

• Battery capacity: 86 Wh
• Battery technology: Lithium Polymer (LiPo)
• Number of battery cells: 6
• Fast charging: Yes
• Fast charging time (50%): 30 min

Power

• USB Type-C charging port: Yes
• AC adapter power: 150 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Fingerprint reader: Yes
• Password protection: Yes
• Password protection type: BIOS, Power on

Certificates

• Low halogen: Yes

Sustainability

• Sustainability certificates: ENERGY STAR, TCO
• Sustainable technologies and materials: Low Halogen

Weight & dimensions

• Weight: 1.73 kg
• Width: 356 mm
• Depth: 242 mm
• Height: 19 mm

Packaging data

• Package width: 552 mm
• Package depth: 69 mm
• Package height: 345 mm

Carbon footprint

• Total carbon footprint (kg of CO2e): 300
• Carbon emissions, manufacturing (kg of CO2e): 284
• Carbon emissions, logistics (kg of CO2e): 1
• Total carbon emissions, w/o use phase (kg of CO2e): 17

Packaging content

• Keyboard included: Yes

Technical details

• General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
