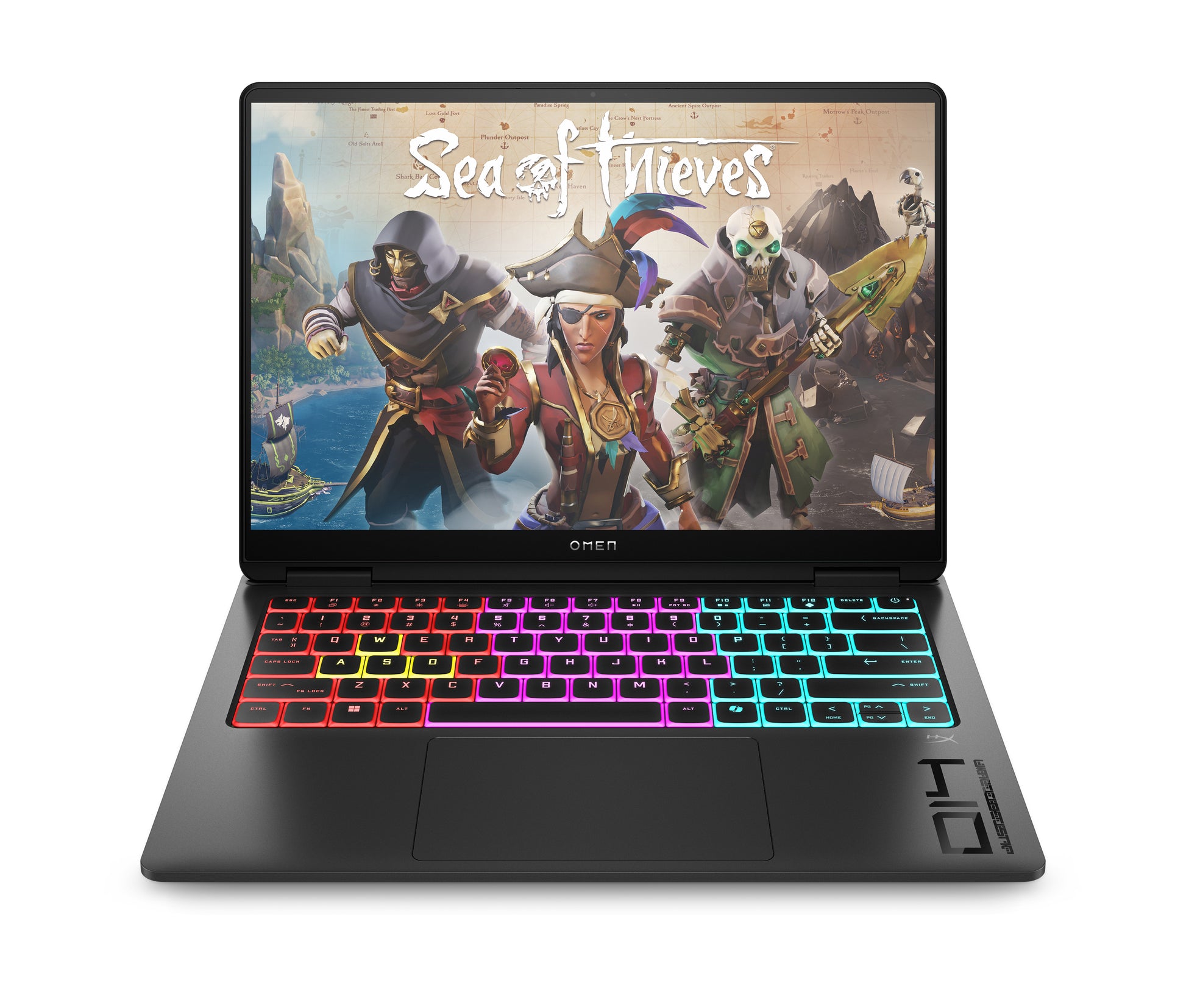

HP OMEN Transcend 14-fb1009na Intel Core Ultra 9 285H Laptop 35.6 cm (14") 3K 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home AI PC Black

Design

• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Colour name: Shadow black
• Market positioning: Gaming
• Introduction year: 2025
• Product design: Sandblasted anodized finish
• Country of origin: China
• Original brand name: HP

Display

• Display diagonal: 35.6 cm (14")
• Display resolution: 2880 x 1800 pixels
• Touchscreen: No
• HD type: 3K
• Panel type: OLED
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display glass type: Edge to Edge Glass
• Display bezel technology: Micro-Edge
• Display brightness: 400 cd/m²
• Display diagonal (metric): 35.6 cm
• RGB colour space: DCI-P3
• Colour gamut: 100%
• Display response rise/fall: 0.2 ms
• Maximum refresh rate: 120 Hz
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: High Dynamic Range (HDR) 500, High Dynamic Range (HDR) 1500
• DCI-P3 coverage: 100%

Processor

• Processor family: Intel Core Ultra 9
• Processor manufacturer: Intel
• Processor model: 285H
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4 GHz
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Performance-core base frequency: 2.9 GHz
• Efficient-core base frequency: 2.7 GHz
• Low Power Efficient-core Base Frequency: 1000 MHz
• Processor cache: 24 MB
• Processor cache type: L3
• Processor base power: 45 W
• Maximum turbo power: 115 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 99 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 77 TOPs

Memory

• Internal memory: 32 GB
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 7500 MHz
• Memory form factor: On-board
• Memory layout (slots x size): Not available

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD memory type: TLC
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• On-board graphics card model: Intel Arc 140T
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 8 GB
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics

Audio

• Audio system: DTS:X Ultra
• Built-in speaker(s): Yes
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller model: Intel Wi-Fi 7 BE201
• WLAN controller manufacturer: Intel
• Bluetooth: Yes
• Bluetooth version: 5.4

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB4 Gen 3x2 ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel® Thunderbolt 4: Yes
• Microphone in: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1

Performance

• Motherboard chipset: Intel SoC
• Temperature sensor: Yes

Keyboard

• Numeric keypad: No
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Full-size keyboard: Yes
• Keyboard colour name: Shadow black

Software

• Operating system installed: Windows 11 Home
• Pre-installed software: Otter.ai, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial
• Trial software: 100 GB Dropbox storage for 3 months

Processor special features

• Intel® Turbo Boost Technology: Yes

Brand-specific features

• HP Audio Boost: Yes
• HP speaker type: HP Dual Speakers
• HP Imagepad: Yes
• HP front camera: HP TrueVision FHD IR
• HP Security tools: Trusted Platform Module (Firmware TPM) support
• HP Software provided: HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub
• HP Artificial Intelligence: AI PC
• HP segment: Home

Battery

• Battery capacity: 71 Wh
• Battery technology: Lithium Polymer (LiPo)
• Number of battery cells: 6
• Fast charging: Yes
• Fast charging time (50%): 30 min

Power

• USB Type-C charging port: Yes
• AC adapter power: 140 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes

Security

• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS, Power on
