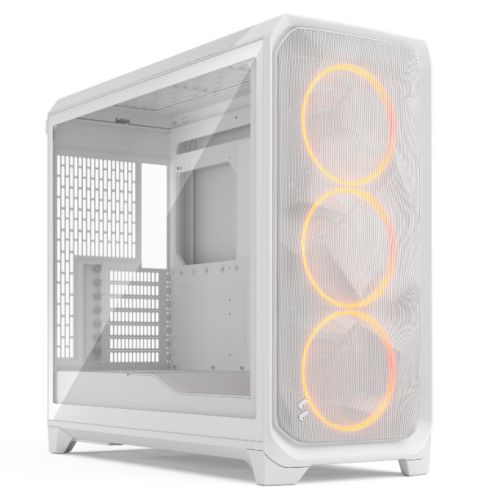

Fractal Design Meshify 3 XL (White RGB TG Clear) Case w/ Clear Window, E-ATX, Mesh Front, 3x RGB Fans, USB-C 20Gbps

Fractal Design Meshify 3 XL (White RGB TG Clear) Case w/ Clear Window, E-ATX, Mesh Front, 3x RGB Fans, USB-C 20Gbps

FRACTAL
View full details



Meshify 3 XL - Generous Performance


Meshify 3 XL is a PC case offering top-tier cooling performance, versatility and build quality in a generous format. This third iteration of the Meshify Series refines the dynamic aesthetic of the previous series and features performance-boosting engineering updates. With a spacious interior and multi-radiator support, Meshify 3 XL is ideal for enthusiast-level custom loop builds.

  • Ventilated front mesh panel with sleek, sculpted expression
  • Engineered for cooling performance with ample ventilation
  • Spacious interior with multi-radiator support, well-suited to custom loop configurations
  • Supports up to 420 mm top radiators and 360 mm front and side radiators, with removable brackets for easy installation
  • Includes three Momentum 14 RGB fans, with space for up to ten 140 mm fans
  • Easily accessible I/O with a 20 Gbps USB-C, two USB-A ports and an audio jack
  • Clean interior with new cable aligners for easy cable management
  • Air guide which directs air towards components to further improve GPU cooling






Advanced airflow

Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.





Evolved design

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.





Designed for gaming

Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX motherboard compatibility.





Ideal for custom loops

Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.





Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.





Easily accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.





Clean finish

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.





Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.





Description

Specification

  • Form Factor: E-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: E-ATX / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
  • #Hide#Window(s): Yes (Window)
  • #Hide#LED Lighting: Yes (LED Lighting)
  • Connectors / Controls: 1 x USB Type-C 20Gbps
    2 x USB Type-A 5Gbps
    1 x Audio Combo Jack
    Power button
  • Drive Bays: 2/5 x 3.5""""/2.5"""" Drive Mounts
  • Expansion Slots: 7 Expansion slots
  • Cooling System: Included:
    Front: 3 x 140 mm Momentum RGB Fans

    Fan Mounts:
    Front: 3 x 120 / 3 x 140 / 2 x 180 mm
    Top: 3 x 120 / 3 x 140 mm
    Rear: 1 x 120 / 1 x 140 mm
    Side: 3 x 140 mm (no 120 support without radiator)
    Bottom: None
  • .:
    Radiator Support:
    Front: Up to 360 / 280 mm
    Top: Up to 360 / 420 mm (up to 475 mm)
    Rear: Up to 120 / 140 mm
    Side: 360 mm (with brackets)
    Bottom: None
  • Colour: Black
  • Material: Left Side Panel: Clear Tint Tempered Glass
    Right Side Panel: Industrial Steel
  • Compatibility: GPU Max Length: 512 mm
    GPU Max Height: 189 mm (7 slot) including cables
    CPU Cooler Max Height: 182 mm
    PSU Max Length: 230 mm
    Cable Routing Space: 37.5 mm
  • Weight/Dimensions: 10.9 kg
    (LxWxH) 567 x 245 x 515 mm
    w/o feet/protrusions/screws: 490 x 245 x 515 mm
  • Additional Features: Advanced ambient lighting with startup effect
    Ventilated front mesh panel
    Engineered for cooling performance
    Air guide directs air towards components
    Dust filters: PSU (Bottom)
    Tool-less push-to-lock panels & bottom filter
    Captive thumbscrews: Top Rad. Bracket / Air Guide / PSU Bracket
    Cable cover
    Cable organisers: 3 Velcro straps + 3 Cable Aligners
  • Accessories: Accessory Box
    Manual
    Red Note
  • Package Weight: 13.7000 kg
  • Warranty: 2 Years
