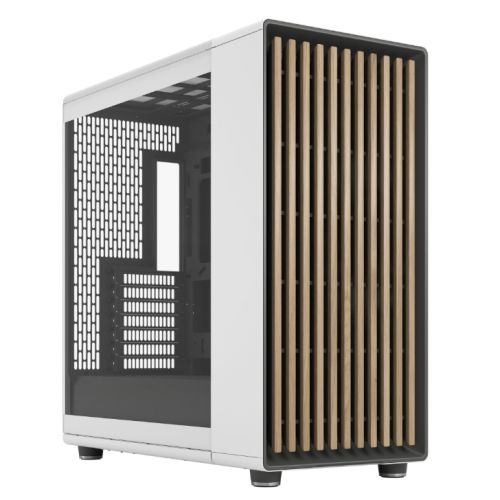

Fractal Design North XL RC Chalk White (TG Clear) Case w/ Clear Glass Window, ATX, 3 PWM Fans, USB-C, Oak Front, Reverse Connector/Asus BTF Compatible

Fractal Design North XL RC Chalk White (TG Clear) Case w/ Clear Glass Window, ATX, 3 PWM Fans, USB-C, Oak Front, Reverse Connector/Asus BTF Compatible

FRACTAL
View full details



Transformative design in a generous format


North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience. The North XL RC version offers compatibility with reverse connector motherboards for an even cleaner finish.

  • Enhance the look of your gaming station with FSC-certified wood and alloy details
  • Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
  • Get a head start on your build with the three included 140 mm Aspect PWM fans





Natural design

Enjoy a sophisticated looking case which integrates effortlessly into your living space
Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details





Gaming ready

Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
Make the most of your build with a generous layout compatible with ATX hidden connector motherboard





Extended cooling
  • Supports front radiators up to 420 mm and top radiators up to 360 mm
  • Get a head start on your build with the three included 140 mm Aspect PWM fans





Ventilated performance

Natural ventilation through an open front and a stylishly integrated mesh top panel





Easy access

Remove the side panels, unclip the front and pop off the top panel using an integrated tab





Build versatility
  • Make the most of your building experience with an intuitive interior layout
  • Create a clean build with a case designed for reverse connector motherboards and with ample cable routing space.






Description

Specification

  • Form Factor: ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: ATX and mATX with rear-facing connectors / Mini-ITX
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1x USB 3.1 Gen2 Type-C
    2 x USB 3.0
    Audio & Mic
  • Drive Bays: Dedicated 2.5"" drive mounts: 2
    Combined 3.5/2.5"" drive mounts: 2 (included)
  • Expansion Slots: 7 expansion slots
  • Cooling System: Included Fans:
    Front: 3 x Aspect 140mm PWM fans

    Fan Mounts:
    Front: 3 x 120 / 3 x 140 mm
    Top: 3 x 120 / 2 x 140 / 2 x 180 mm
    Rear: 1 x 120 mm
  • .:
    Radiator options:
    Front: Up to 420 mm
    Top: Up to 360 mm
    Rear: Up to 120 mm
    Bottom: N/A
  • #Hide#Back-Connect MB Support: Yes (Back-Connect)
  • Back-Connect MB Support: Yes
  • Colour: White
  • Material: "Left side panel: Clear Tempered Glass, 3 mm
    Right side panel: Steel"
  • Compatibility: GPU max length:
    413 mm with front fan mounted
    380 mm with 420/360 mm front mounted radiator

    CPU cooler max height:
    169 mm

    PSU max length:
    1 HDD Tray: 290 mm
    2 HDD Trays: 175 mm
  • Weight/Dimensions: 9.7 kg
    (LxWxH) 503 x 240 x 509 mm
    w/o feet/protrusions/screws: 490 x 240 x 490 mm
  • Additional Features: See Overview
  • Accessories: Accessory Box
    User Manual
  • Package Weight: 11.6000 kg
  • Warranty: 2 Years
