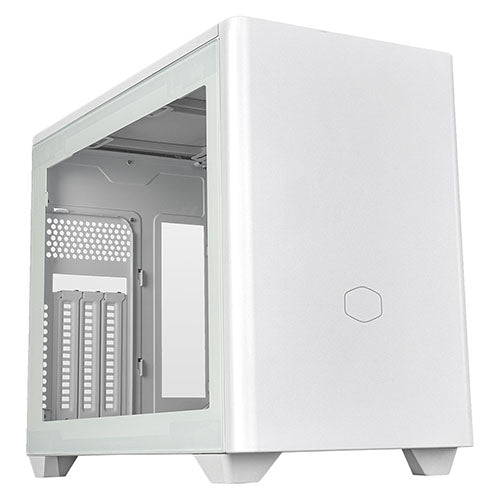

Cooler Master MasterBox NR200P V2 Case w/ Glass or Mesh Side, Mini ITX, Requires SFX/SFX-L PSU, 1x Fan, USB-C, 356mm GPU & 280mm Radiator Support, White

Cooler Master MasterBox NR200P V2 Case w/ Glass or Mesh Side, Mini ITX, Requires SFX/SFX-L PSU, 1x Fan, USB-C, 356mm GPU & 280mm Radiator Support, White

COOLER MASTER
View full details



Compact yet powerful

  • Stay cool under pressure
  • Optimized GPU performance
  • Comprehensive GPU support
  • Easy, tool-free access
  • USB 3.2 Gen 2x2 Type C support
  • Refreshed NCORE style




Build Small. Play Big.

This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.





Stay cool under pressure

No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.





Compact yet powerful

An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.





Optimized GPU Performance

An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.





Comprehensive GPU Support

Includes vertical mounting options, a custom PCle 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.





USB 3.2 gen 2x2 Type C support

A USB 3.2 Gen 2x2 Type C port is built into the 1/0 panel with up to 20Gbps transfer speeds.





Easy, Tool-Free Access

All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.





The New NCORE Style

An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.


Description

Specification

  • Form Factor: Mini ITX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: Mini ITX (Max 170 x180mm)
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1x USB 3.2 Gen 2x2 Type-C
    2 x USB 3.2 Gen 1 Type-A
    1 x 3.5mm Headset Jack (Audio+Mic)
  • Drive Bays: "1 x 3.5"" Drive Bays (Max. 2, remove bottom fan)
    1 x 2.5"" / 3.5"" Drive Bays (Combo)
    1 x 2.5"" Drive Bays (Max. 2)"
  • Expansion Slots: 3 Expansion Slots
  • Cooling System: "Included:
    Bottom: 1 x 120mm PWM SickleFlow fan

    Fan Mounts:
    Top: 2 x 120/ 2 x 140mm
    Bottom: 2 x 120mm (1x max 15mm, w/o 3.5"" HDD at the bottom)"
  • .:
    Radiator Options:
    Top: 240/280 mm
  • Colour: White
  • Material: "Exterior: SGCC Steel, Mesh, ABS Plastic
    Left Side: Tempered Glass or Steel Mesh (both included)"
  • Compatibility: "GPU Clearance:
    Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot)
    Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)

    CPU Clearance:
    67 mm

    PSU Clearance:
    SFX, SFX-L required
    130 mm"
  • Weight/Dimensions: (LxWxH) 372 x 185 x 292 mm (Incl. Protrusions)
    (LxWxH) 360 x 185 x 274 mm (Excl. Protrusions)
    Volume: 18.25L
  • Additional Features: "New NCORE Style Redesign
    Easy, Tool-Free Access
    Dust Filters: Bottom, Left, Right, Top Panels
    Both Tempered Glass & Steel Mesh Side Panel Included

    See Overview for more details"
  • Accessories: 1 x PCIe 4.0 x16 riser cable
    1 x GPU Holder
  • Package Weight: 6.6000 kg
  • Warranty: 2 Years
