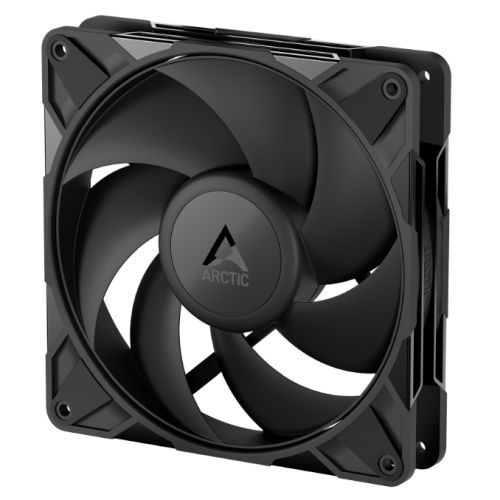

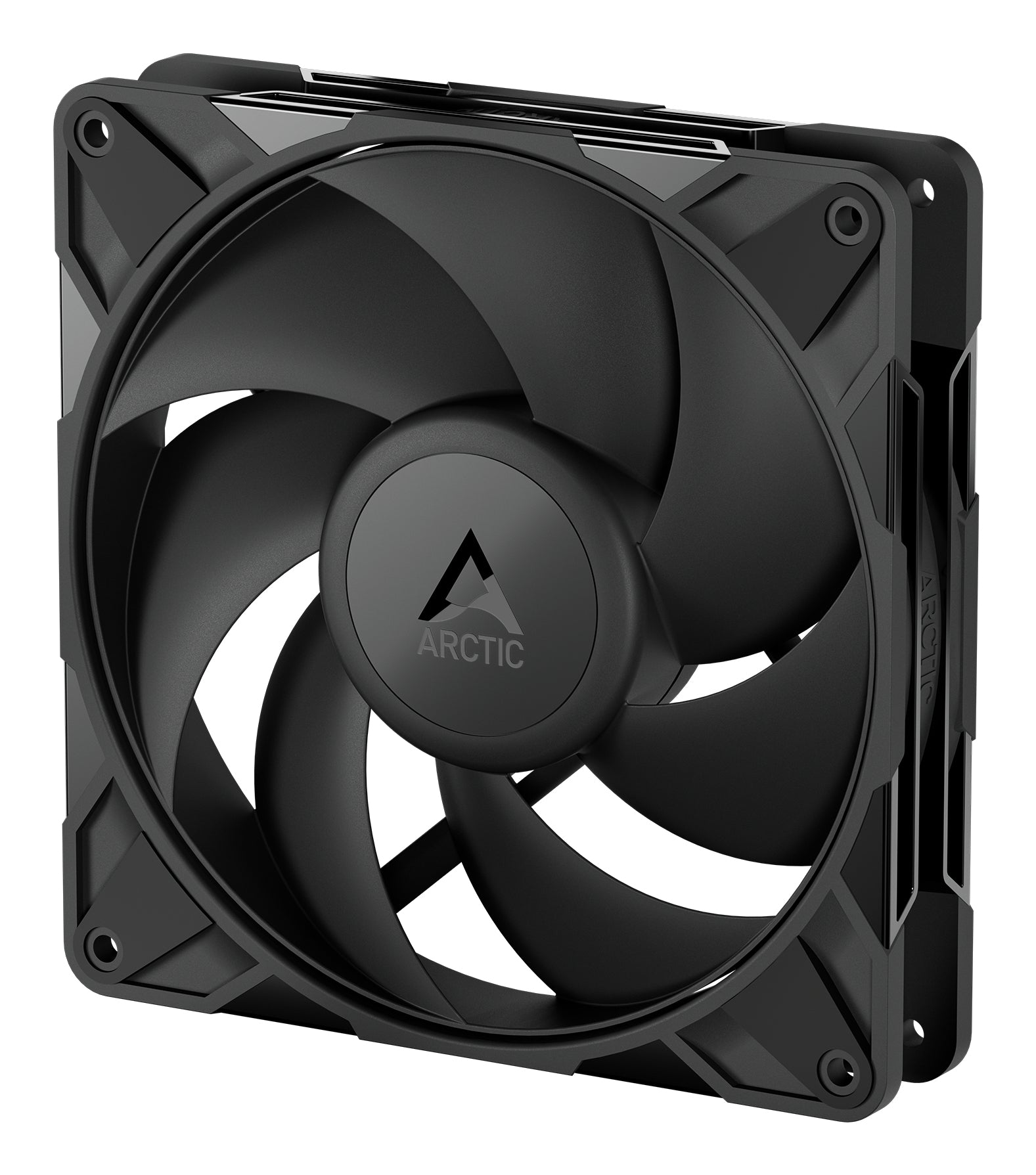

ARCTIC P14 Pro PST CO 14cm PWM Case Fan w/ Cable Splitter for Continuous Operation, Dual Ball Bearing, 400-2500 RPM, Black

ARCTIC P14 Pro PST CO 14cm PWM Case Fan w/ Cable Splitter for Continuous Operation, Dual Ball Bearing, 400-2500 RPM, Black

ARCTIC
View full details



P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation

  • Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
  • Airflow:1107 cfm | 186 m3/h
  • Static Pressure: 5.2 mmH2O
  • Fan Bearing: Dual Ball Bearing
  • Cable Length: 400 mm + 80 mm Daisy-Chain Cable
  • Connector: 4-Pin Fan Plug + 4-Pin Socket




Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.





Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.





Optimized Bearing-Shaft Design (DBB)

A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.





Automated Two-Plane Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.





SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.





More Power - Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.





Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.





PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.





6-Year Warranty - Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn't just a promise - it's a testament to our confidence in their durability.


Description

Specification

  • Type: 140mm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Rotation Speed: 400 - 2500 RPM
    0 RPM below 5% PWM
  • Fan Bearing: Dual Ball Bearing
  • Air Flow: 110 CFM
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting: -
  • Dimensions: 140 x 140 x 27 mm
    Cable Length: 400 mm + 80 mm Daisy-Chain Cable
  • Weight: 185 g
  • Power: Typical Voltage: 12 V DC
    Starting Voltage: 5 V DC
    Current: 0.35 A
  • Additional Features: Designed for for Continuous Operation
    Revised Fan Blade Design
    Optimized Bearing-Shaft Design
    Automated Two-Plane Balancing
    SOTA Microcontroller
    Minimum Gap Dimensions for Maximum Efficiency
    PST – PWM-Based Synchronized Fan Control
    Static Pressure: 5.2 mmH2O
  • Package Type: Retail
  • Warranty: 6 Years
  • #Hide#Colour: Black
