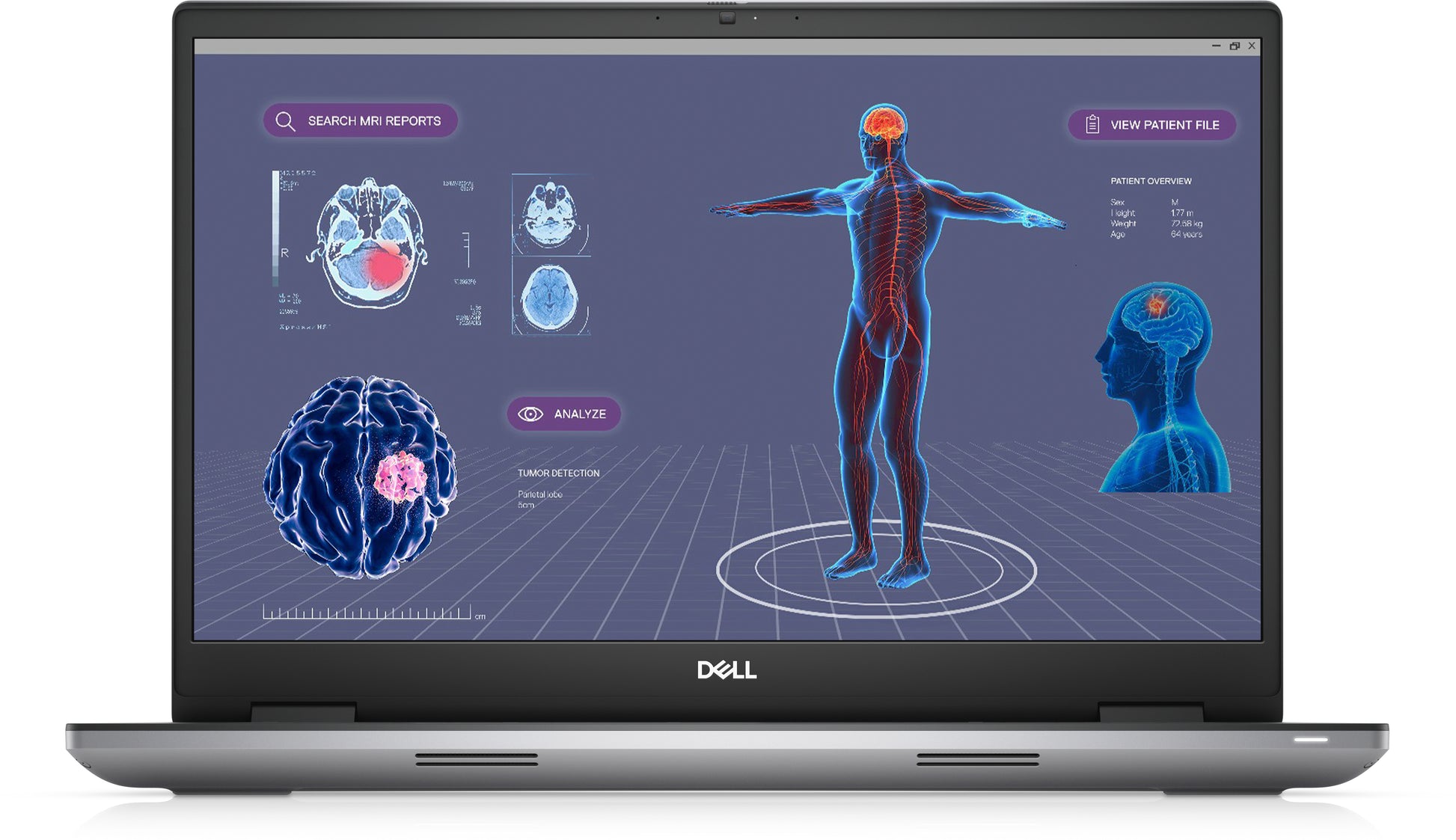

DELL Precision 7780 Intel® Core™ i9 i9-13950HX Mobile workstation 43.9 cm (17.3") Full HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Grey

Design

• Product type: Mobile workstation
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Business
• Intel® vPro™ Platform Eligibility: Yes

Display

• Display diagonal: 43.9 cm (17.3")
• Display resolution: 1920 x 1080 pixels
• Touchscreen: No
• HD type: Full HD
• Panel type: WVA
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 500 cd/m²
• Pixel density: 127 ppi
• RGB colour space: DCI-P3
• Colour gamut: 99%
• Maximum refresh rate: 60 Hz
• Contrast ratio (typical): 1000:1

Processor

• Processor family: Intel® Core™ i9
• Processor manufacturer: Intel
• Processor model: i9-13950HX
• Processor generation: 13th gen Intel® Core™ i9
• Processor cores: 24
• Processor boost frequency: 5.5 GHz
• Efficient-core boost frequency: 4 GHz
• Processor cache: 36 MB
• Processor cache type: Smart Cache
• Bus type: DMI4
• Configurable TDP-down: 45 W

Memory

• Internal memory: 32 GB
• Maximum internal memory: 128 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600 MHz
• Memory form factor: CAMM module
• Memory layout (slots x size): 1 x 32 GB

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD, SDHC, SDXC

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA RTX 3500 Ada
• On-board graphics card model: Intel® UHD Graphics
• Discrete graphics card memory: 12 GB
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel

Audio

• Audio chip: Realtek ALC3281
• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution (numeric): 0.92 MP
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD
• Video capturing speed: 30 fps
• Infrared (IR) camera: Yes

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
• Wi-Fi data rate (max): 2400 Mbit/s
• Antenna type: 2x2
• WLAN controller model: Intel Wi-Fi 6E AX211
• WLAN controller manufacturer: Intel
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Bluetooth: Yes

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• Power adapter barrel connector: 7.4 mm
• USB Type-C DisplayPort Alternate Mode: Yes
• PowerShare: Yes
• Number of USB ports with PowerShare support: 1

Performance

• Ambient light sensor: Yes
• Accelerometer: Yes
• Hall sensor: Yes

Keyboard

• Numeric keypad: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard number of keys: 100
• Keyboard language: UK English

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Operating system language: Multilingual
• Trial software: No Microsoft Office License Included 30 day Trial Offer Only

Processor special features

• Intel Flex Memory Access: Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• CPU configuration (max): 1
• Embedded options available: No
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel Virtualization Technology (VT-x): Yes

Battery

• Battery capacity: 93 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 6
• Battery voltage: 11.55 V
• Battery recharge time: 3 h
• Fast charging: Yes
• Battery charge indicator: Yes
• Battery weight: 410 g

Power

• AC adapter power: 240 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 12.3 A
• DC-in jack: Yes

Security

• Cable lock slot: Yes
• Cable lock slot type: Wedge
• Smart card reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes

Operational conditions

• Operating temperature (T-T): 0 - 35 °C
• Storage temperature (T-T): -40 - 65 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 0 - 95%
• Operating altitude: -15.2 - 3048 m
• Non-operating altitude: -15.2 - 10668 m
• Operating shock: 110 G
• Non-operating shock: 160 G
• Operating vibration: 0.66 G
• Non-operating vibration: 1.3 G

Weight & dimensions

• Weight: 3.02 kg
• Width: 398 mm
• Depth: 265 mm
• Height (front): 2.6 cm
• Height (rear): 2.67 cm

Carbon footprint

• Total carbon footprint (kg of CO2e): 510
• Total carbon emissions, standard deviation (kg of CO2e): 104
• Carbon emissions, manufacturing (kg of CO2e): 404.12
• Carbon emissions, logistics (kg of CO2e): 18.547
