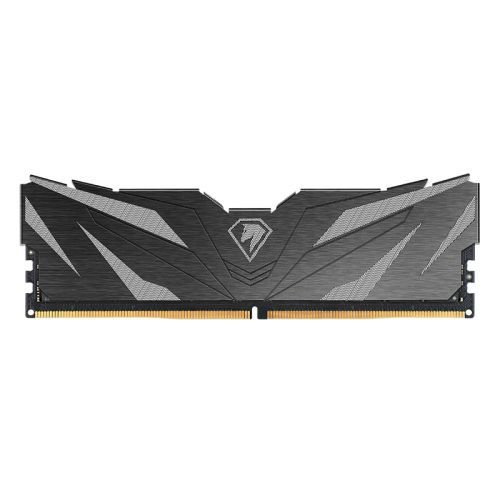

Netac Shadow II Black 16GB, DDR5, 6000MHz, CL38, XMP 3.0, ECC, PMIC, DIMM Memory

Netac Shadow II Black 16GB, DDR5, 6000MHz, CL38, XMP 3.0, ECC, PMIC, DIMM Memory

NETAC
View full details



Shadow II DDR5 Black

Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such

  • Energy Saving with PMIC independent power management chips
  • Specially designed aluminium alloy heat Spreader
  • BL16, BC8 OTF, BL32, BL32 OTF supported
  • Same Bank Refresh
  • Input Clock Frequency Change
  • Multi-Purpose Command (MPC)
  • Per DRAM Addressability (PDA)
  • Connectivity Test (CT) / ZQ Calibration
  • DFE (Decision Feedback Equalization) for DQ
  • DQS Interval Oscillator
  • On-Die ECC
  • CRC (Cyclic Redundancy Check)
  • Package Output Driver Test Mode
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
  • Limited Lifetime Warranty


Description

Specification

  • Series: Netac Shadow II
  • DDR Type: DDR5
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • #Hide#Total Capacity: 16GB Total
  • Speed: 6000 MHz
  • Compliance: PC5-48000
  • Pins: 288-pin
  • CAS Latency: CL38
  • Intel XMP Certified: Yes (Intel XMP)
  • Data Integrity Check: On-die ECC
  • Voltage: 1.35V
  • Timings: 38-48-48-96
  • Heatsink: Yes (Heatsink)
  • Heatsink Details: Aluminium Alloy Heat Spreader
  • #Hide#LED Lighting: No
  • LED Lighting: -
  • Additional Information: See Overview
  • Package Type: Retail
  • Package Weight: 0.0750 kg
  • Warranty: Lifetime
