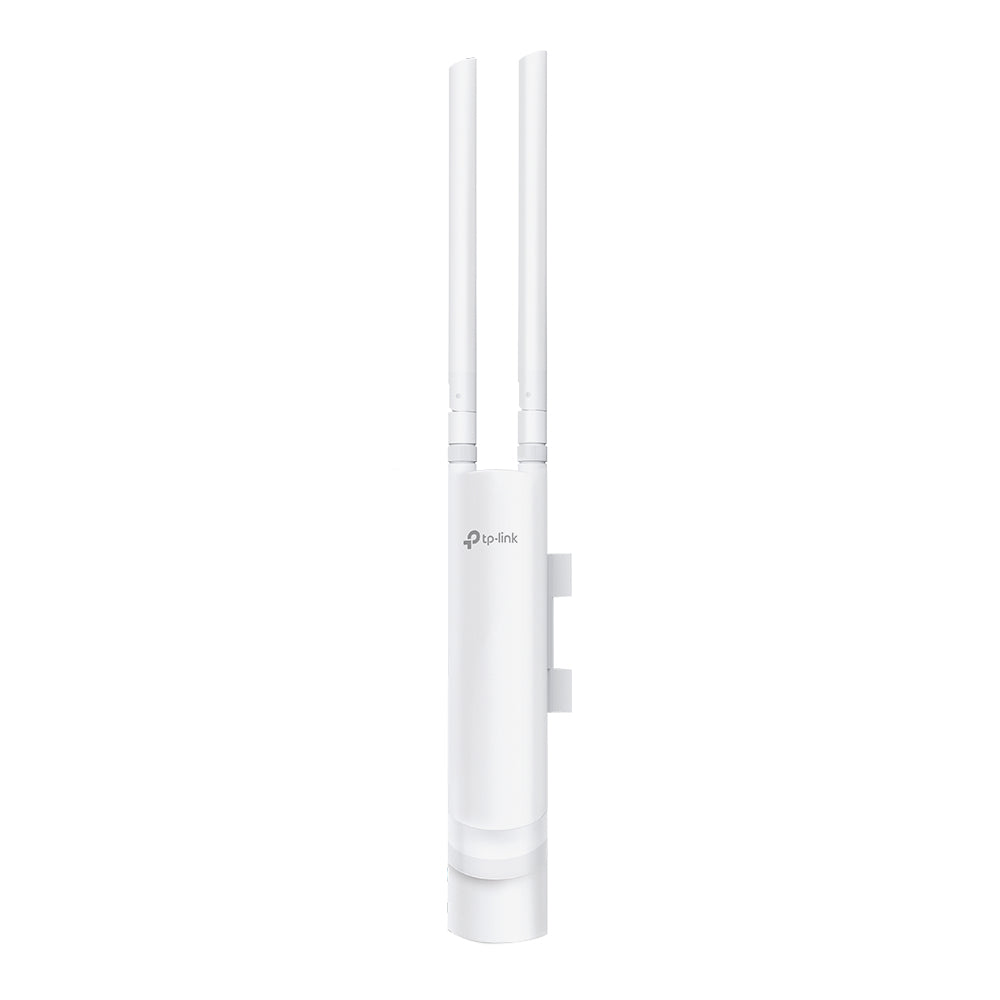

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

£76.99
£76.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

    Features

    • 2.4 GHz: Yes
    • 5 GHz: Yes
    • 6 GHz: No
    • Maximum data transfer rate: 1200 Mbit/s
    • Maximum data transfer rate (2.4 GHz): 300 Mbit/s
    • Maximum data transfer rate (5 GHz): 867 Mbit/s
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • Frequency band: 2.4 - 5 GHz
    • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
    • MIMO: Yes
    • MIMO type: Multi User MIMO
    • Wi-Fi Multimedia (WMM)/(WME): Yes
    • VLAN support: Yes
    • Virtual LAN features: VLAN mapping
    • Rate limiting: Yes
    • Band steering: Yes
    • Airtime Fairness (ATF): Yes
    • Quality of Service (QoS) support: Yes
    • BeamForming: Yes
    • Transmitting power (CE): 27 dBm
    • Transmitting power (FCC): 22 dBm

    Security

    • Security algorithms: 802.1x RADIUS
    • MAC address filtering: Yes
    • Service Set Identifier (SSID) features: Multiple SSIDs
    • Number of SSID supported: 16
    • Access Control List (ACL): Yes

    Management features

    • Web-based management: Yes
    • Syslog: Yes

    Ports & interfaces

    • Ethernet LAN (RJ-45) ports: 1
    • USB 2.0 ports quantity: 0

    Power

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) type supported: Passive PoE
    • Output voltage: 24 V
    • Power consumption (typical): 10.5 W

    Design

    • Placement: Pole, Wall
    • Product colour: White
    • International Protection (IP) code: IP65
    • Reset button: Yes

    Antenna

    • Antenna type: External
    • Antenna direction type: Omni-directional
    • Antenna features: Detachable antenna
    • Antennas quantity: 2
    • Antenna gain level (max): 4 dBi

    Performance

    • Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

    Certificates

    • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

    Weight & dimensions

    • Width: 215 mm
    • Depth: 46 mm
    • Height: 27 mm

    Packaging data

    • Package width: 140 mm
    • Package depth: 270 mm
    • Package height: 100 mm
    • Package weight: 640 g

    Packaging content

    • Quantity per pack: 1 pc(s)
    • AC adapter included: Yes
    • Mounting kit: Yes
    • Quick start guide: Yes

    Operational conditions

    • Operating relative humidity (H-H): 10 - 90%
    • Operating temperature (T-T): -30 - 70 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Storage relative humidity (H-H): 5 - 90%

    Logistics data

    • Harmonized System (HS) code: 85176990

    Sustainability

    • Sustainability compliance: Yes
