APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

£105.99
£105.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details

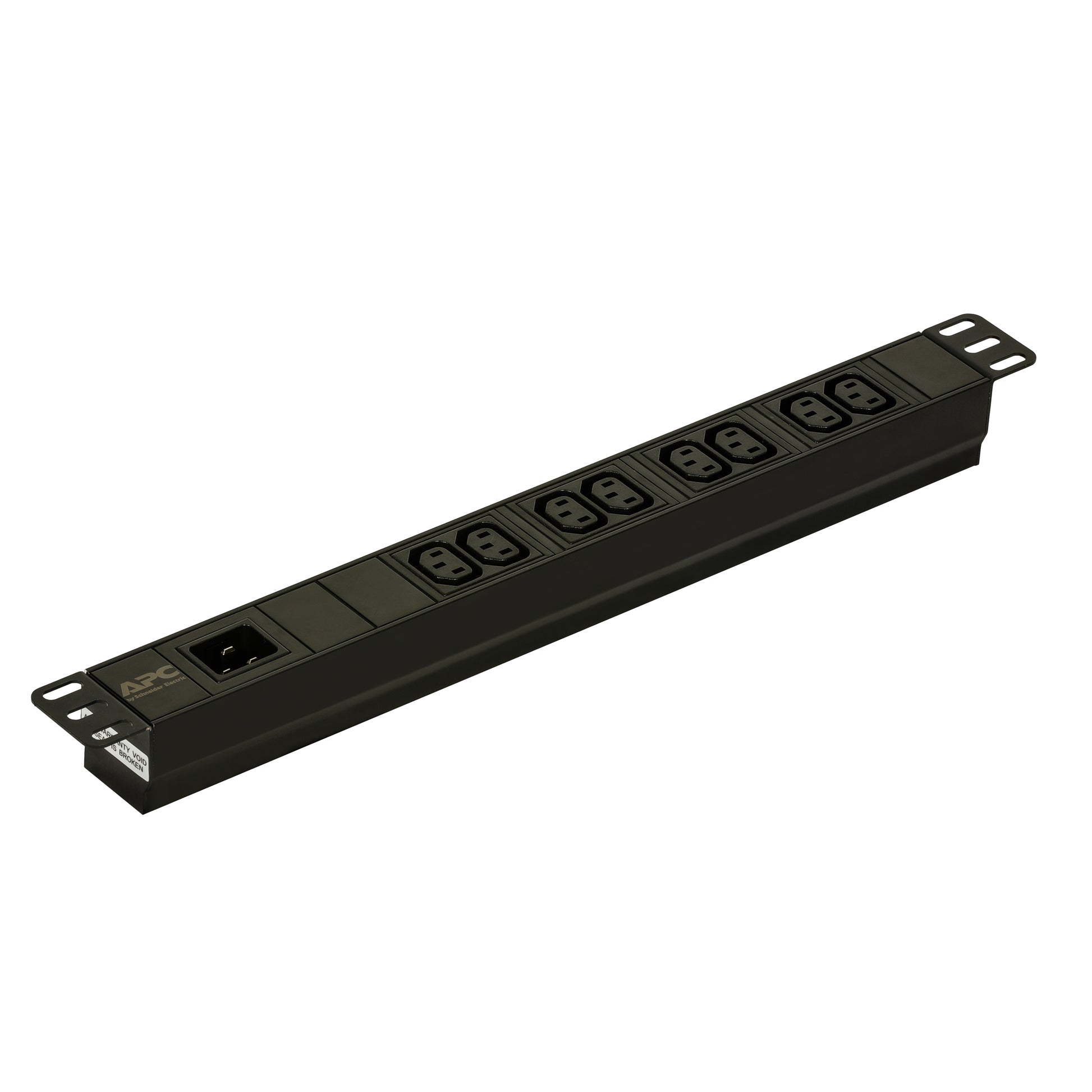

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

    Design

    • PDU types: Basic
    • Rack capacity: 1U
    • Type: Single-phase
    • Mounting: Horizontal
    • Housing material: Aluminium
    • Product colour: Black
    • On/off switch: No

    Ports & interfaces

    • AC outlets quantity: 8 AC outlet(s)
    • AC outlet types: C13 coupler
    • Power plug: C20 coupler

    Features

    • Daisy chain: No
    • Cable length: 2.5 m

    Power

    • Nominal input voltage: 200/208/230 V
    • Maximum current: 16 A
    • AC input frequency: 50 - 60 Hz
    • Nominal output voltage: 208/230 V
    • Load capacity: 3680 VA
    • Maximum input current per phase: 16 A
    • Maximum power: 3680 W

    Certificates

    • Compliance certificates: RoHS
    • Certification: CE, TUV

    Operational conditions

    • Operating temperature (T-T): -5 - 45 °C
    • Storage temperature (T-T): -25 - 65 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 3000 m
    • Non-operating altitude: 0 - 15000 m

    Weight & dimensions

    • Width: 482 mm
    • Depth: 44 mm
    • Height: 44 mm
    • Weight: 580 g

    Packaging content

    • Manual: Yes

    Packaging data

    • Package weight: 1.18 kg
    • Package width: 560 mm
    • Package depth: 80 mm
    • Package height: 150 mm
