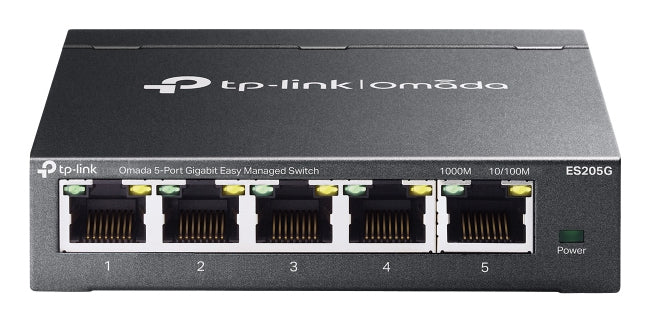

TP-Link Omada 5-Port Gigabit Easy Managed Switch

TP-Link Omada 5-Port Gigabit Easy Managed Switch

£29.99
£29.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

    Management features

    • Switch type: Managed
    • Quality of Service (QoS) support: Yes
    • Cloud-managed: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 5
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

    Network

    • Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
    • 10G support: No
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes
    • VLAN support: Yes
    • Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

    Data transmission

    • MAC address table: 8000 entries
    • Switching capacity: 10 Gbit/s
    • Forwarding rate: 7.4 Mpps
    • Store-and-forward: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 15
    • Packet buffer memory: 4 MB

    Security

    • DHCP features: DHCP client
    • IGMP snooping: Yes
    • Loop protection: Yes

    Design

    • Product colour: Black
    • Reset button: Yes
    • LED indicators: Yes
    • Wall mountable: Yes

    Performance

    • Fanless: Yes

    Power

    • Power source: AC/DC
    • Power supply included: Yes
    • DC input voltage: 5 V

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Weight & dimensions

    • Width: 100 mm
    • Depth: 98 mm
    • Height: 25 mm

    Packaging content

    • User guide: Yes

    Packaging data

    • Package type: Box

    Certificates

    • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
