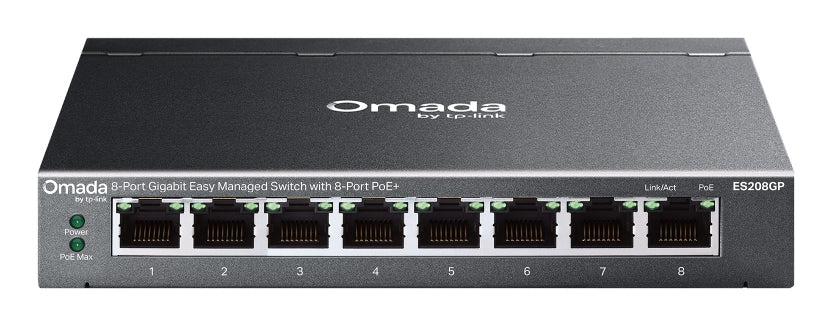

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

Management features

• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Cloud-managed: Yes

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

• Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• 10G support: No
• Port mirroring: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Broadcast storm control: Yes
• Auto MDI/MDI-X: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Auto-negotiation: Yes
• VLAN support: Yes
• Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
• Number of VLANs: 4000

Optical fiber

• Transmission distance (max): 0.25 km

Data transmission

• MAC address table: 8000 entries
• Switching capacity: 16 Gbit/s
• Forwarding rate: 11.904 Mpps
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 15000
• Packet buffer memory: 0.5 MB

Security

• DHCP features: DHCP client
• IGMP snooping: Yes
• Loop protection: Yes

Multicast features

• Multicast support: Yes

Design

• Rack mounting: Yes
• Form factor: DIN rail
• Product colour: Black
• LED indicators: Yes

Power

• Power source: DC
• DC input voltage: 53 V
• Input current: 1.31 A

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: PoE+
• Power over Ethernet plus (PoE+) ports quantity: 8
• Total Power over Ethernet (PoE) budget: 64 W

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

• Width: 158 mm
• Depth: 100.7 mm
• Height: 25.4 mm

Packaging content

• Cables included: Power
• Quick start guide: Yes

Certificates

• Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
