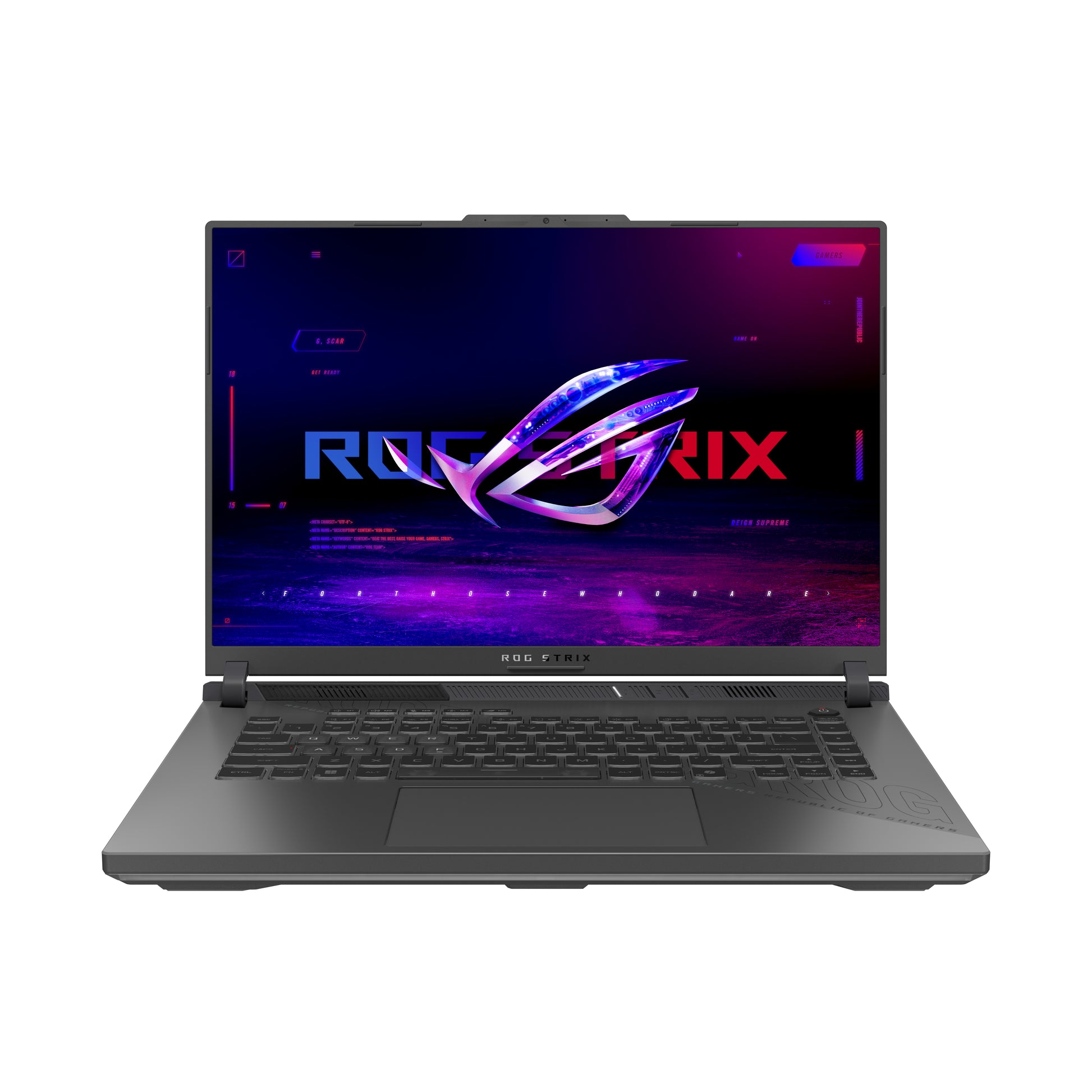

ASUS ROG Strix G16 G614PP-RV021W AMD Ryzen™ 9 8940HX Laptop 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 6E (802.11ax) Windows 11 Home Black, Grey

Design

• Product type: Laptop
• Product colour: Black, Grey
• Form factor: Clamshell
• Colour name: Eclipse Gray
• Housing material: Plastic
• Market positioning: Gaming
• Introduction year: 2025

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: WUXGA
• Panel type: IPS-Level
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300 cd/m²
• RGB colour space: sRGB
• Colour gamut: 100%
• Display response rise/fall: 3 ms
• Maximum refresh rate: 165 Hz
• Contrast ratio (typical): 1000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision

Processor

• Processor family: AMD Ryzen™ 9
• Processor manufacturer: AMD
• Processor model: 8940HX
• Processor frequency: 2.4 GHz
• Processor generation: AMD Ryzen 8000 Series
• Processor cores: 16
• Processor threads: 32
• Processor boost frequency: 5.3 GHz
• Processor cache type: L2 & L3
• L3 cache: 64 MB
• L2 cache: 16 MB

Memory

• Internal memory: 32 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5200 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16 GB
• Memory slots: 2x SO-DIMM

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: No

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• On-board graphics card model: AMD Radeon 610M
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 8 GB
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: AMD
• On-board graphics card family: AMD Radeon
• NVIDIA G-SYNC: Yes

Audio

• Audio system: Smart Amp
• Number of built-in speakers: 2
• Built-in microphone: Yes

Camera

• Front camera: Yes
• Front camera HD type: Full HD

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB4 Gen 3x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• Power adapter barrel connector: 6.0 mm
• USB Type-C DisplayPort Alternate Mode: Yes

Keyboard

• Numeric keypad: No
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Copilot key: Yes

Software

• Operating system installed: Windows 11 Home
• Operating system architecture: 64-bit
• Microsoft Copilot: Yes
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days
• Bundled software: Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Battery

• Battery capacity: 90 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Fast charging: Yes
• Fast charging time (50%): 30 min

Power

• USB Type-C charging port: Yes
• USB Type-C required charging power (min): 45 W
• USB Type-C required charging power (max): 100 W
• AC adapter power: 280 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 14 A
• AC adapter output voltage: 20 V
• DC-in jack: Yes
• USB Power Delivery (USB PD): Yes

Security

• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS, User

Weight & dimensions

• Weight: 2.5 kg
• Width: 354 mm
• Depth: 264 mm
• Height (front): 2.26 cm
• Height (rear): 3.04 cm

Packaging content

• AC adapter included: Yes
