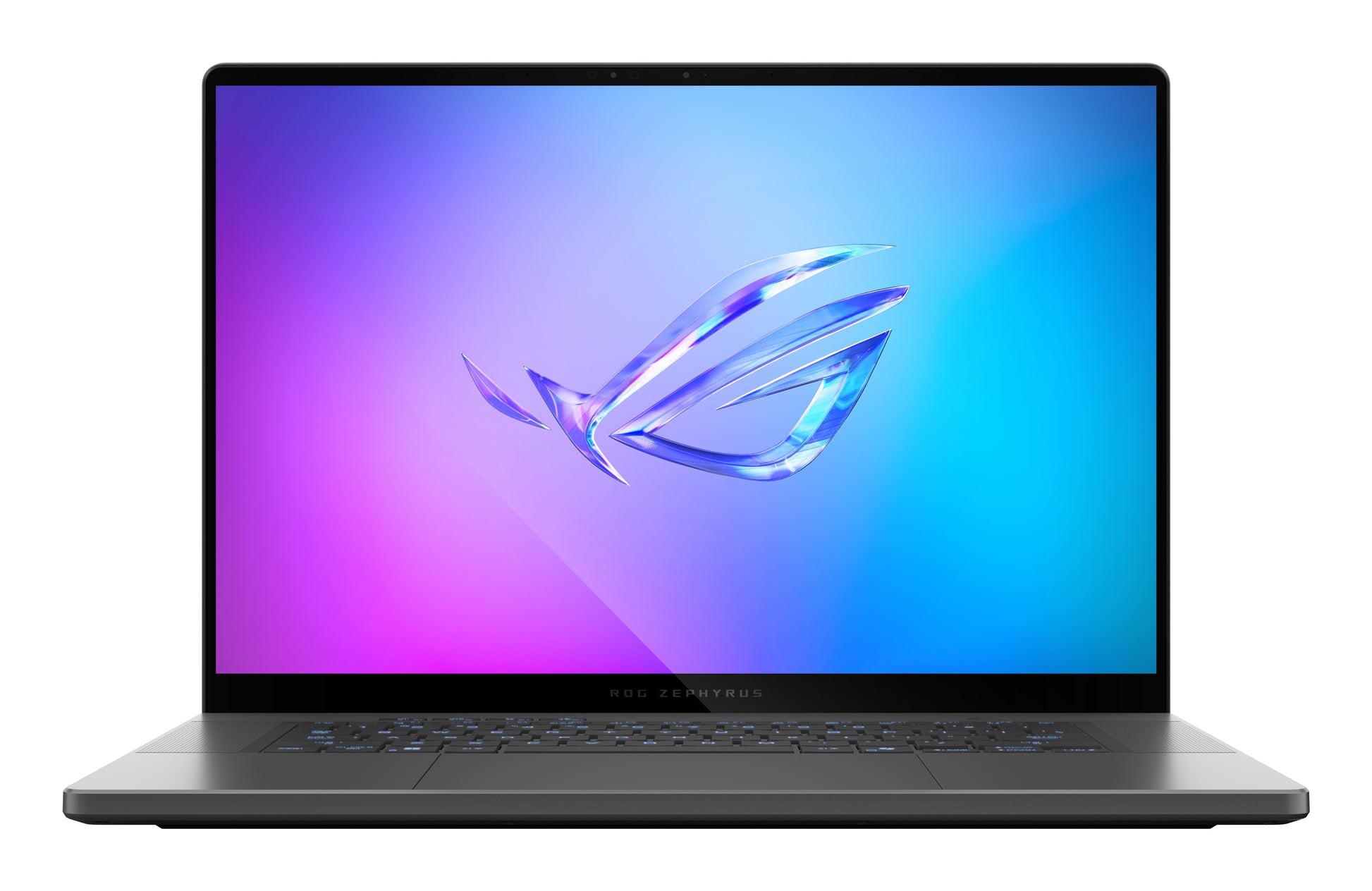

ASUS ROG Zephyrus G16 GU605CP-QR007W Intel Core Ultra 9 285H Laptop 40.6 cm (16") WQXGA 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home Grey

Design

• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Colour name: Eclipse Gray
• Housing material: Aluminium
• Market positioning: Gaming

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 2560 x 1600 pixels
• Touchscreen: No
• HD type: WQXGA
• Panel type: OLED
• Native aspect ratio: 16:10
• Display surface: Gloss
• Maximum display brightness (HDR): 500 cd/m²
• RGB colour space: DCI-P3
• Colour gamut: 100%
• Maximum refresh rate: 240 Hz
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision

Processor

• Processor family: Intel Core Ultra 9
• Processor manufacturer: Intel
• Processor model: 285H
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4 GHz
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Performance-core base frequency: 2.9 GHz
• Efficient-core base frequency: 2.7 GHz
• Low Power Efficient-core Base Frequency: 1000 MHz
• Processor cache: 24 MB
• Processor base power: 45 W
• Maximum turbo power: 115 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 99 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 77 TOPs

Memory

• Internal memory: 32 GB
• Maximum internal memory: 32 GB
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 7467 MHz
• Memory form factor: On-board
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• On-board graphics card model: Intel Arc 140T
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 8 GB
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics
• NVIDIA G-SYNC: Yes

Audio

• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 3

Camera

• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes

Performance

• Repairability index: 9.3

Keyboard

• Numeric keypad: No
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB

Software

• Operating system installed: Windows 11 Home
• Operating system architecture: 64-bit
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial
• Bundled software: Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Battery

• Battery capacity: 90 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Fast charging: Yes
• Fast charging time (50%): 30 min

Power

• USB Type-C charging port: Yes
• USB Type-C required charging power (min): 45 W
• USB Type-C required charging power (max): 100 W
• AC adapter power: 200 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 10 A
• AC adapter output voltage: 20 V
• USB Power Delivery (USB PD): Yes

Security

• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS, User

Weight & dimensions

• Weight: 1.85 kg
• Width: 354 mm
• Depth: 246 mm
• Height (front): 1.49 cm
• Height (rear): 1.64 cm

Packaging content

• AC adapter included: Yes
