Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS

Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS

£378.99
£378.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details

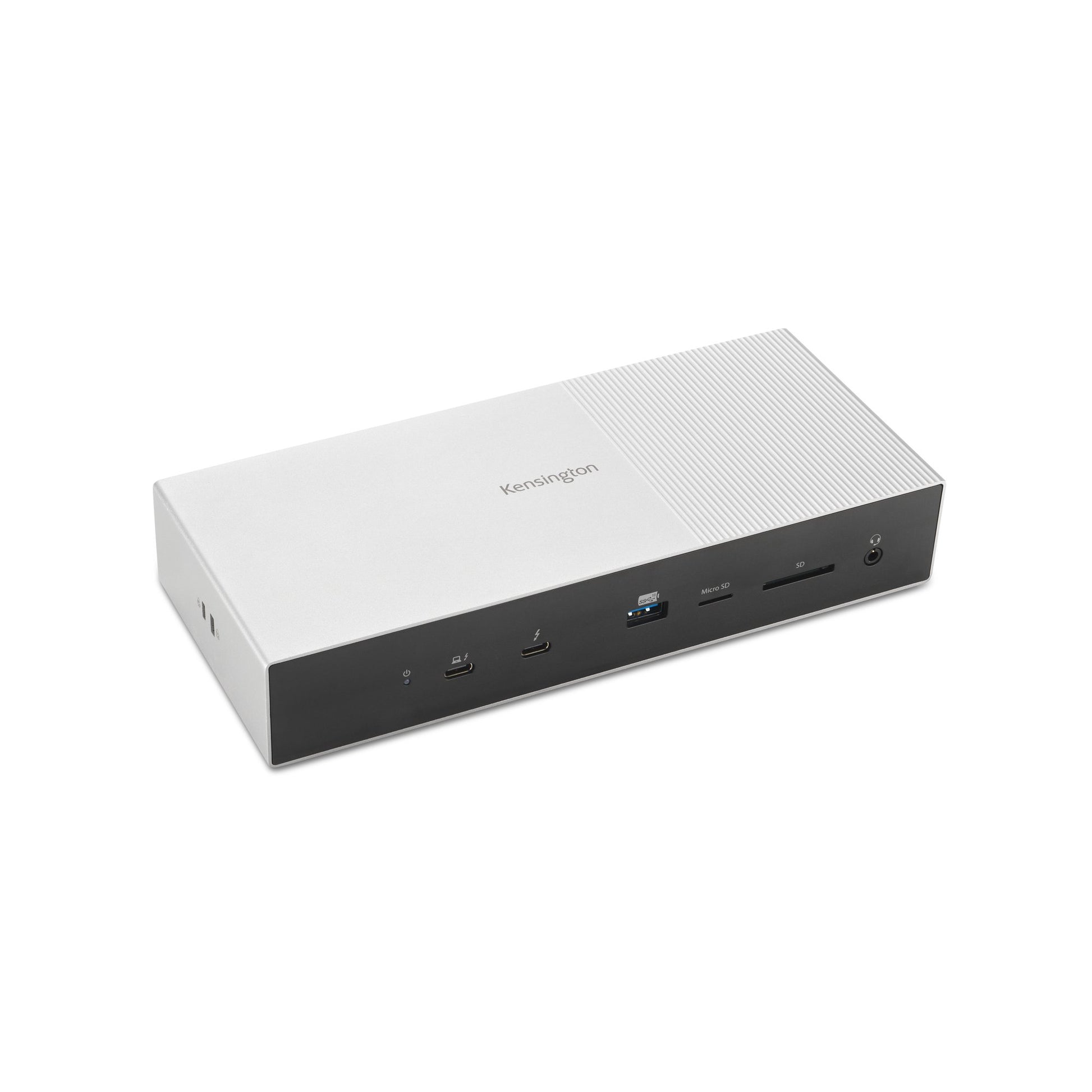

The SD5000T5 EQ Thunderbolt™ 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorks™ Software and is supported by a 3-year limited warranty. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.

    Ports & interfaces

    • Connectivity technology: Wired
    • Host interface: Thunderbolt 5
    • USB 2.0 ports quantity: 0
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
    • HDMI ports quantity: 0
    • Headphone outputs: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
    • USB Power Delivery (USB PD): Yes
    • USB Power Delivery revision: 3.1
    • USB Power Delivery up to: 140 W
    • Thunderbolt 5 ports quantity: 3
    • Combo headphone/mic port: Yes
    • Headphone connectivity: 3.5 mm
    • DC-in jack: Yes

    Network

    • Ethernet LAN: Yes
    • Ethernet LAN (RJ-45) ports: 1
    • Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

    Performance

    • Product colour: Black, Grey
    • Card reader integrated: Yes
    • Compatible memory cards: SD, MicroSD (TransFlash)
    • Data transfer rate: 80 Gbit/s
    • HD type: 8K Ultra HD
    • Maximum digital resolution: 7680 x 4320 pixels
    • Number of displays supported: 3
    • Maximum refresh rate: 540 Hz
    • Cable lock slot: Yes
    • Cable lock slot type: Nano, Kensington
    • LED indicators: Power
    • Plug and Play: Yes
    • Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
    • Country of origin: China

    Power

    • AC input voltage: 100 - 240 V
    • Input current: 2.5 A
    • Output voltage: 20 V
    • Output current: 9 A

    Software

    • Windows operating systems supported: Yes
    • Mac operating systems supported: Yes

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -18 - 60 °C
    • Operating relative humidity (H-H): 0 - 55%

    Weight & dimensions

    • Width: 226 mm
    • Depth: 97 mm
    • Height: 40 mm
    • Weight: 975 g

    Packaging data

    • Quantity per pack: 1 pc(s)
    • Package width: 125 mm
    • Package depth: 264 mm
    • Package height: 154 mm
    • Package weight: 1.9 kg

    Packaging content

    • Warranty card: Yes
    • Cables included: AC, Thunderbolt
    • AC adapter included: Yes
    • Quick start guide: Yes

    Technical details

    • Compliance certificates: CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA

    Logistics data

    • Products per master (outer) case: 6 pc(s)
    • Master (outer) case width: 282 mm
    • Master (outer) case length: 395 mm
    • Master (outer) case height: 352 mm
    • Master (outer) case gross weight: 12.1 kg

    Other features

    • Minimum system requirements: CPU: Intel Core HX series 13th /14th+
    • Compatible operating systems: Windows 11 (23H2 or later); macOS 14.5 or above
    • Special features: EQ
    • USB ports quantity: 3
