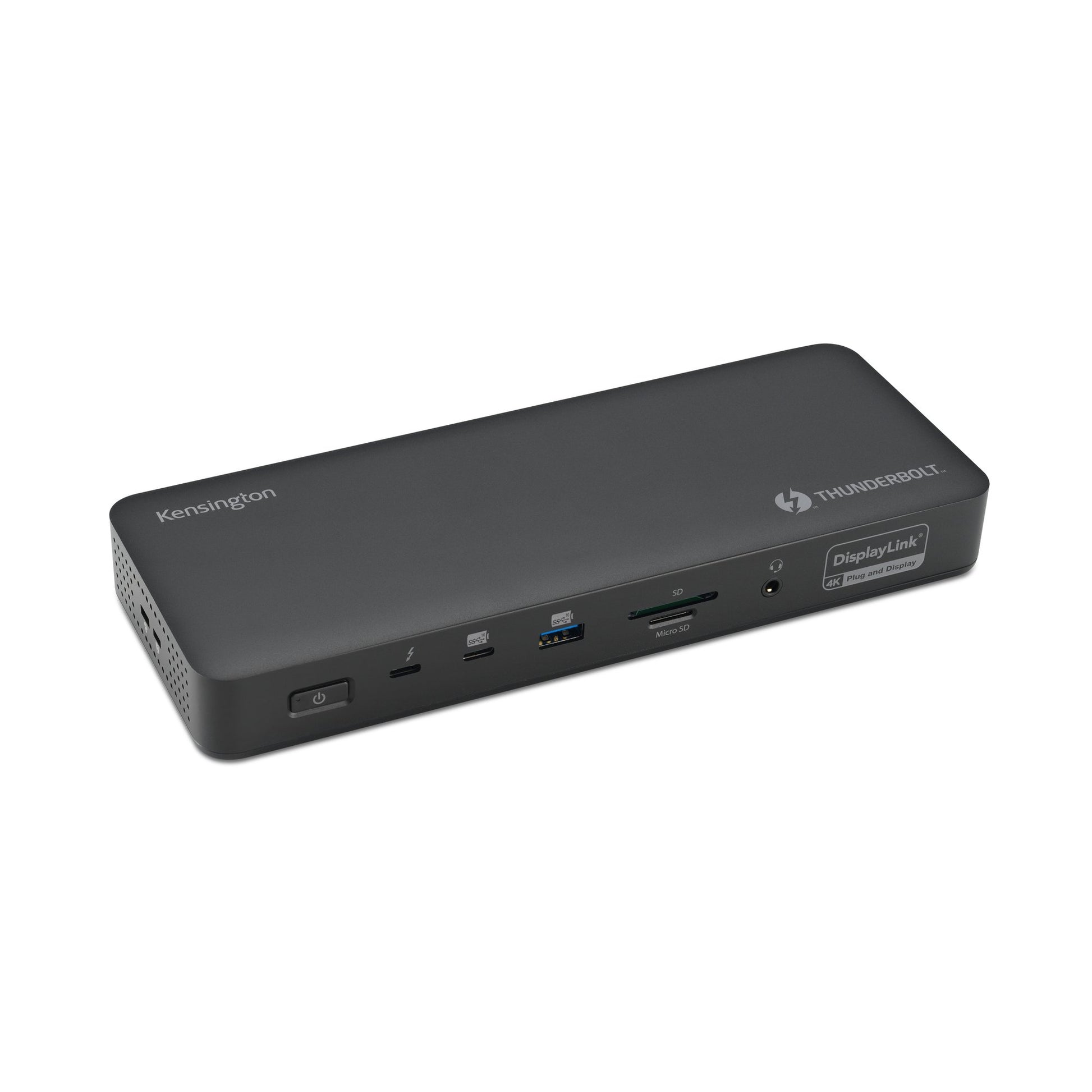

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology

£264.99
£264.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes security cable lock slots and 3-year limited warranty. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.

    Ports & interfaces

    • Connectivity technology: Wired
    • Host interface: Thunderbolt 4
    • USB 2.0 ports quantity: 0
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • HDMI ports quantity: 2
    • Headphone outputs: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
    • USB Power Delivery (USB PD): Yes
    • USB Power Delivery revision: 3.0
    • USB Power Delivery up to: 96 W
    • DisplayPorts quantity: 3
    • Thunderbolt 4 ports quantity: 2
    • Combo headphone/mic port: Yes
    • Headphone connectivity: 3.5 mm
    • DC-in jack: Yes

    Network

    • Ethernet LAN: Yes
    • Ethernet LAN (RJ-45) ports: 1
    • Ethernet LAN data rates: 100,1000,2500 Mbit/s

    Performance

    • Product colour: Black
    • Card reader integrated: Yes
    • Compatible memory cards: SD, MicroSD (TransFlash)
    • Data transfer rate: 40 Gbit/s
    • HD type: 8K Ultra HD
    • Maximum digital resolution: 7680 x 4320 pixels
    • Number of displays supported: 4
    • Cable lock slot: Yes
    • Cable lock slot type: Nano, Kensington
    • On/off switch: Yes
    • LED indicators: Yes
    • Plug and Play: Yes
    • Housing material: Aluminium, Plastic
    • Country of origin: Vietnam

    Power

    • Power source type: DC
    • AC input voltage: 100 - 240 V
    • Input current: 2.5 A
    • Output voltage: 21 V
    • Output current: 7.1 A

    Software

    • Windows operating systems supported: Yes
    • Mac operating systems supported: Yes
    • Other operating systems supported: ChromeOS

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -18 - 60 °C
    • Operating relative humidity (H-H): 0 - 55%

    Weight & dimensions

    • Width: 2250 mm
    • Depth: 85 mm
    • Height: 22 mm
    • Weight: 600 g

    Packaging data

    • Quantity per pack: 1 pc(s)
    • Package width: 245 mm
    • Package depth: 107 mm
    • Package height: 94 mm
    • Package weight: 1.5 kg

    Packaging content

    • Cables included: AC, Thunderbolt
    • AC adapter included: Yes
    • Quick start guide: Yes

    Technical details

    • Compliance certificates: CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA

    Logistics data

    • Master (outer) case width: 360 mm
    • Master (outer) case length: 495 mm
    • Master (outer) case height: 135 mm
    • Master (outer) case gross weight: 9.63 kg
    • Products per shipping (inner) case: 6 pc(s)

    Other features

    • Compatible operating systems: Chrome OS 116 or above; Windows 10 or above; macOS 11 or above
    • Special features: EQ
    • USB ports quantity: 4
