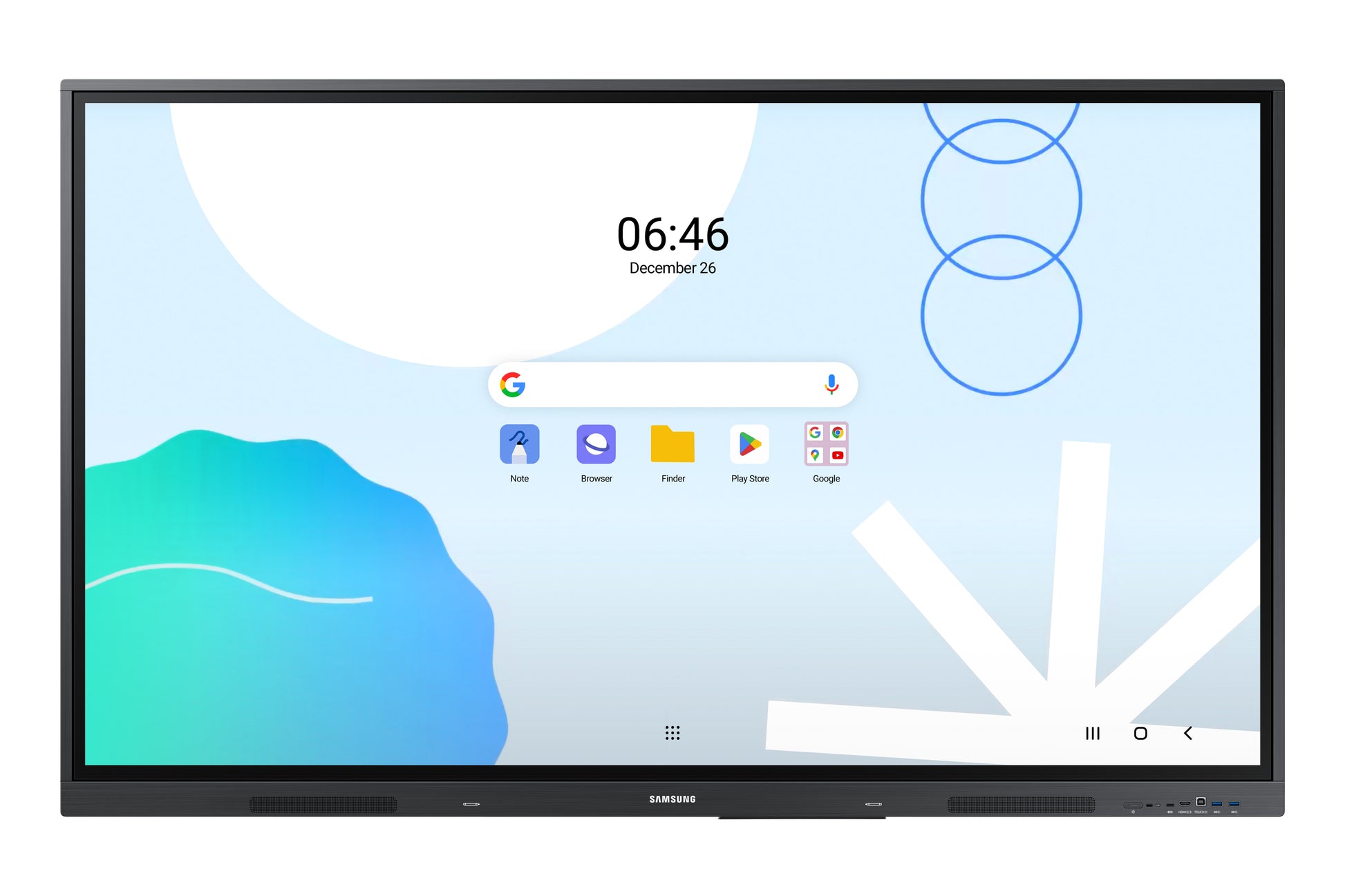

Samsung WA86D interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Grey

Display

• Display diagonal: 2.18 m (86")
• Touchscreen: Yes
• Display brightness: 400 cd/m²
• Display resolution: 3840 x 2160 pixels
• HD type: 4K Ultra HD
• Panel type: ADS
• Native aspect ratio: 16:9
• Contrast ratio (typical): 1200:1
• Response time: 8 ms
• Touch technology: Multi-touch
• Touchscreen type: Infrared
• Viewing angle, horizontal: 178°
• Viewing angle, vertical: 178°
• Pixel pitch: 429.6 x 429.6 mm
• Colour gamut: 72%
• Maximum pixel clock: 78 MHz
• Haze rate: 25%

Computer system

• Operating system installed: Android
• Operating system version: 13
• Maximum internal memory: 64 GB

Projector

• Built-in projector: No

Network

• Wi-Fi: Yes
• Bluetooth: Yes
• Ethernet LAN: Yes

Ports & interfaces

• HDCP: Yes
• HDCP version: 2.1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 2.0 ports quantity: 1
• HDMI ports quantity: 3
• HDMI version: 2.0
• Ethernet LAN (RJ-45) ports: 2
• Microphone connectivity: 3.5 mm
• Audio output: 1
• RS-232 ports: 2
• IR input port: Yes
• Video out: Yes

Ergonomics

• Product colour: Grey
• VESA mounting: Yes
• Panel mounting interface: 800 x 600 mm
• Certification: Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3\nIEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252

Performance

• Operating hours (hours/days): 12/7

Power

• Power consumption (typical): 486 W
• Power consumption (sleep): 0.5 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

• Width: 1957 mm
• Height: 1160 mm
• Depth: 99 mm
• Weight: 56.5 kg
• Bezel width: 1.64 cm

Packaging data

• Package width: 2110 mm
• Package depth: 225 mm
• Package height: 1283 mm
• Package weight: 74.3 kg
• Quantity per pack: 1 pc(s)
