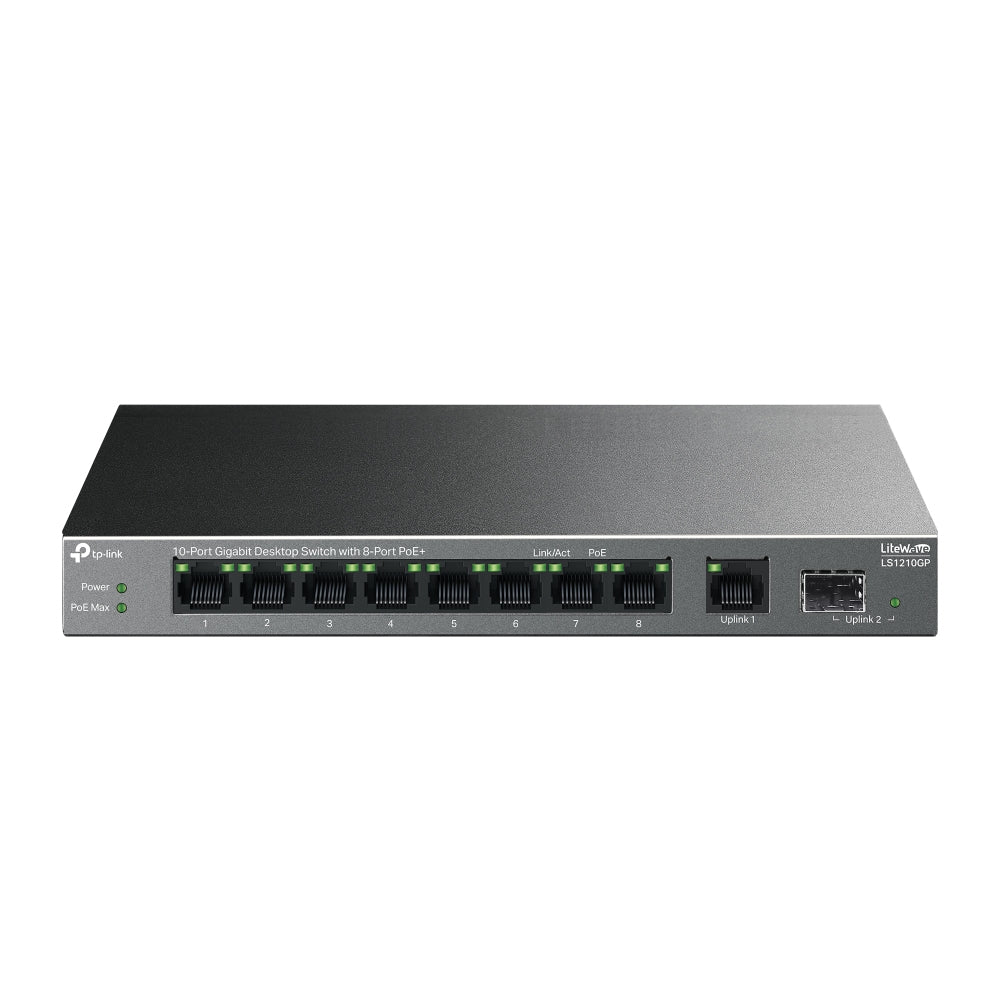

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+

£76.99
£76.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

    Management features

    • Switch type: Unmanaged
    • Quality of Service (QoS) support: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 9
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • SFP module slots quantity: 1

    Network

    • Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • 10G support: No
    • Cable types supported: Cat3, Cat4, Cat5, Cat5e
    • Flow control support: Yes
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes

    Data transmission

    • MAC address table: 4000 entries
    • Switching capacity: 20 Gbit/s
    • Forwarding rate: 14.88 Mpps
    • Store-and-forward: Yes
    • Jumbo frames: 16000

    Design

    • Product colour: Black
    • LED indicators: Yes

    Power

    • Power source: DC/PoE
    • Power supply included: Yes
    • AC input voltage: 220 V
    • AC input frequency: 50 Hz
    • DC input voltage: 53.5 V
    • Power consumption (max): 76.96 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 8
    • Power over Ethernet (PoE) power per port: 30 W
    • Total Power over Ethernet (PoE) budget: 61 W

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 261.66 BTU/h

    Weight & dimensions

    • Width: 209 mm
    • Depth: 126 mm
    • Height: 26 mm

    Packaging content

    • User guide: Yes

    Packaging data

    • Package type: Box

    Certificates

    • Certification: CE, FCC, RoHS
