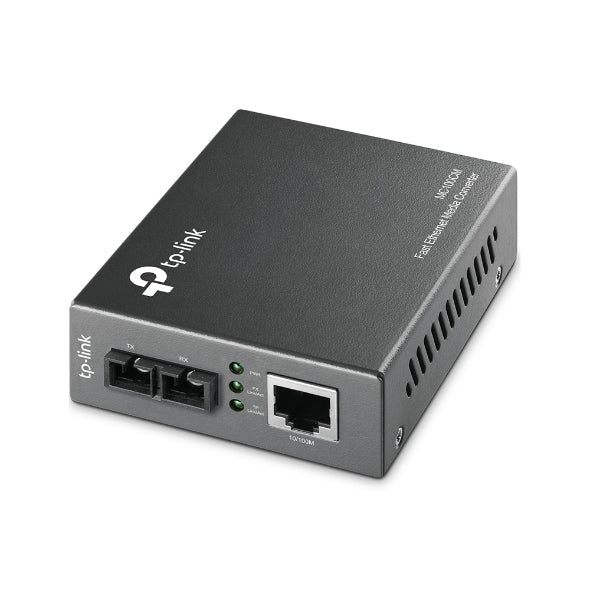

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black

£20.83ex VAT£24.99 inc VAT
£0.00 £20.83ex VAT£24.99 inc VAT
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

    Network

    • Maximum data transfer rate: 100 Mbit/s
    • Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • Ethernet LAN data rates: 10,100 Mbit/s
    • Auto MDI/MDI-X: Yes
    • Duplex system: Full, Half
    • Cable types supported: Cat3, Cat4, Cat5, Cat5e

    Performance

    • Maximum transfer distance: 2000 m
    • Wavelength: 1310 nm
    • Fiber mode structure: Multi-mode

    Features

    • Internal: No
    • LED indicators: Yes
    • Product colour: Black

    Ports & interfaces

    • Fiber optic connector: SC
    • Connectivity technology: Wired
    • Ethernet LAN (RJ-45) ports: 1
    • Fiber ports quantity: 1

    Power

    • Power consumption (max): 2.4 W

    Weight & dimensions

    • Width: 95 mm
    • Depth: 73 mm
    • Height: 27 mm

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Packaging content

    • Manual: Yes

    Certificates

    • Compliance certificates: RoHS

    Logistics data

    • Harmonized System (HS) code: 85176990
