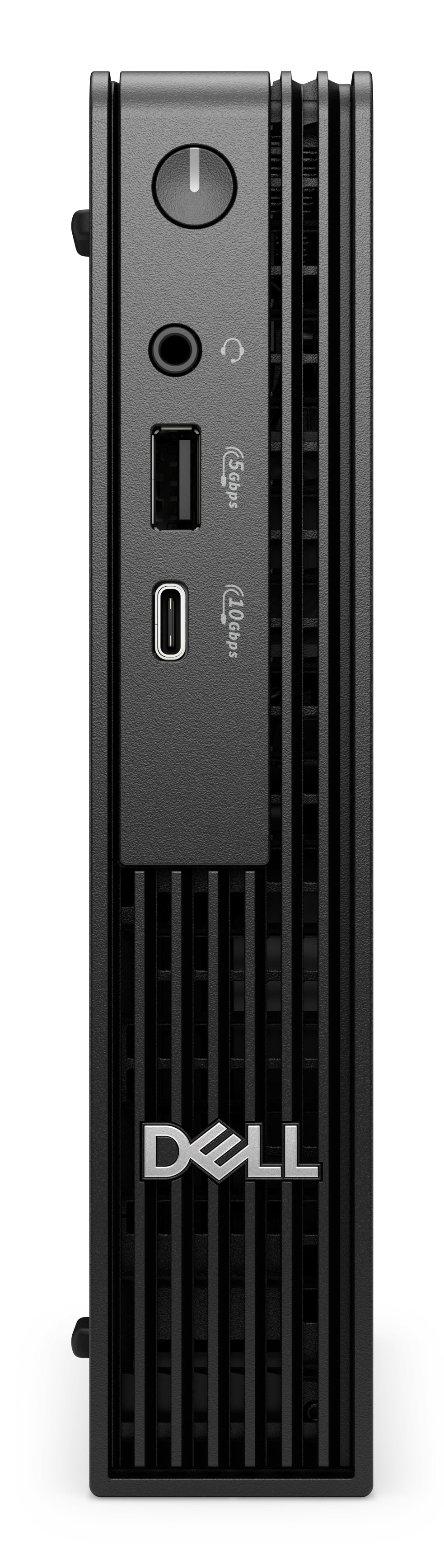

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

Processor

• Processor family: Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-14500T
• Processor generation: Intel® Core™ i5 (14th gen)
• Processor cores: 14
• Processor threads: 20
• Processor boost frequency: 4.8 GHz
• Performance cores: 6
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 4.8 GHz
• Efficient-core Max Turbo Frequency: 3.4 GHz
• Performance-core base frequency: 1.7 GHz
• Efficient-core base frequency: 1.2 GHz
• Processor cache: 24 MB
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Processor base power: 35 W
• Maximum turbo power: 92 W

Neural processor unit (NPU)

• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Memory

• Internal memory: 8 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 8 GB
• Memory slots: 2x SO-DIMM
• Non-ECC: Yes
• Memory channels: Single-channel
• Memory data transfer rate: 4800 MT/s

Storage

• Total storage capacity: 512 GB
• Optical drive type: No
• Storage media: SSD
• Number of storage drives installed: 1
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2

Graphics

• Discrete graphics card: No
• On-board graphics card: Yes
• Discrete graphics card model: Not available
• On-board graphics card model: Intel UHD Graphics 770
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Network

• Ethernet LAN: Yes
• Wi-Fi: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Cabling technology: 10/100/1000Base-T(X)
• LAN controller: Intel WGI219LM
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Antenna type: 2x2
• Antenna design: Internal
• Bluetooth: Yes

Ports & interfaces

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4a
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• DC-in jack: Yes
• Number of rear USB ports: 4
• Number of front USB ports: 2
• Number of front audio ports: 1

Design

• Chassis type: Micro PC
• Product colour: Black
• Placement supported: Horizontal/Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Intel® vPro™ Platform Eligibility: Yes

Performance

• Product type: Mini PC
• Market positioning: Business
• Motherboard chipset: Intel Q870
• Audio chip: Realtek ALC3204
• Audio system: High Definition Audio
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Trial software: Activate Your Microsoft 365 For A 30 Day Trial

Power

• Power supply: 90 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50 / 60 Hz

Operational conditions

• Operating temperature (T-T): 10 - 35 °C
• Storage temperature (T-T): -40 - 65 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 5 - 95%
• Operating altitude: -15.2 - 3048 m
• Non-operating altitude: -15.2 - 10668 m
• Operating vibration: 0.26 G
• Non-operating vibration: 1.37 G
• Operating shock: 40 G
• Non-operating shock: 105 G

Sustainability

• Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold

Weight & dimensions

• Width: 36 mm
• Depth: 178 mm
• Height: 182 mm
• Weight: 1.16 kg

Packaging content

• Mouse included on selected markets: Dell Optical Mouse-MS116 - Black
• Keyboard included on selected markets: Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Carbon footprint

• Total carbon footprint (kg of CO2e): 77.6
• Carbon emissions, manufacturing (kg of CO2e): 41.516
• Carbon emissions, logistics (kg of CO2e): 2.1728
• Carbon emissions, energy usage (kg of CO2e): 33.4456
• Carbon emissions, end-of-life (kg of CO2e): 0.54
• PAIA version: GaBi version 1, 2024

Display

• Display included: No
