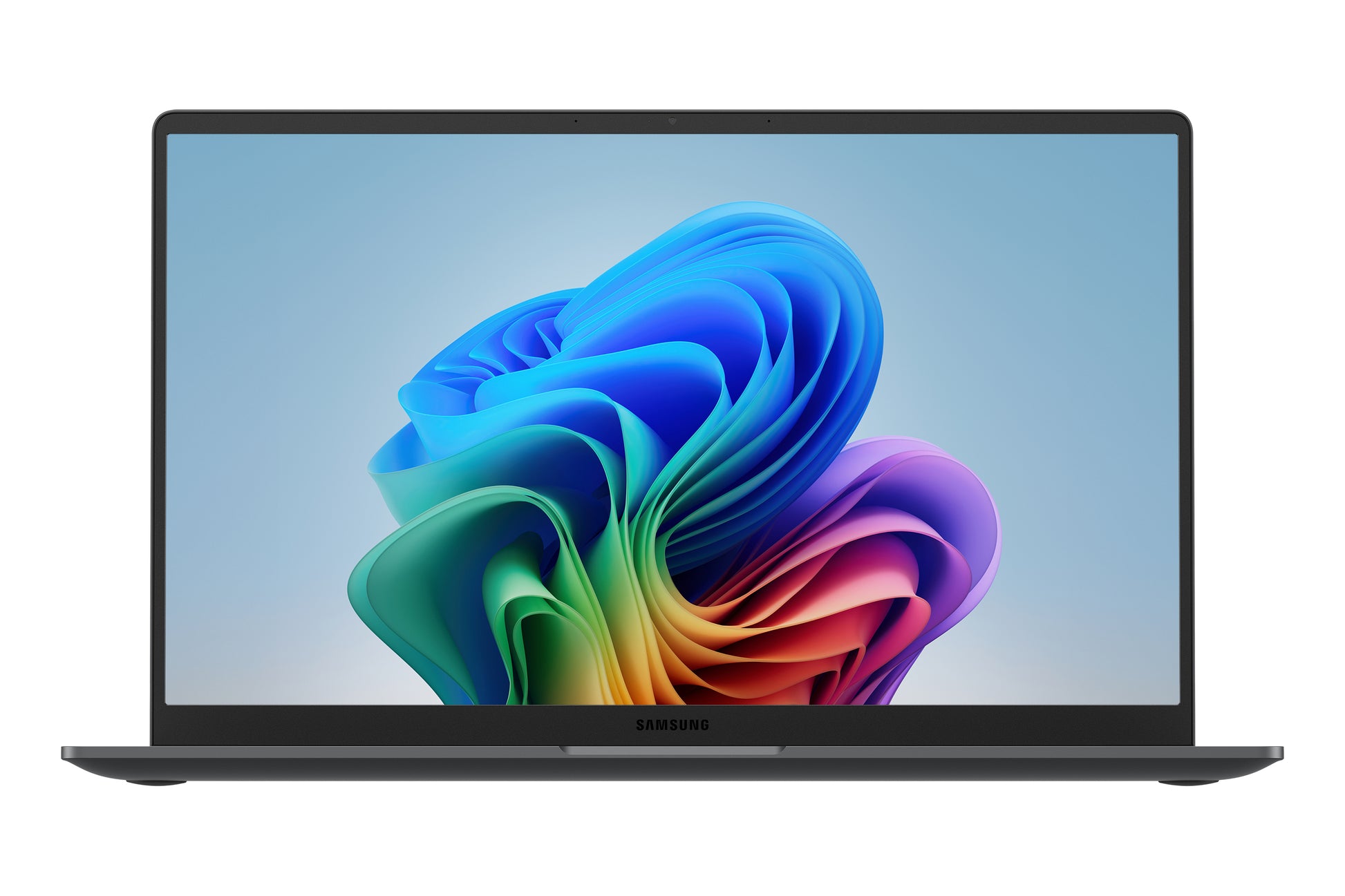

Samsung Galaxy Book5 NP754XHD-CG2UK laptop Intel Core Ultra 7 255U 39.6 cm (15.6") Full HD 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro UK English Grey

Design

• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell

Display

• Display diagonal: 39.6 cm (15.6")
• Display resolution: 1920 x 1080 pixels
• Touchscreen: No
• HD type: Full HD
• Panel type: IPS
• Anti-glare screen: Yes
• Display brightness: 370 cd/m²
• Maximum display brightness (HDR): 500 cd/m²
• Pixel density: 141 ppi
• Maximum refresh rate: 60 Hz

Processor

• Processor family: Intel Core Ultra 7
• Processor manufacturer: Intel
• Processor model: 255U
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 12
• Processor threads: 14
• Processor boost frequency: 5.2 GHz
• Performance cores: 2
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.2 GHz
• Efficient-core Max Turbo Frequency: 4.2 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
• Performance-core base frequency: 2 GHz
• Efficient-core base frequency: 1.7 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Processor cache: 12 MB
• Processor base power: 15 W
• Maximum turbo power: 57 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

• Internal memory: 16 GB
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board

Storage

• Total storage capacity: 512 GB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• NVMe: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)

Graphics

• On-board graphics card: Yes
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board graphics card model: Intel Graphics
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Graphics
• On-board graphics card 4K support: Yes
• On-board graphics card 6K support: Yes
• On-board graphics card 8K support: Yes
• Graphics card Open GL support: Yes

Audio

• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• HDMI ports quantity: 1
• USB4 Gen 2x2 ports quantity: 2
• Combo headphone/mic port: Yes

Performance

• Accelerometer: Yes
• Gyroscope: Yes
• Hall sensor: Yes

Keyboard

• Numeric keypad: Yes
• Pointing device: Touchpad
• Island-style keyboard: Yes
• Keyboard layout: QWERTY
• Keyboard language: UK English

Software

• Operating system installed: Windows 11 Pro

Battery

• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Removable battery: No
• Battery weight: 259 g

Power

• AC adapter power: 65 W

Security

• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: No
• Trusted Platform Module (TPM): Yes

Weight & dimensions

• Weight: 1.46 kg
• Width: 355.4 mm
• Depth: 228 mm
• Height: 13.7 mm

Packaging data

• Package width: 471 mm
• Package depth: 278 mm
• Package height: 49 mm
• Package weight: 2.33 kg

Packaging content

• AC adapter included: Yes

Logistics data

• Harmonized System (HS) code: 8471300000
