CyberPower OLS10000ERTXL3U uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W 1 AC outlet(s)

CyberPower OLS10000ERTXL3U uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W 1 AC outlet(s)

£2,336.99
£2,336.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details

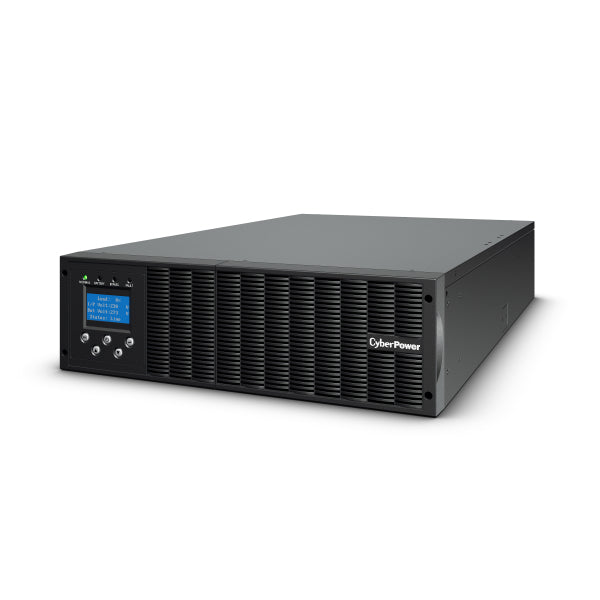

CyberPower OLS10000ERTXL3U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.

    Features

    • UPS topology: Double-conversion (Online)
    • Output power capacity: 10 kVA
    • Output power: 9000 W
    • Waveform: Pure sine
    • Input operation voltage (min): 110 V
    • Input operation voltage (max): 276 V
    • Input frequency: 50/60 Hz
    • Output operation voltage (min): 208 V
    • Output operation voltage (max): 240 V
    • Output frequency: 50/60 Hz
    • Output voltage regulation: 0.1%
    • Surge energy rating: 445 J
    • Number of output phases: 1
    • Efficiency (ECO mode): 96%
    • Power factor: 0.9
    • Input power factor: 0.99
    • Crest factor: 3:1
    • ECO mode: Yes

    Ports & interfaces

    • AC outlets quantity: 1 AC outlet(s)
    • USB port: Yes
    • Serial interface: Yes
    • Serial interface type: RS-232
    • RS-232 ports: 1

    Design

    • Form factor: Rackmount/Tower
    • Product colour: Black
    • Housing material: Metal
    • Display type: LCD
    • LED indicators: Yes

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -15 - 45 °C
    • Operating relative humidity (H-H): 0 - 90%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 2000 m
    • Non-operating altitude: 0 - 15000 m

    Certificates

    • Compliance certificates: RoHS
    • Certification: CE

    Weight & dimensions

    • Width: 438 mm
    • Depth: 680 mm
    • Height: 130.5 mm
    • Weight: 20 kg
