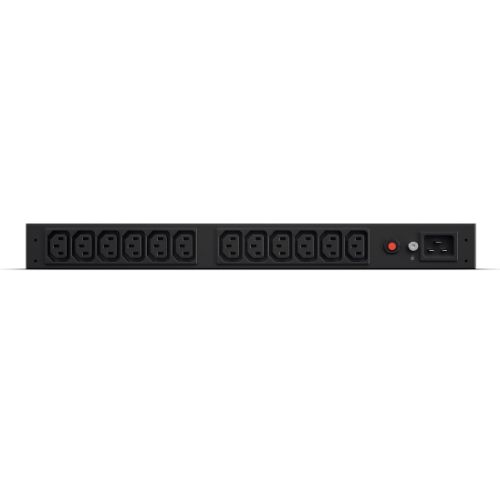

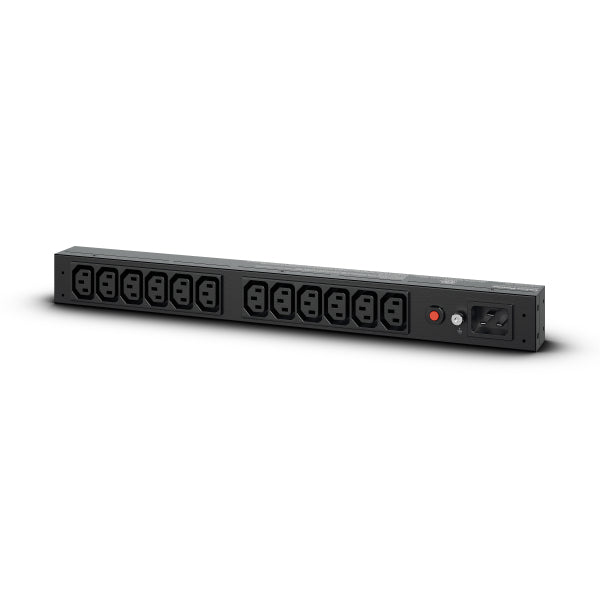

CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black

CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black

£92.99
£92.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord

    Design

    • PDU types: Basic
    • Rack capacity: 1U
    • Type: Single-phase
    • Mounting: Horizontal/Vertical
    • Housing material: Steel
    • Product colour: Black

    Ports & interfaces

    • AC outlets quantity: 12 AC outlet(s)
    • AC outlet types: C13 coupler
    • Power plug: C20 coupler

    Features

    • Cable length: 3.05 m

    Power

    • Nominal input voltage: 200 - 240 V
    • Maximum current: 16 A
    • AC input frequency: 50 / 60 Hz
    • Nominal output voltage: 200 - 240 V
    • Power protection features: Overload
    • Surge protection: Yes
    • Circuit breaker: Yes

    Certificates

    • Compliance certificates: RoHS
    • Certification: UL60950_1 ETL, CSA C22.2

    Operational conditions

    • Operating temperature (T-T): 0 - 35 °C
    • Storage temperature (T-T): -15 - 45 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 3000 m
    • Non-operating altitude: 0 - 15000 m
    • Operating temperature (T-T): 32 - 95 °F

    Weight & dimensions

    • Width: 445 mm
    • Depth: 38.1 mm
    • Height: 44.5 mm
    • Weight: 900 g

    Packaging content

    • Packaging content: PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit

    Packaging data

    • Package weight: 15 kg
    • Package width: 530 mm
    • Package depth: 330 mm
    • Package height: 233 mm

    Logistics data

    • Warranty period: 2 year(s)

    Sustainability

    • Sustainability compliance: Yes

    Weight & dimensions

    • Weight (imperial): 0.907 kg (2 lbs)
    • Dimensions (W x D x H) (imperial): 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
