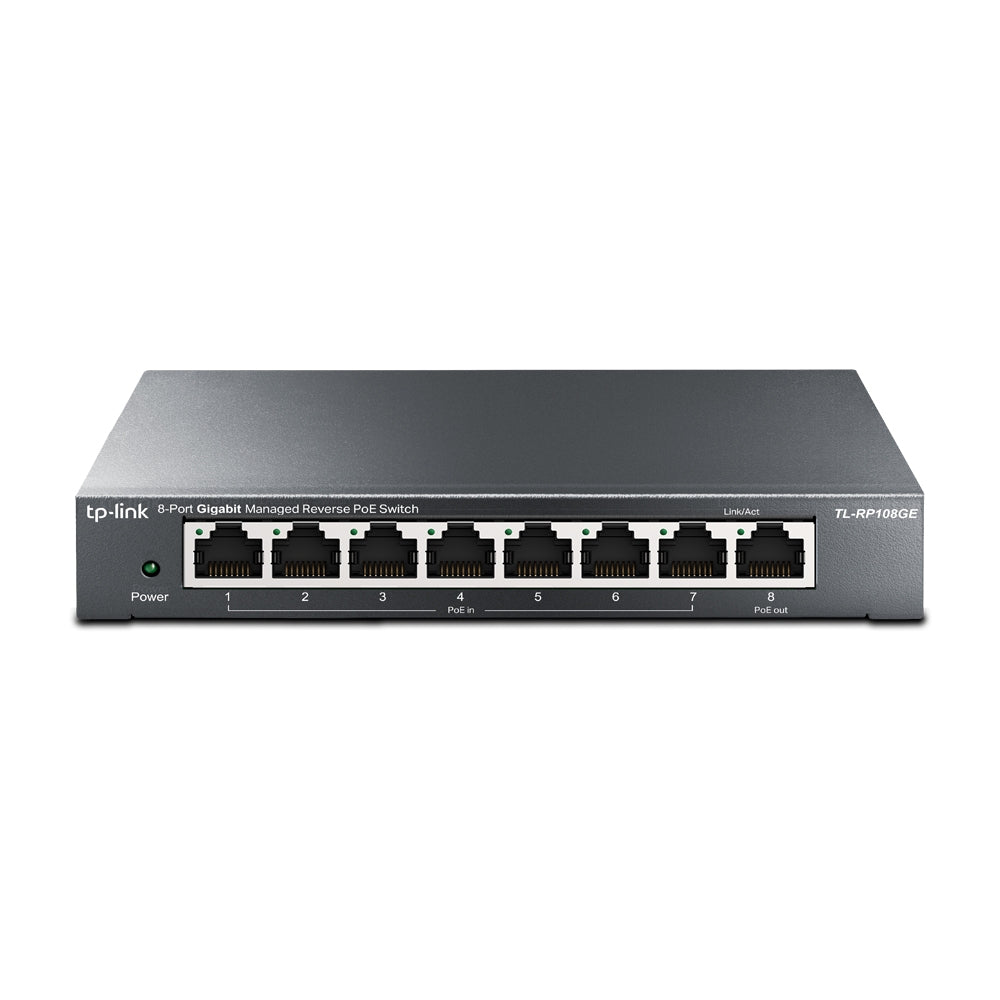

TP-Link 8-Port Gigabit Managed Reverse PoE Switch

TP-Link 8-Port Gigabit Managed Reverse PoE Switch

£35.99
£35.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.

    Management features

    • Switch type: Managed
    • Switch layer: L2
    • Quality of Service (QoS) support: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0

    Network

    • Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
    • 10G support: No
    • Port mirroring: Yes
    • Full duplex: Yes
    • Half duplex: Yes
    • Broadcast storm control: Yes
    • Rate limiting: Yes
    • VLAN support: Yes
    • Virtual LAN features: Port-based VLAN, Tagged VLAN
    • Number of VLANs: 4000

    Data transmission

    • MAC address table: 4000 entries
    • Switching capacity: 16 Gbit/s
    • Forwarding rate: 11.9 Mpps
    • Store-and-forward: Yes
    • Static route: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 16000

    Security

    • IGMP snooping: Yes
    • Loop protection: Yes

    Design

    • Product colour: Black
    • Reset button: Yes
    • LED indicators: Yes

    Power

    • Power source: DC
    • Power supply included: No
    • Input current: 1 A
    • Input voltage: 5 V

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) type supported: Passive PoE
    • Power over Ethernet (PoE) ports quantity: 8

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Weight & dimensions

    • Width: 158 mm
    • Depth: 99.1 mm
    • Height: 25 mm

    Certificates

    • Certification: FCC, CE, RoHS

    Logistics data

    • Harmonized System (HS) code: 85176990
