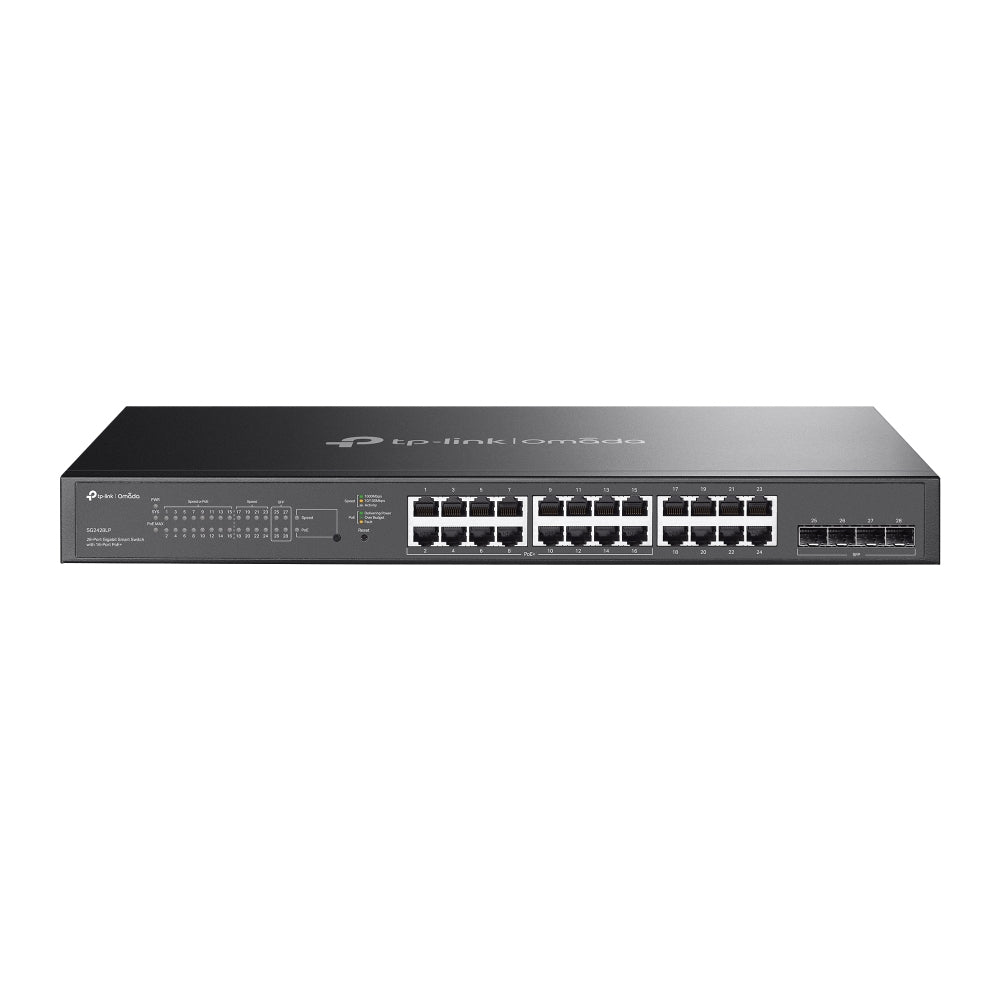

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

£279.99
£279.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

    Management features

    • Switch type: Managed
    • Switch layer: L2/L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 24
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • SFP module slots quantity: 4

    Network

    • Networking standards: IEEE 802.3af, IEEE 802.3at
    • 10G support: No
    • Flow control support: Yes
    • Link aggregation: Yes
    • Spanning tree protocol: Yes
    • Auto-negotiation: Yes
    • VLAN support: Yes
    • Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
    • Number of VLANs: 4000

    Data transmission

    • MAC address table: 8000 entries
    • Switching capacity: 56 Gbit/s
    • Forwarding rate: 41.66 Mpps
    • Jumbo frames support: Yes
    • Jumbo frames: 9000
    • Packet buffer memory: 4.1 MB

    Security

    • DHCP features: DHCP relay, DHCP server
    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • MAC address filtering: Yes
    • Password protection: Yes

    Multicast features

    • Multicast support: Yes

    Design

    • Rack mounting: Yes
    • Product colour: Grey
    • LED indicators: Yes

    Performance

    • Fanless: Yes

    Power

    • Power source: AC/PoE
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 184.7 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 16
    • Power over Ethernet (PoE) power per port: 30 W
    • Total Power over Ethernet (PoE) budget: 150 W

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 628 BTU/h

    Weight & dimensions

    • Width: 440 mm
    • Depth: 220 mm
    • Height: 44 mm
