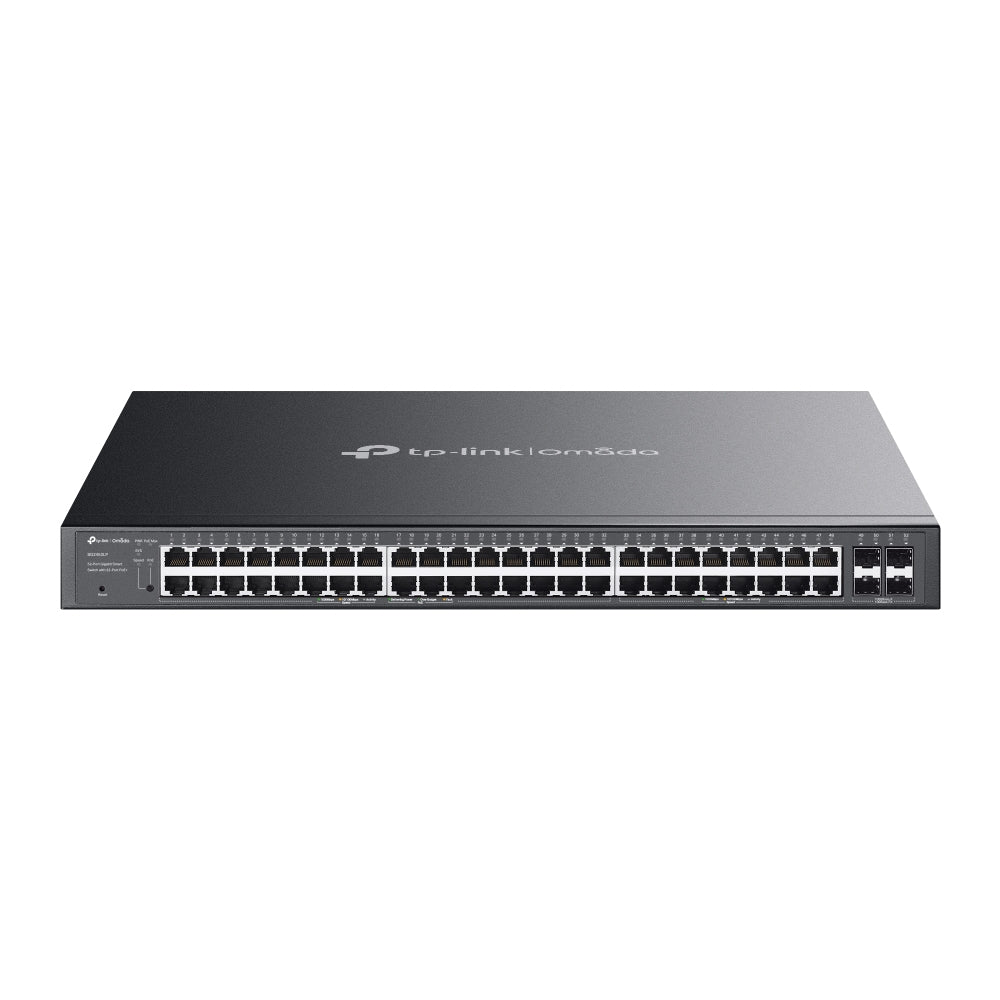

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

£586.99
£586.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

    Management features

    • Switch type: Managed
    • Switch layer: L2/L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes
    • MIB support: Y

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 48
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • SFP module slots quantity: 4
    • Power connector: AC-in jack

    Network

    • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
    • 10G support: No
    • Port mirroring: Yes
    • IP routing: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Auto MDI/MDI-X: Yes
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • Active link detection: Yes
    • VLAN support: Yes

    Data transmission

    • MAC address table: 16000 entries
    • Switching capacity: 104 Gbit/s
    • Forwarding rate: 77.37 Mpps
    • Static route: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 9000

    Security

    • DHCP features: DHCP relay, DHCP server
    • IGMP snooping: Yes
    • Security algorithms: SNMP, SNMPv2, SNMPv3
    • MAC address filtering: Yes
    • SSH/SSL support: Yes
    • Loop protection: Yes
    • Authentication type: RADIUS

    Design

    • Rack mounting: Yes
    • Form factor: 1U
    • Product colour: Black
    • LED indicators: Yes

    Power

    • Power source: AC
    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 304.5 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 32
    • Power over Ethernet (PoE) power per port: 30 W
    • Total Power over Ethernet (PoE) budget: 230 W

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 1035.4 BTU/h

    Weight & dimensions

    • Width: 440 mm
    • Depth: 330 mm
    • Height: 44 mm
