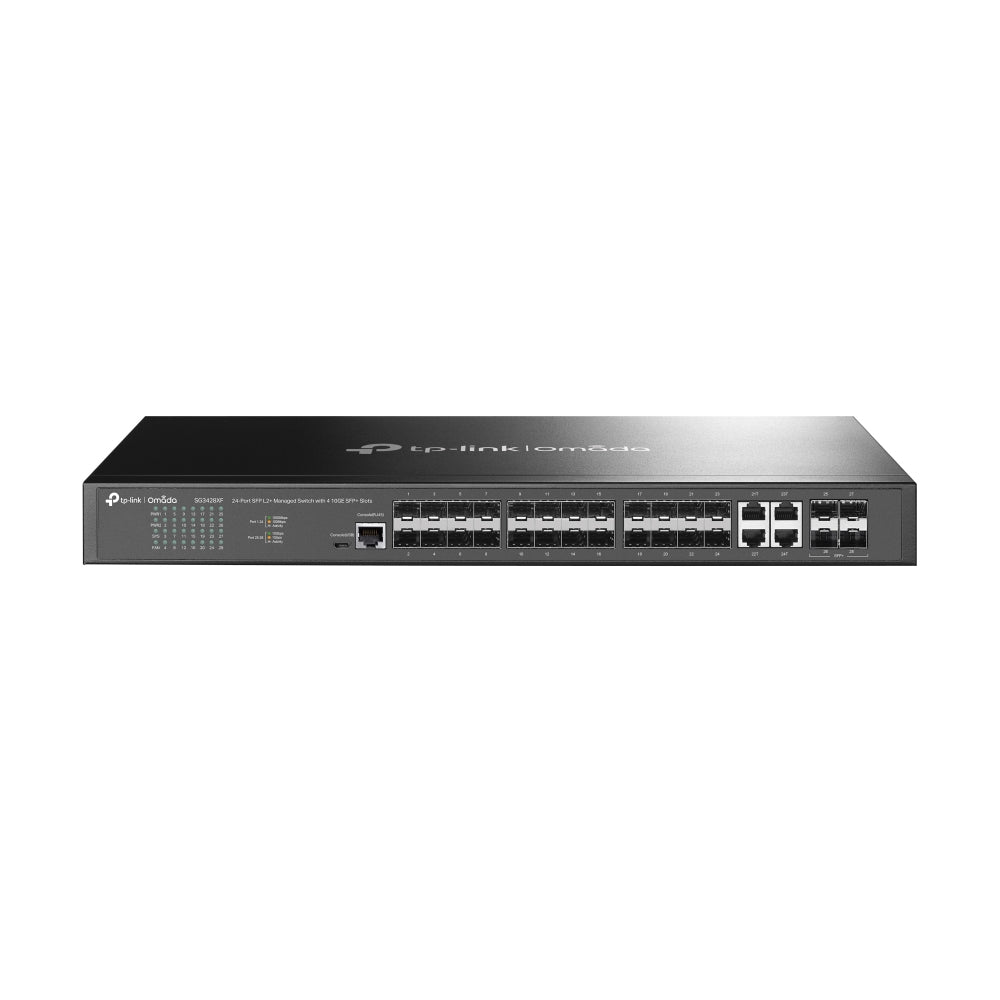

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

£568.99
£568.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

    Management features

    • Switch type: Managed
    • Switch layer: L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes
    • MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 0
    • Basic switching RJ-45 Ethernet ports type: No
    • Combo SFP ports quantity: 4
    • SFP+ module slots quantity: 4
    • Fiber ports quantity: 20
    • Fiber optic connector: SFP, SFP+
    • Console port: RJ-45/Micro-USB
    • Power connector: AC-in jack

    Network

    • Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • 10G support: Yes
    • Port mirroring: Yes
    • IP routing: Yes
    • Policy-based routing: Yes
    • Routing entries: 512
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Rate limiting: Yes
    • Spanning tree protocol: Yes
    • Head-of-line (HOL) blocking: Yes
    • Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
    • Active link detection: Yes
    • IPv4 routes: 48
    • IPv6 routes: 48
    • VLAN support: Yes
    • Virtual LAN features: Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
    • Number of VLANs: 4000

    Data transmission

    • MAC address table: 16000 entries
    • Switching capacity: 128 Gbit/s
    • Forwarding rate: 95.23 Mpps
    • Store-and-forward: Yes
    • Static route: Yes
    • Number of static routes: 48
    • Jumbo frames support: Yes
    • Jumbo frames: 9000
    • Packet buffer memory: 12 MB

    Security

    • DHCP features: DHCP client, DHCP relay, DHCP server
    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • IGMP proxy: Yes
    • MAC address filtering: Yes
    • SSH/SSL support: Yes
    • Loop protection: Yes
    • BPDU filtering/protection: Yes
    • IP-MAC-Port binding: Yes
    • Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
    • Password protection: Yes
    • Authentication type: AAA, RADIUS, TACACS+
    • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

    Multicast features

    • Multicast support: Yes
    • Multicast Listener Discovery (MLD) snooping: Y

    Protocols

    • Management protocols: SNMPv1/v2c/v3, SNTP
    • GARP VLAN Registration Protocol (GVRP): Yes
    • IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

    Design

    • Rack mounting: Yes
    • Form factor: 1U
    • Product colour: Black
    • LED indicators: Yes
    • Number of fans: 1 fan(s)

    Power

    • Power source: AC
    • Power supply included: Yes
    • Redundant power supply (RPS) support: Yes
    • Number of power supply units: 2
    • Power consumption (max): 35.7 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): No

    Operational conditions

    • Operating temperature (T-T): 0 - 45 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 121.81 BTU/h

    Weight & dimensions

    • Width: 440 mm
    • Depth: 220 mm
    • Height: 44 mm

    Packaging content

    • Cables included: AC
    • Manual: Yes
    • Rack mount kit: Yes
