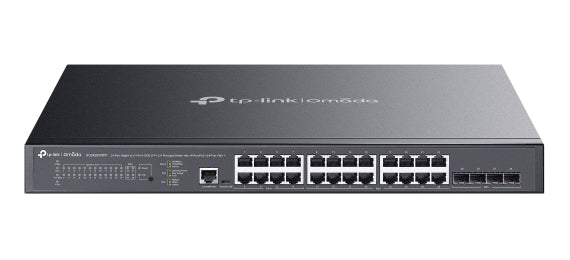

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£670.99
£670.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Empowering the High-Power Devices with Gigabit PoE++ Ports

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

    Management features

    • Switch type: Managed
    • Switch layer: L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 24
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • SFP+ module slots quantity: 4
    • Console port: RJ-45/Micro-USB
    • Power connector: AC-in jack

    Network

    • Networking standards: IEEE 802.3af, IEEE 802.3at
    • 10G support: Yes
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Rate limiting: Yes
    • Spanning tree protocol: Yes
    • Head-of-line (HOL) blocking: Yes
    • VLAN support: Yes

    Data transmission

    • MAC address table: 16000 entries
    • Switching capacity: 128 Gbit/s
    • Forwarding rate: 95.23 Mpps
    • Store-and-forward: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 9000
    • Packet buffer memory: 12 MB

    Security

    • DHCP features: DHCP client, DHCP relay, DHCP server
    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • MAC address filtering: Yes
    • Static port security: Yes
    • SSH/SSL support: Yes
    • BPDU filtering/protection: Yes
    • IP-MAC-Port binding: Yes
    • Authentication: Auto VLAN, Guest VLAN

    Multicast features

    • Multicast support: Yes

    Design

    • Rack mounting: Yes
    • Form factor: 1U
    • Product colour: Black
    • Reset button: Yes
    • LED indicators: Yes
    • Number of fans: 3 fan(s)

    Power

    • Power source: AC
    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 486.2 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 16
    • Power over Ethernet 4PPoE (PoE++) ports quantity: 8
    • Power over Ethernet (PoE) power per port: 30 W
    • Total Power over Ethernet (PoE) budget: 500 W

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 1658.78 BTU/h

    Weight & dimensions

    • Width: 440 mm
    • Depth: 330 mm
    • Height: 44 mm

    Packaging content

    • Cables included: AC
    • Quick start guide: Yes

    Certificates

    • Certification: CE, FCC, RoHS
