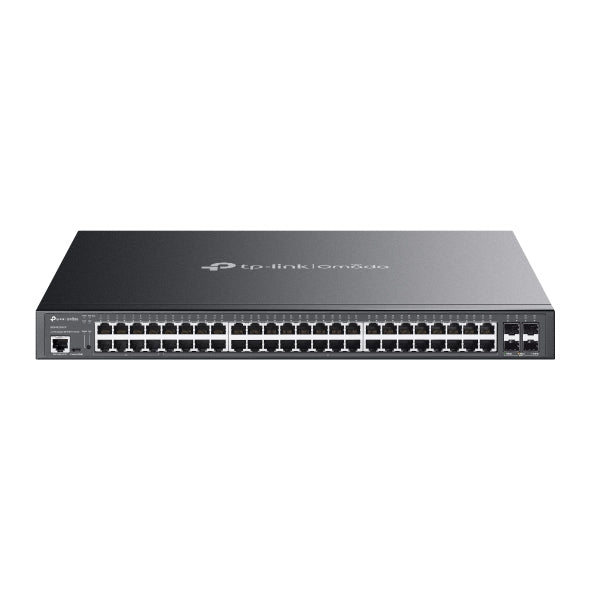

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Management features

• Switch type: Managed
• Switch layer: L2+
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Cloud-managed: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Console port: RJ-45/Micro-USB
• Power connector: AC-in jack

Network

• Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
• 10G support: Yes
• Port mirroring: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Broadcast storm control: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• Head-of-line (HOL) blocking: Yes
• VLAN support: Yes

Data transmission

• MAC address table: 16000 entries
• Switching capacity: 176 Gbit/s
• Forwarding rate: 130.9 Mpps
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 12 MB

Security

• DHCP features: DHCP client, DHCP relay, DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• MAC address filtering: Yes
• Static port security: Yes
• SSH/SSL support: Yes
• BPDU filtering/protection: Yes
• IP-MAC-Port binding: Yes
• Authentication: Auto VLAN, Guest VLAN

Multicast features

• Multicast support: Yes

Design

• Rack mounting: Yes
• Form factor: 1U
• Product colour: Black
• Reset button: Yes
• LED indicators: Yes
• Number of fans: 3 fan(s)

Power

• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (max): 635.7 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 40
• Power over Ethernet 4PPoE (PoE++) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 750 W

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 2169.2 BTU/h

Weight & dimensions

• Width: 440 mm
• Depth: 330 mm
• Height: 44 mm

Packaging content

• Cables included: AC
• Quick start guide: Yes

Certificates

• Certification: CE, FCC, RoHS
