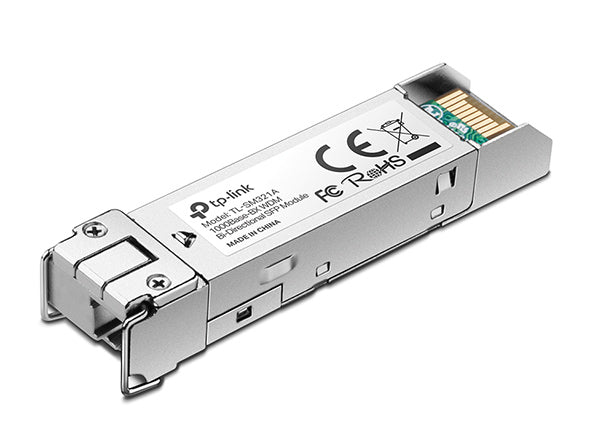

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module

£16.99
£16.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

    Performance

    • SFP transceiver type: Fiber optic
    • Maximum data transfer rate: 1250 Mbit/s
    • Interface type: SFP
    • Single-mode fiber (SMF) supported: Yes
    • Multi-mode fiber (MMF) supported: No
    • Fiber optic connector: LC
    • Fiber cable diameters supported (core/cladding): 9/125 µm
    • SFP transceiver standard: BX
    • Maximum transfer distance: 1000 m
    • Tx wavelength (max): 1310 nm
    • Rx wavelength (max): 1550 nm
    • Networking standards: IEEE 802.3z
    • Wavelength-division multiplexing (WDM): Yes

    Features

    • Product colour: Metallic

    Certificates

    • Compliance certificates: RoHS
    • Certification: FCC, CE

    Operational conditions

    • Operating temperature (T-T): 0 - 70 °C
    • Storage temperature (T-T): -40 - 80 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Weight & dimensions

    • Width: 55.4 mm
    • Depth: 14.6 mm
    • Height: 12.9 mm

    Packaging content

    • Quantity per pack: 1 pc(s)

    Packaging data

    • User guide: Yes
    • Package width: 81.5 mm
    • Package depth: 122.5 mm
    • Package height: 38.5 mm
    • Package weight: 60 g

    Logistics data

    • Harmonized System (HS) code: 85369010
