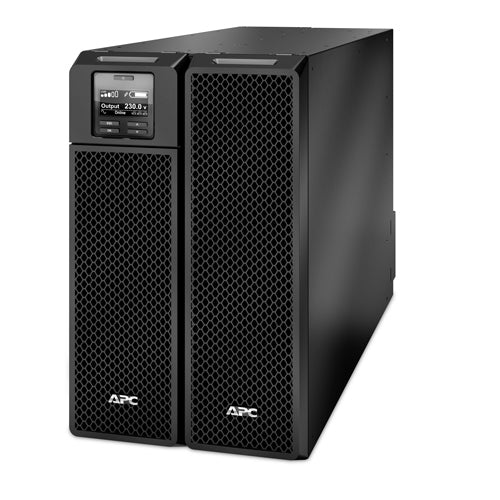

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

£9,148.99
£9,148.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

    Features

    • UPS topology: Double-conversion (Online)
    • Output power capacity: 10 kVA
    • Output power: 10000 W
    • Waveform: Sine
    • Input operation voltage (min): 100 V
    • Input operation voltage (max): 476 V
    • Input frequency: 40/70 Hz
    • Output operation voltage (min): 220 V
    • Output operation voltage (max): 240 V
    • Output frequency regulation: 50/60 Hz
    • Surge energy rating: 480 J
    • Number of output phases: 1
    • Efficiency: 94.6%
    • Crest factor: 3:1
    • Emergency Power Off (EPO): Yes
    • Noise level: 55 dB
    • Audible alarm(s): Yes
    • Auto-restart: Yes

    Ports & interfaces

    • AC outlet types: C13 coupler, C19 coupler
    • Power plug: Hardwire
    • AC outlets quantity: 10 AC outlet(s)
    • Number of output IEC jumpers: 3
    • USB port: Yes
    • Serial interface: Yes
    • Serial interface type: RJ-45
    • SmartSlot: Yes

    Battery

    • Battery technology: Sealed Lead Acid (VRLA)
    • Battery capacity: 1805 VAh
    • Typical backup time at full load: 3.8 min
    • Typical backup time at half load: 11.5 min
    • Battery life (max): 5 year(s)
    • Battery recharge time: 1.5 h
    • Hot-swap battery: Yes
    • Automatic battery test: Yes
    • Cold start: Yes

    Design

    • Form factor: Rackmount/Tower
    • Product colour: Black
    • LED indicators: Yes
    • International Protection (IP) code: IP20

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -15 - 45 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 3000 m
    • Non-operating altitude: 0 - 15000 m

    Certificates

    • Compliance certificates: RoHS
    • Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

    Packaging content

    • Cables included: USB cable
    • Quick installation guide: Yes

    Sustainability

    • Sustainability certificates: ENERGY STAR

    Weight & dimensions

    • Width: 263 mm
    • Depth: 715 mm
    • Height: 432 mm
    • Weight: 111.8 kg

    Packaging data

    • Temperature sensor: Yes
    • Warranty card: Yes
    • Software CD: Yes
    • Package width: 600 mm
    • Package depth: 1000 mm
    • Package height: 461 mm
    • Package weight: 126.8 kg

    Logistics data

    • Harmonized System (HS) code: 85078000
    • Total carbon footprint (kg of CO2e): 22851.99

    Other features

    • Interface: RJ-45 10/100 Base-T
    • Nominal output voltage: 230 V
    • Nominal input voltage: 230 V
    • Packaging content: Web/SNMP Management Card
