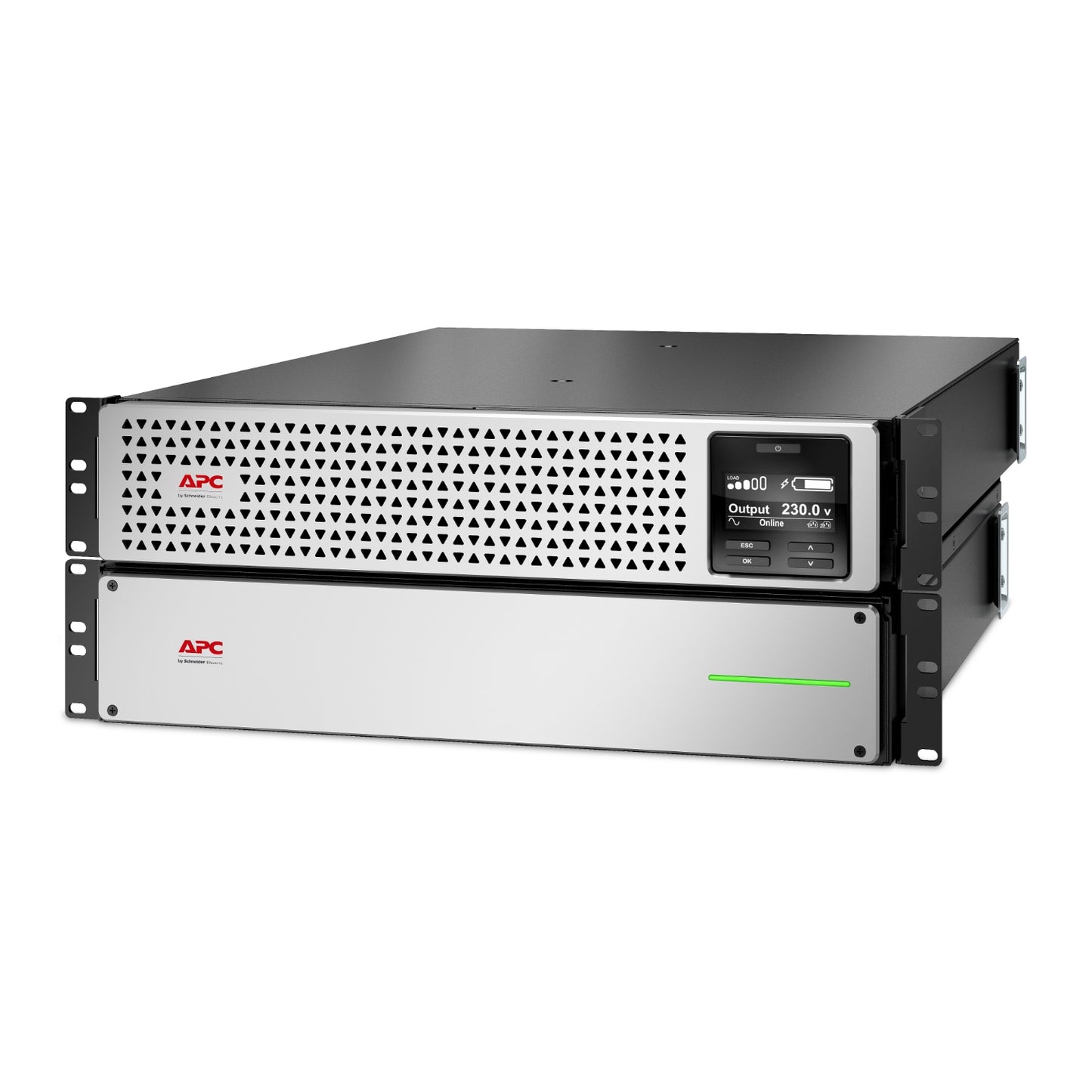

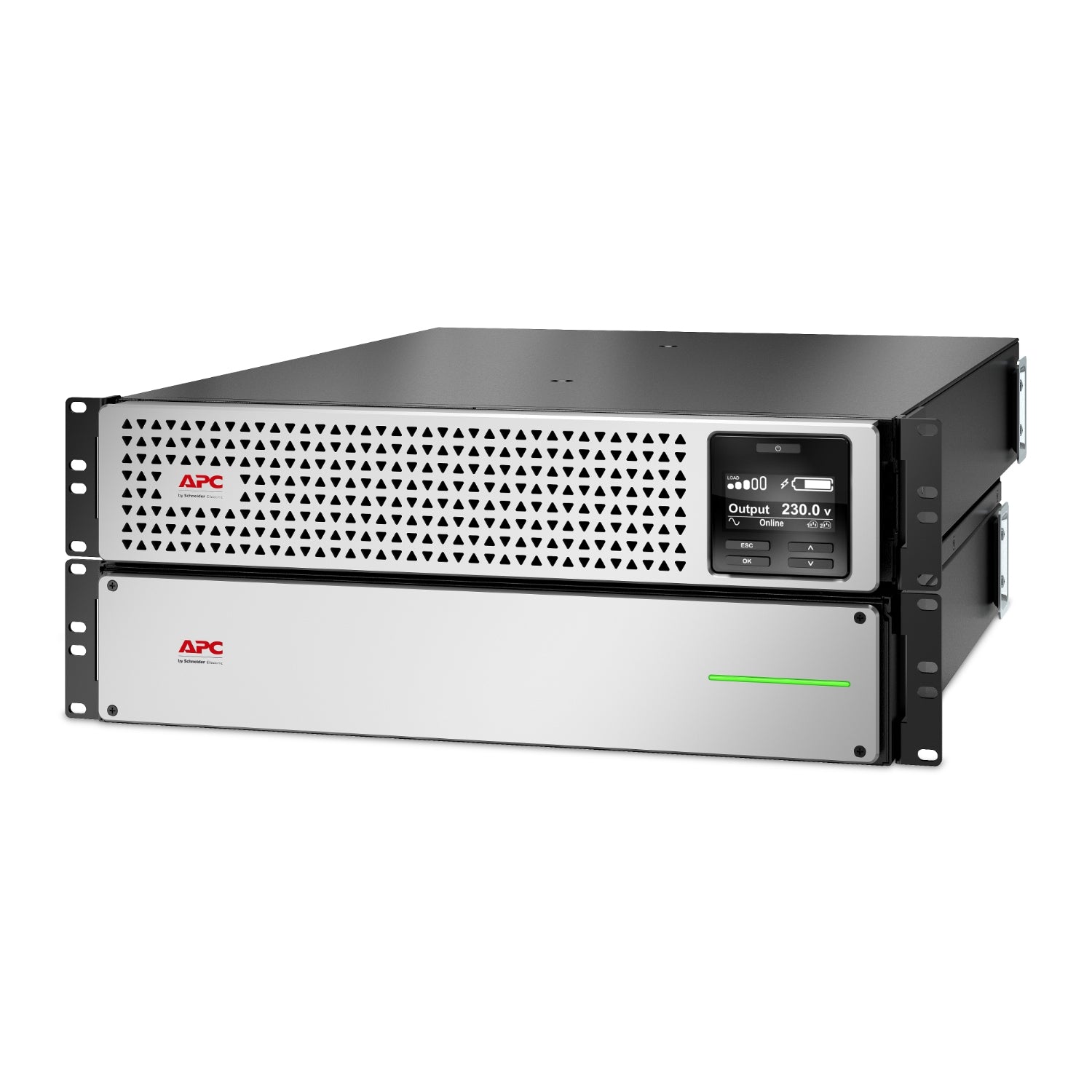

APC Smart-UPS On-Line, 2200VA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended long runtime, Rail kit included

APC Smart-UPS On-Line, 2200VA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended long runtime, Rail kit included

£3,482.99
£3,482.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
At 1980W/2200VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.

    Features

    • UPS topology: Double-conversion (Online)
    • Output power capacity: 2.2 kVA
    • Output power: 1980 W
    • Waveform: Sine
    • Input operation voltage (max): 230 V
    • Input frequency: 40 - 70 Hz
    • Output frequency: 50/60 Hz
    • Surge energy rating: 432 J
    • Crest factor: 3:1
    • Output voltage Total Harmonic Distortion (THD): 2%
    • Audible alarm(s): Yes

    Ports & interfaces

    • AC outlet types: C13 coupler, C19 coupler
    • AC outlets quantity: 8 AC outlet(s)

    Battery

    • Battery technology: Lithium-Ion (Li-Ion)
    • Battery voltage: 48 V
    • Battery life (max): 10 year(s)

    Design

    • Form factor: Rackmount/Tower
    • Product colour: Black, Silver
    • Rack capacity: 4U
    • Cable length: 1.83 m
    • International Protection (IP) code: IP20

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 50 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 3048 m

    Packaging content

    • Rack mount kit: Yes

    Sustainability

    • Sustainability certificates: Green Premium

    Weight & dimensions

    • Width: 432 mm
    • Depth: 639 mm
    • Height: 171 mm
    • Weight: 44.5 kg
