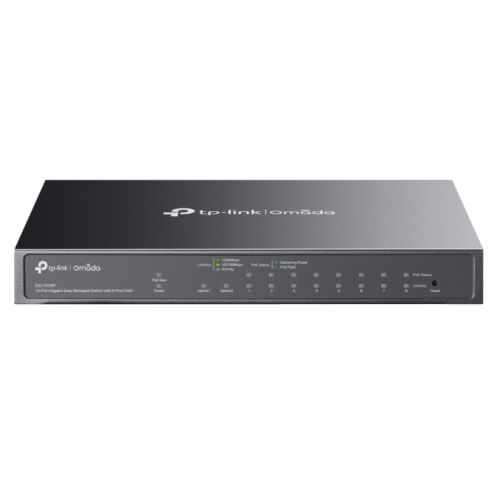

TP-LINK (ES210GMP) Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, SFP/RJ45 Combo Port, Metal Casing

TP-LINK (ES210GMP) Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, SFP/RJ45 Combo Port, Metal Casing

TP-LINK
View full details



Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

  • 8x Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 1x Gigabit RJ45 port, 1x Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design





Omada Cloud Essentials - Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
  • Lifetime Free Cloud without Any Additional Fees
  • Exists Entirely in the Cloud. No Hardware or Software Controller Needed
  • Cloud Centralized Management for Multiple Sites
  • Access Anytime via Omada App or Web
  • Easy Setup, Use, and Maintenance
  • Unlimited Management Scale
  • Zero-Touch Provisioning (ZTP) without Unboxing
  • Upgrade to Standard with a Seamless Subscription





Abundant Functions for Reliable Surveillance Networking
  • Transmission Distance up to 250m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery





Multiple Application Scenarios
  • Surveillance - Works with IP Cameras
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers







Description

Specification

  • Rackmountable: No
  • Managed: Yes
  • Number of Ports: 10
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: GB SFP
  • Interface(s): 8 x Gigabit PoE+ RJ45 (support 802.3at PoE+ and 802.3af PoE)
    1 x Gigabit RJ45
    1 x Gigabit SFP/RJ45 Combo
    Auto-Negotiation/Auto MDI/MDIX
  • PoE Ports (RJ45): "Standard: 802.3af PoE and 802.3at PoE+ compliant
    PoE Ports: 8 ports
    PoE Budget: 123W available for all PoE+ ports, 30W max per port
    PoE Auto Recovery
    Up to 250m PoE transmission distance"
  • Switching Capacity: 20 Gbps
  • Power Supply: DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
  • Dimensions: 209 x 126 x 26 mm
  • Transfer Method: Store-And-Forward
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 14.88 Mpps
  • Jumbo Frame: 15 KB
  • Additional Features: Fanless
    Durable metal casing
    Desktop/wall mounting design
    Physical security lock
  • Quality of Service: Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    Queue Weight Config
    Bandwidth Control
    Storm Control
  • Layer Features: L2 Features:
    Static Link Aggregation
    Loop Prevention / Loopback Detection
    Flow Control
    Mirroring
    Port Statistics
    802.1ab LLDP

    L2 Multicast:
    IGMP Snooping
  • VLAN: MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
  • Management: "Omada App:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Centralized Management:
    Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller

    Cloud Access:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Zero-Touch Provisioning:
    Requires the use of Omada Cloud-Based Controller"
  • .:
    Management Features:
    Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration
  • Environment: Operating Temperature: 0°C ~40°C
    Storage Temperature: -40°C ~70°C
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: ES210GMP
    Power Adapter
    Installation Guide
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 1.5800 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
