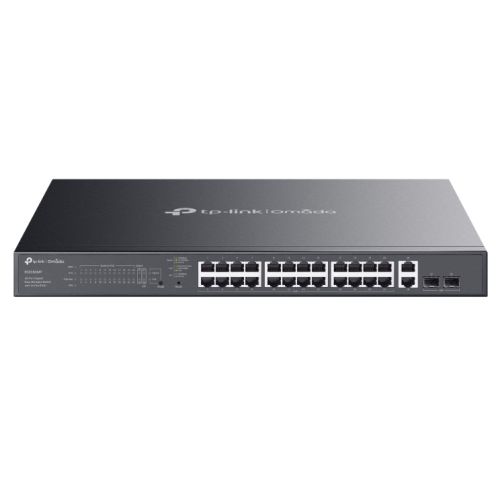

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

TP-LINK
View full details



Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

  • 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
  • 2x Gigabit SFP slots
  • 384W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design





Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
  • Lifetime Free Cloud without Any Additional Fees
  • Exists Entirely in the Cloud. No Hardware or Software Controller Needed
  • Cloud Centralized Management for Multiple Sites
  • Access Anytime via Omada App or Web
  • Easy Setup, Use, and Maintenance
  • Unlimited Management Scale
  • Zero-Touch Provisioning (ZTP) without Unboxing
  • Seamlessly Upgrade to Omada Cloud Standard with a Subscription





Abundant Functions for Reliable Surveillance Networking
  • Transmission Distance: up to 250 m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery





Multiple Application Scenarios
  • Surveillance - Works with IP Cameras
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers



Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 28
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: GB SFP
  • Interface(s): 24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+)
    2 x10/100/1000 Mbps RJ45
    2 x Gigabit SFP
    Auto-Negotiation/Auto MDI/MDIX
  • PoE Ports (RJ45): "Standard: 802.3af PoE and 802.3at PoE+ compliant
    PoE Ports: 24 ports
    PoE Budget: 384W available for all PoE+ ports, 30W max per port
    Fast PoE & Perpetual PoE
    PoE Auto Recovery
    Up to 250m PoE transmission distance"
  • Switching Capacity: 56 Gbps
  • Power Supply: "100–240V AC, 50/60Hz"
  • Dimensions: 440 x 330 x 44 mm
  • Transfer Method: Store-And-Forward
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 41.67 Mpps
    Packet Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
  • Additional Features: Durable Metal Casing
    Fan Quantity: 2
    Physical Security Lock
    Surge Protection: 6kV
    Supports plug-and-play
  • Quality of Service: Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    Queue Weight Config
    Bandwidth Control
    Storm Control
  • Layer Features: L2 Features:
    Static Link Aggregation
    Loop Prevention / Loopback Detection
    802.3x Flow Control
    Mirroring
    Port Statistics
    802.1ab LLDP

    L2 Multicast:
    IGMP Snooping
  • VLAN: MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
  • Management: "Omada App:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Centralized Management:
    Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller

    Cloud Access:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Zero-Touch Provisioning:
    Requires the use of Omada Cloud-Based Controller"
  • .:
    Management Features:
    Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration
  • Environment: Operating Temperature: -5°C ~ 45°C
    Storage Temperature: -40°C ~70°C
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: ES228GMP
    Power Cord
    Mounting Brackets
    Rubber Feet
    Screws
    Installation Guide
  • Package Type: Retail
  • Package Weight: 5.9200 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
