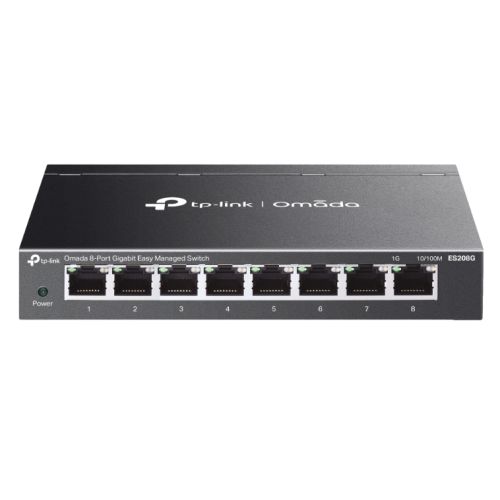

TP-LINK (ES208G) Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing

Omada 8-Port Gigabit Easy Managed Switch

• 8 x 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Description

Specification

• Rackmountable: No
• Managed: Yes
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 8 x 10/100/1000 Mbps RJ45 Ports
  Auto-Negotiation/Auto MDI/MDIX
• PoE Ports (RJ45): -
• Switching Capacity: 16 Gbps
• Power Supply: DC Power Adapter (Output: 5VDC / 0.6A)
• Dimensions: 158 x 101 x 25 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 11.9 Mpps
  Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB
• Additional Features: Durable Metal Casing
  Desktop/Wall Mount
  Physical Security Lock
  Surge Protection: 6kV
  Supports plug-and-play
• Quality of Service: Port-based/802.1p/DSCP QoS
  8 Priority Queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 Features:
  Static Link Aggregation
  Loop Prevention / Loopback Detection
  Flow Control
  Mirroring
  Port Statistics
  802.1ab LLDP

  L2 Multicast:
  IGMP Snooping
• VLAN: MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
• Management: "Omada App:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Centralized Management:
  Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller

  Cloud Access:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Zero-Touch Provisioning:
  Requires the use of Omada Cloud-Based Controller"
• .:
  Management Features:
  Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Unified Configuration
• Environment: Operating Temperature: -5°C ~45°C
  Storage Temperature: -40°C ~70°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: ES208G
  Power Adapter
  Rubber Feet
  Installation Guide
• Package Type: Retail
• Package Weight: 0.6500 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
