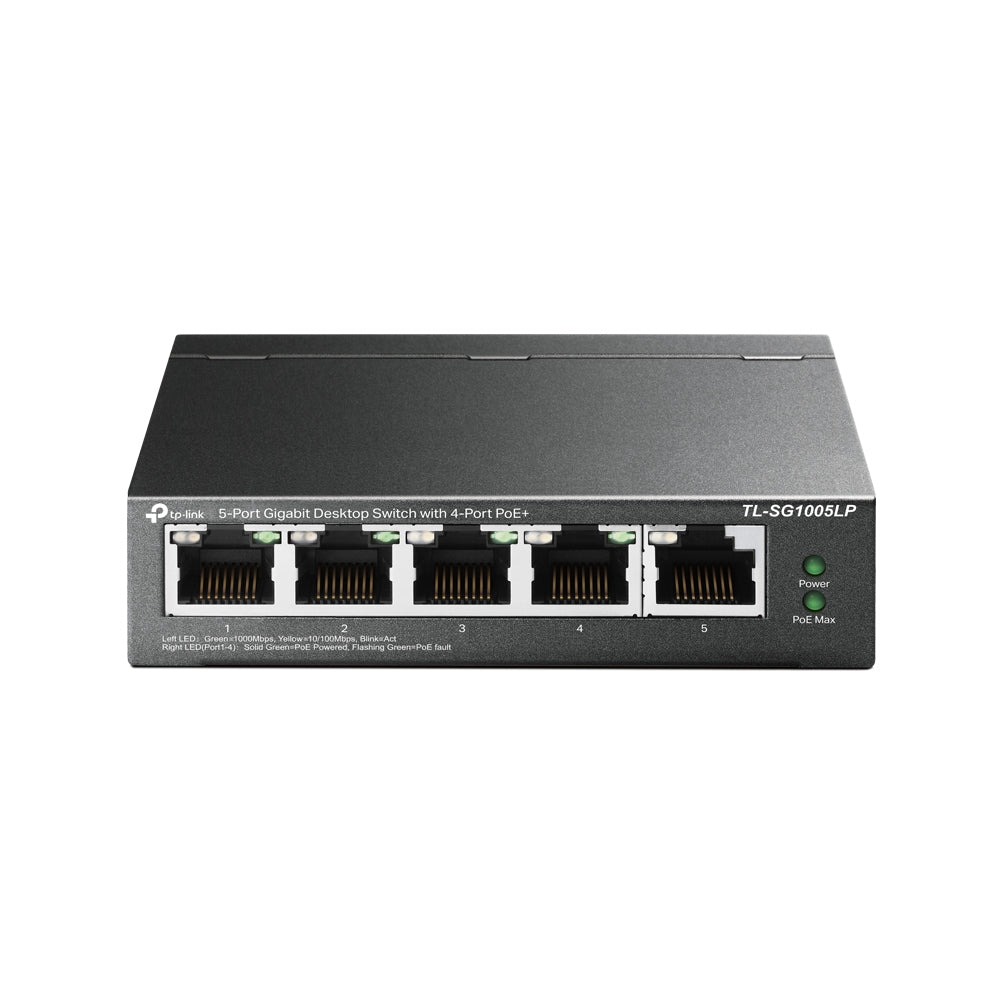

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£45.99
£45.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

    Management features

    • Switch type: Unmanaged
    • Quality of Service (QoS) support: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 5
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • Gigabit Ethernet (copper) ports quantity: 5

    Network

    • Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    • 10G support: No
    • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
    • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
    • Flow control support: Yes
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes
    • MAC address auto-learning supported: Yes
    • MAC address auto-aging supported: Yes

    Data transmission

    • MAC address table: 2000 entries
    • Switching capacity: 10 Gbit/s
    • Forwarding rate: 7.44 Mpps
    • Store-and-forward: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 16000

    Security

    • IGMP snooping: Yes

    Design

    • Rack mounting: No
    • Stackable: No
    • Product colour: Black
    • LED indicators: Yes
    • Wall mountable: Yes

    Performance

    • Maximum cable length: 100 m
    • Fanless: Yes

    Power

    • Power source: DC/PoE
    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • DC input voltage: 53.5 V
    • Input current: 0.81 A
    • Power consumption (max): 47.5 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 4
    • Total Power over Ethernet (PoE) budget: 40 W

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 161.98 BTU/h

    Weight & dimensions

    • Width: 99.8 mm
    • Depth: 98 mm
    • Height: 25 mm

    Packaging content

    • User guide: Yes

    Packaging data

    • Package type: Box
    • Package width: 131 mm
    • Package depth: 196 mm
    • Package height: 121 mm
    • Package weight: 730 g

    Certificates

    • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
    • Certification: FCC, CE, RoHS

    Logistics data

    • Harmonized System (HS) code: 85176990

    Sustainability

    • Sustainability compliance: Yes
