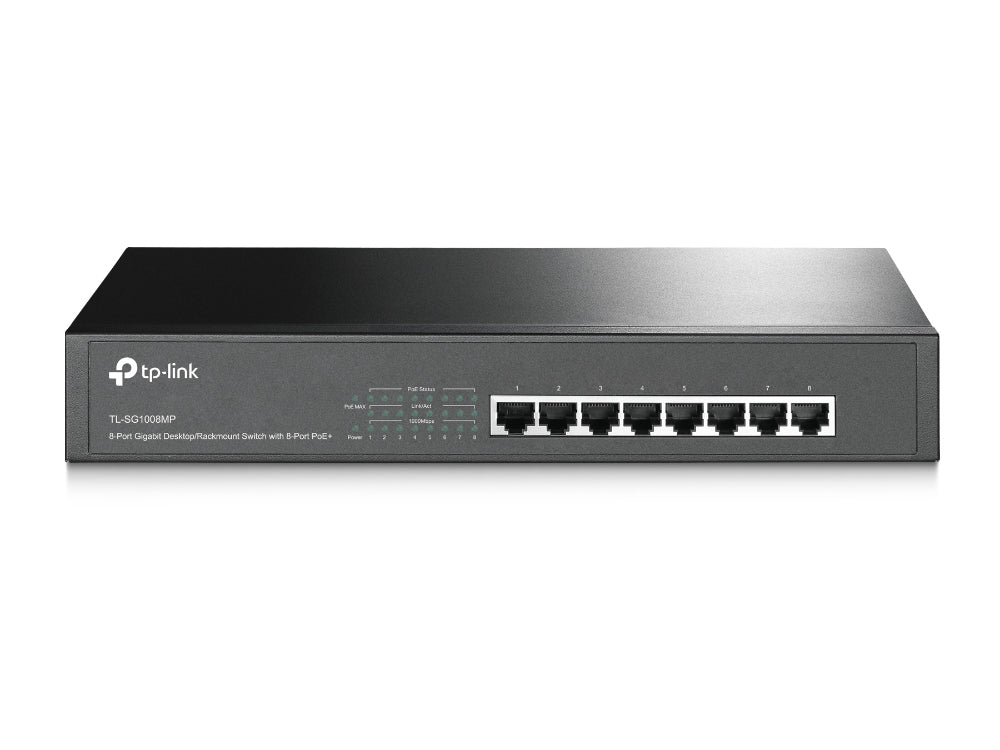

TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£109.99
£109.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

    Management features

    • Switch type: Unmanaged

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0

    Network

    • Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
    • 10G support: No
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes

    Data transmission

    • MAC address table: 4000 entries
    • Switching capacity: 16 Gbit/s
    • Store-and-forward: Yes
    • Packet buffer memory: 1.5 MB

    Design

    • Rack mounting: Yes
    • Product colour: Black
    • Number of fans: 1 fan(s)

    Performance

    • Mean time between failures (MTBF): 1 h
    • MTBF (PoE): 1 h
    • Commodity Classification Automated Tracking System (CCATS): 11
    • Minimum system requirements: 1

    Power

    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50 - 60 Hz
    • Power consumption (typical): 140.1 W
    • Power consumption (max): 144.4 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 8

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 492.6 BTU/h

    Weight & dimensions

    • Width: 294 mm
    • Depth: 180 mm
    • Height: 44 mm

    Packaging content

    • Cables included: AC
    • User guide: Yes
    • Rack mount kit: Yes

    Technical details

    • Shipping (inner) case height: 1 mm
    • Shipping (inner) case width: 1 mm
    • Shipping (inner) case length: 1 mm
    • Shipping (inner) case net weight: 1 g
    • Products per shipping (inner) case: 1 pc(s)
    • Master (outer) cases per pallet layer: 1 pc(s)
    • Layers per pallet (air): 1 pc(s)
    • Layers per pallet (sea): 1 pc(s)
    • Pallet gross weight (air): 1 g
    • Master (outer) cases per pallet (air): 11 pc(s)
    • Products per pallet (air): 1 pc(s)
    • Pallet gross length: 1 mm
    • Pallet gross width: 1 mm
    • Pallet height (air): 1 mm
    • Pallet gross weight (sea): 1 g
    • Master (outer) cases per pallet (sea): 1 pc(s)
    • Products per pallet (sea): 11 pc(s)
    • Pallet height (sea): 1 mm
    • Shipping (inner) case gross weight: 1 g

    Certificates

    • Certification: FCC, CE, RoHS

    Logistics data

    • Harmonized System (HS) code: 85176990
