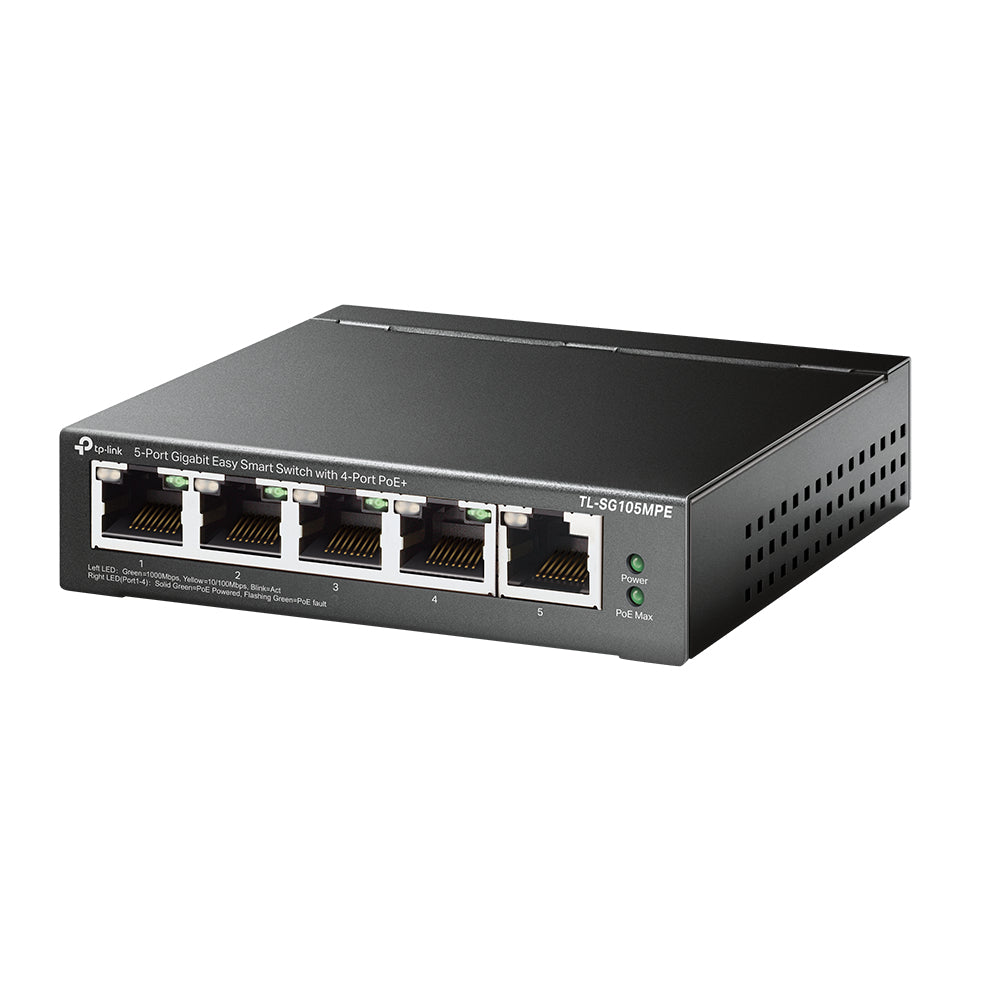

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Management features

• Switch layer: L2
• Web-based management: Yes

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 0
• Installed SFP+ modules quantity: 0

Network

• Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• 10G support: No
• Port mirroring: Yes
• Broadcast storm control: Yes
• Rate limiting: Yes

Data transmission

• MAC address table: 2000 entries
• Switching capacity: 10 Gbit/s
• Forwarding rate: 7.44 Mpps
• Static route: Yes
• Jumbo frames support: Yes
• Jumbo frames: 16

Security

• IGMP snooping: Yes
• Loop protection: Yes

Design

• Rack mounting: No
• Product colour: Black

Power

• Power source: DC/PoE
• Power supply included: Yes
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• DC input voltage: 53.5 V
• Power consumption (max): 137.01 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

• Width: 99.8 mm
• Depth: 98 mm
• Height: 25 mm

Packaging content

• Cables included: LAN (RJ-45)

Packaging data

• Package width: 250 mm
• Package depth: 528 mm
• Package height: 80 mm
• Package weight: 2.76 kg
